Forums >> General Discussion >> Revit Project Management >> import dwg surfaces into Revit

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Mar 5, 2015 at 12:02:05 PM | import dwg surfaces into Revit

#1

niemants


active

Joined: Thu, Mar 5, 2015
0 Posts
No Rating


I have read a lot about it, but I can't really find what I want.The idea is: I have got some shapes from an architect to build a facade, a curtain wall for a house. The surfaces are all triangles in different directions. I would like to import these surfaces (dwg) into my Revit-file and then use them to build a curtainwall on them.

I can get my dwg-file imported, I can clean it with the visibility and layers. But I cannot use this surfaces. They are just objects in my Revitfile. If I extrude them, It becomes a projection on my floorlevel.

I hope somebody can help me,

Thanks


This user is offline



Thu, Mar 5, 2015 at 1:15:02 PM | import dwg surfaces into Revit

#2

rbcameron2


active
rbcameron2 Avatar

Joined: Sun, Oct 19, 2008
101 Posts
4 Stars: 25 Votes


Got a picture?

Are you able to recreate the form in Dynamo or in Revit itself?  Otherwise, I've never got CAD to work as a surface host for anything in Revit.


-----------------------------------

RB Cameron

3D Medical Equipment

Download Revit Healthcare Models Now

Download Other Revit + 3dsMax Models Here

This user is offline

View Website

Fri, Mar 6, 2015 at 1:59:58 AM | import dwg surfaces into Revit

#3

niemants


active

Joined: Thu, Mar 5, 2015
0 Posts
No Rating


Hi,

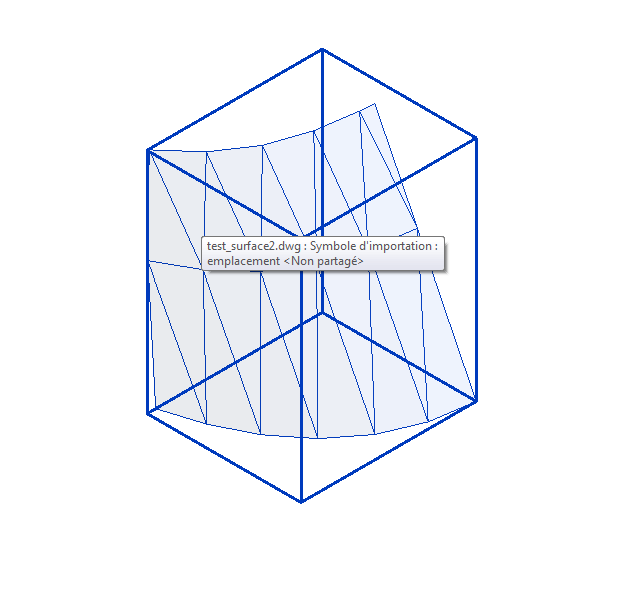

Here is the picture of a part of it that I'm using as a test.

I haven't been able to recreate it in Revit 100% correctly because I can't get to snap the points of the imported dwg-file. It is just sitting there as a 3D image. I can't really use it.



Attached Images


This user is offline



Fri, Mar 6, 2015 at 1:56:09 PM | import dwg surfaces into Revit

#4

KCren


active

Joined: Sat, Feb 19, 2011
0 Posts
No Rating


Try Adaptive components? Create an adaptive component family on Revit.

I'm not to familiar with this part of Revit but I'm sure there are tutorials out there that can help you.


This user is offline
