Forums >> Revit Building >> Technical Support >> How do I get my walls in plan view to display as an assembly? Revit 2015

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 2, 2015 at 5:30:00 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#1

butlerbuilder


active

Joined: Mon, Mar 2, 2015
0 Posts
No Rating


I am creating drawings for construction and I want my exterior wall to display as the structure assembly I set (layer of brick, air void, rigid insulation, CMU). It is currently being displayed as a masonry wall (diagonal cross hatching).

Thanks


This user is offline



Mon, Mar 2, 2015 at 5:36:37 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#2

swdebenport


active

Joined: Tue, Nov 11, 2008
24 Posts
5 Stars: 3 Votes


Is your view set to Coarse Detail Level.  this may cause it to show this way.  Walls have a property you can assign to coarse detail level.

The cut plane may also be too high.




This user is offline



Mon, Mar 2, 2015 at 6:06:45 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#3

butlerbuilder


active

Joined: Mon, Mar 2, 2015
0 Posts
No Rating


Under edit type of my wall the coarse scale fill pattern is set to "Masonry - Concrete Block" which is the diagonal cross hatching. However, there is no option to set it to show my brick, air, rigid insulation, and CMU.


This user is offline



Mon, Mar 2, 2015 at 6:18:07 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#4

butlerbuilder


active

Joined: Mon, Mar 2, 2015
0 Posts
No Rating

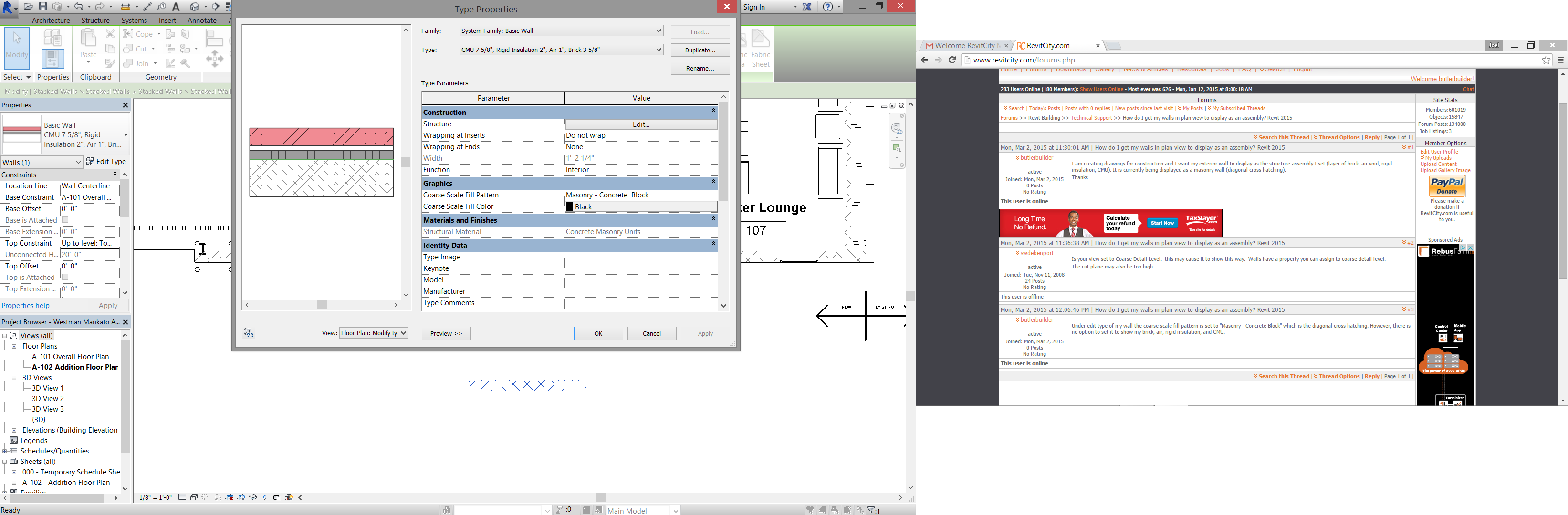

I want the walls to appear as the preview assembly in this screenshot, but you can see that they only display with diagonal cross hatching.



Attached Images


This user is offline



Mon, Mar 2, 2015 at 6:36:46 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 368 Votes


swdebenport indirectly gave you the correct answer if your walls are built correctly and if the view scale is not too small.  Change the view to medium or fine setting.


This user is offline



Mon, Mar 2, 2015 at 6:53:07 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#6

butlerbuilder


active

Joined: Mon, Mar 2, 2015
0 Posts
No Rating


That worked! I tried searching for the answer first, but it was difficult to find what I was looking for, so I'm glad I found Revit City. Thank you, I appreciate your responses.


This user is offline



Mon, Mar 2, 2015 at 6:57:19 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#7

butlerbuilder


active

Joined: Mon, Mar 2, 2015
0 Posts
No Rating


That worked! I tried searching for the answer first, but it was difficult to find what I was looking for, so I'm glad I found Revit City. Thank you, I appreciate your responses.


This user is offline



Mon, Mar 2, 2015 at 7:02:34 PM | How do I get my walls in plan view to display as an assembly? Revit 2015

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 368 Votes


This is all in your Help but sometimes a little hard to find - this is one of those instances.



Explore the help and learn how to use it. That will reward you greatly.  As a newbie, start by reading all sections on walls, floors and roofs.


This user is offline
