Is there a way to add a gable along a straight roofline? In other words, I want to simulate a gable without moving any walls to create the offsets you would normally have with a true gable. I haven't been able to find a way to make it work on Revit. I can make it happen when I frame the structure, but I don't know how to make it work in the program.

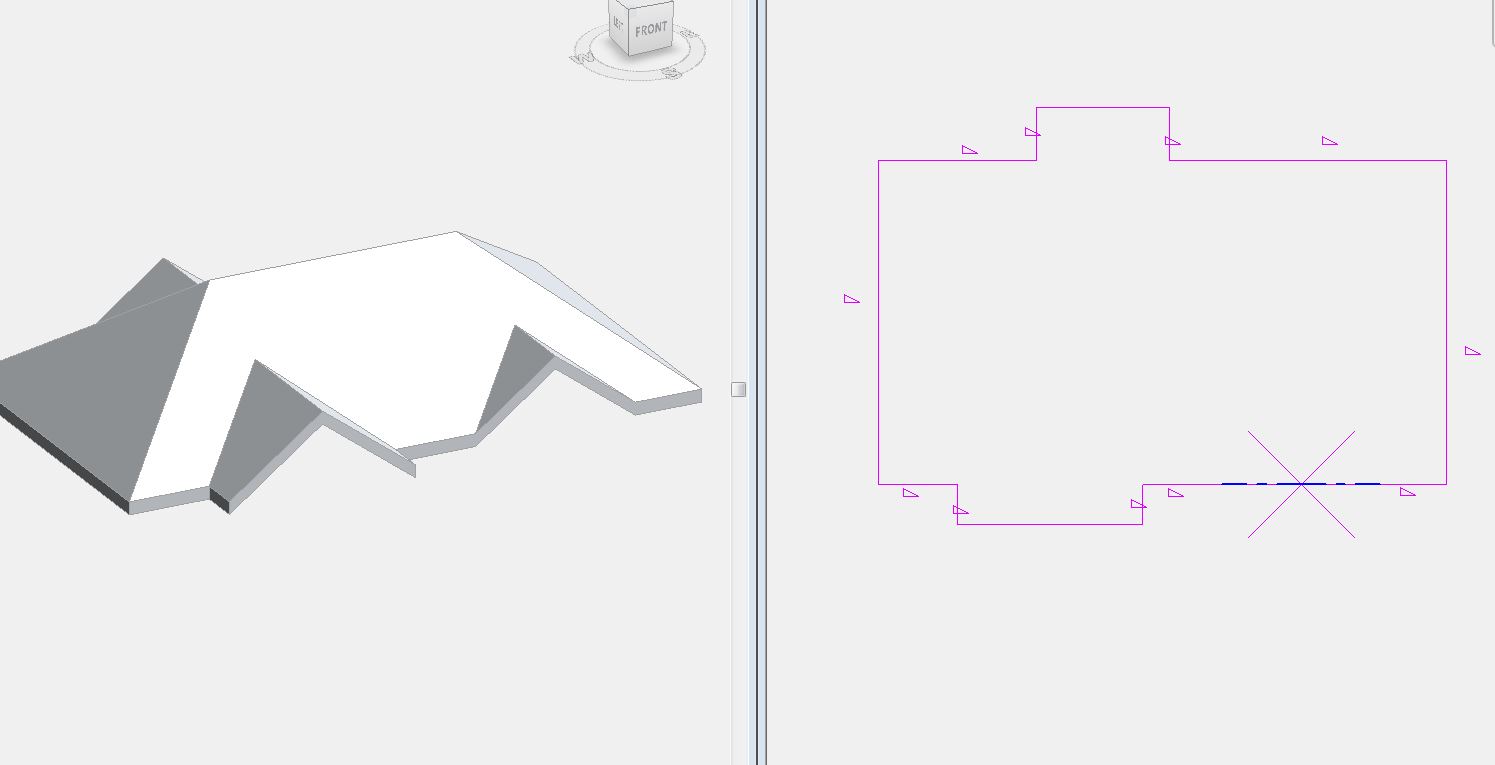

I used the "roof by extrusion" to create the look, but there are several problems:

I can't join the roofs

I cant flush the front of the gable with the existing hip

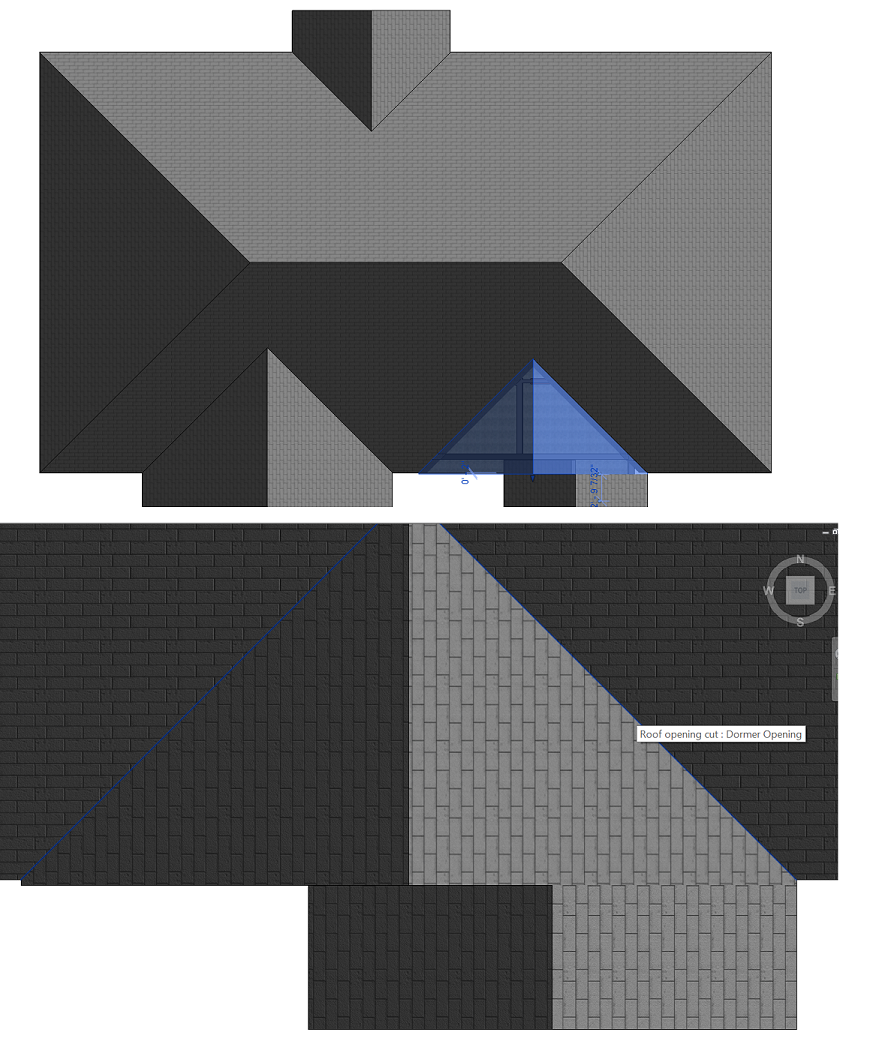

Untitled.pngEdited on: Sat, Feb 7, 2015 at 5:11:39 PM

Edited on: Sat, Feb 7, 2015 at 5:13:03 PM



Edited on: Sat, Feb 7, 2015 at 5:20:17 PM

Attached Images


This user is offline



Sat, Feb 7, 2015 at 11:19:39 PM | Having a small roof problem Revit 2015

#2

PBsFinest


active

Joined: Mon, Sep 26, 2011
3 Posts
No Rating




Attached Images


This user is offline



Sun, Feb 8, 2015 at 12:10:56 AM | Having a small roof problem Revit 2015

#3

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 20 Votes


Use slope arrows.



EDIT: Link added.



Edited on: Sat, Feb 7, 2015 at 6:18:25 PM

Attached Images


This user is offline



Sun, Feb 8, 2015 at 12:37:15 AM | Having a small roof problem Revit 2015

#4

PBsFinest


active

Joined: Mon, Sep 26, 2011
3 Posts
No Rating


Thanks for the help! I figured it was probably a very easy fix that I was blind to.



This user is offline



Sun, Feb 8, 2015 at 3:05:38 AM | Having a small roof problem Revit 2015

#5

PBsFinest


active

Joined: Mon, Sep 26, 2011
3 Posts
No Rating


I got it to work, but how do you adjust the slope? I need to join to another roof and I am having trouble getting the pitch to match.



Thanks




This user is offline



Sun, Feb 8, 2015 at 4:26:05 PM | Having a small roof problem Revit 2015

#6

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 20 Votes

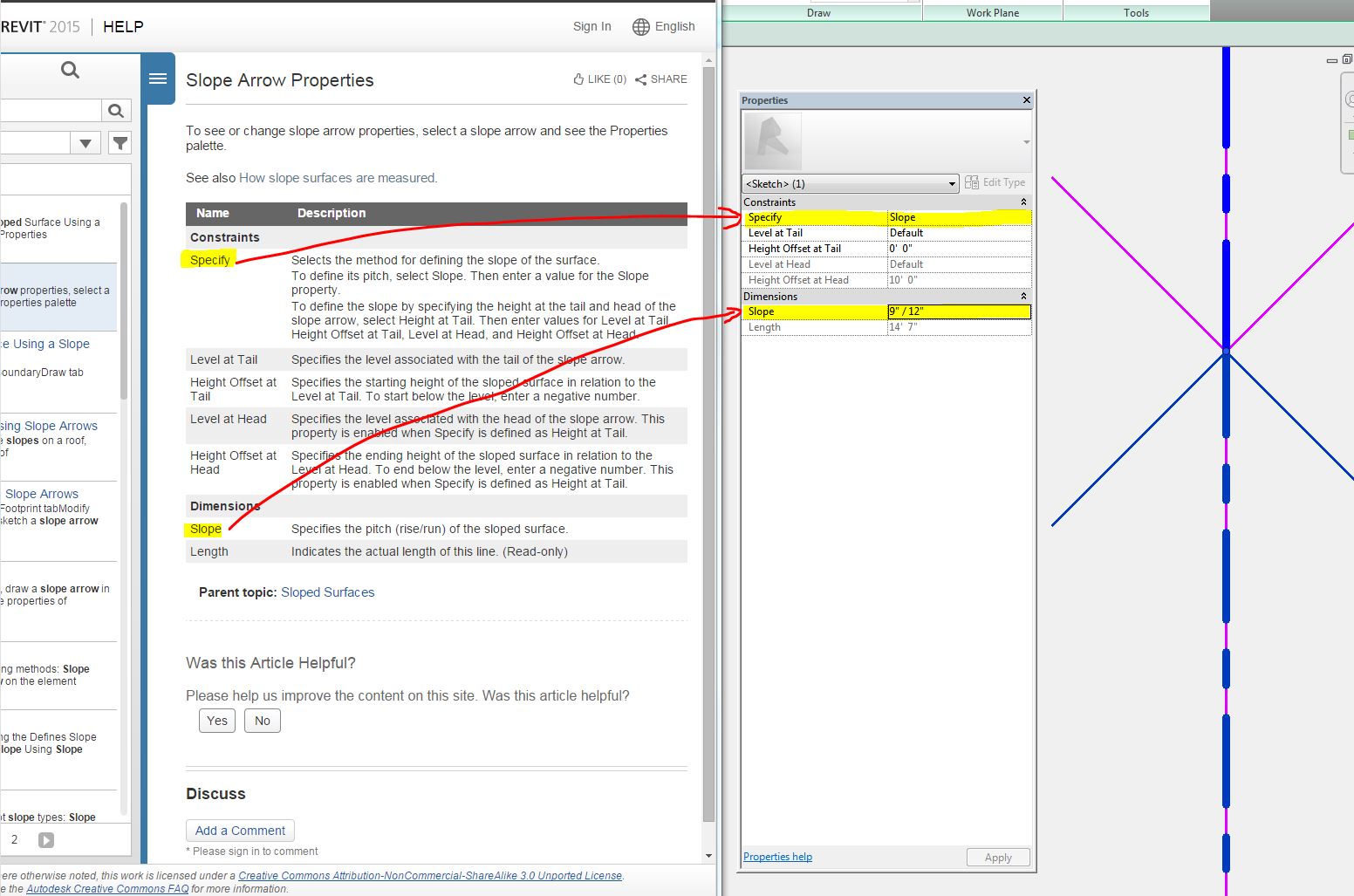

See the picture and this link.



Attached Images


This user is offline



Sun, Feb 8, 2015 at 7:34:33 PM | Having a small roof problem Revit 2015

#7

PBsFinest


active

Joined: Mon, Sep 26, 2011
3 Posts
No Rating


Well that was easy too. Thanks so much for the help!
