I would like to use a top and bottom rail of 1" square steel tubing. However, in the rail selection the smallest is 2". I suppose because the program thinks it is a stair rail requiring a minimum size. Is there a solution?

integrity


This user is offline



Tue, Dec 9, 2014 at 11:42:43 PM | guardrails

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


A rail is just a profile. You can create your own, any shape you want.


This user is offline



Sat, Dec 13, 2014 at 1:58:37 PM | guardrails

#3

integrity


active

Joined: Wed, Nov 19, 2014
0 Posts
No Rating


And how do I do this and then get it into the selection dialog?


This user is offline



Sat, Dec 13, 2014 at 5:37:55 PM | guardrails

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes

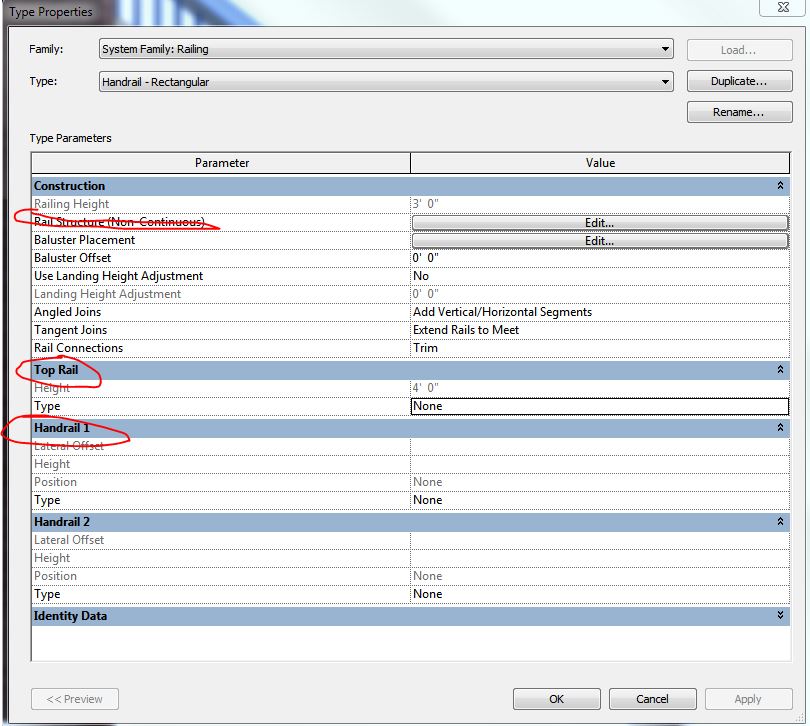

Which one are you trying to get - rail, top rail, or handrail?



Attached Images


This user is offline



Sun, Dec 14, 2014 at 2:33:39 PM | guardrails

#5

integrity


active

Joined: Wed, Nov 19, 2014
0 Posts
No Rating


I'm using Revit2011 and don't have that dialog. Is that the problem?


This user is offline



Sun, Dec 14, 2014 at 4:11:05 PM | guardrails

#6

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


No problem.

Use Profile-Rail.rft template (or Profile.rft if 2011 doesn’t have one and change profile usage to railing in properties), draw a profile you want and load it to you project. In the project, select the rail->type properties->edit (rail structure), your custom profile should be listed under profile heading.
