Forums >> Revit Building >> Tips & Tricks >> Need Custom railing with vertical weave help

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Dec 9, 2014 at 8:37:39 AM | Need Custom railing with vertical weave help

#1

ivanzep


active

Joined: Mon, Jun 18, 2012
18 Posts
No Rating

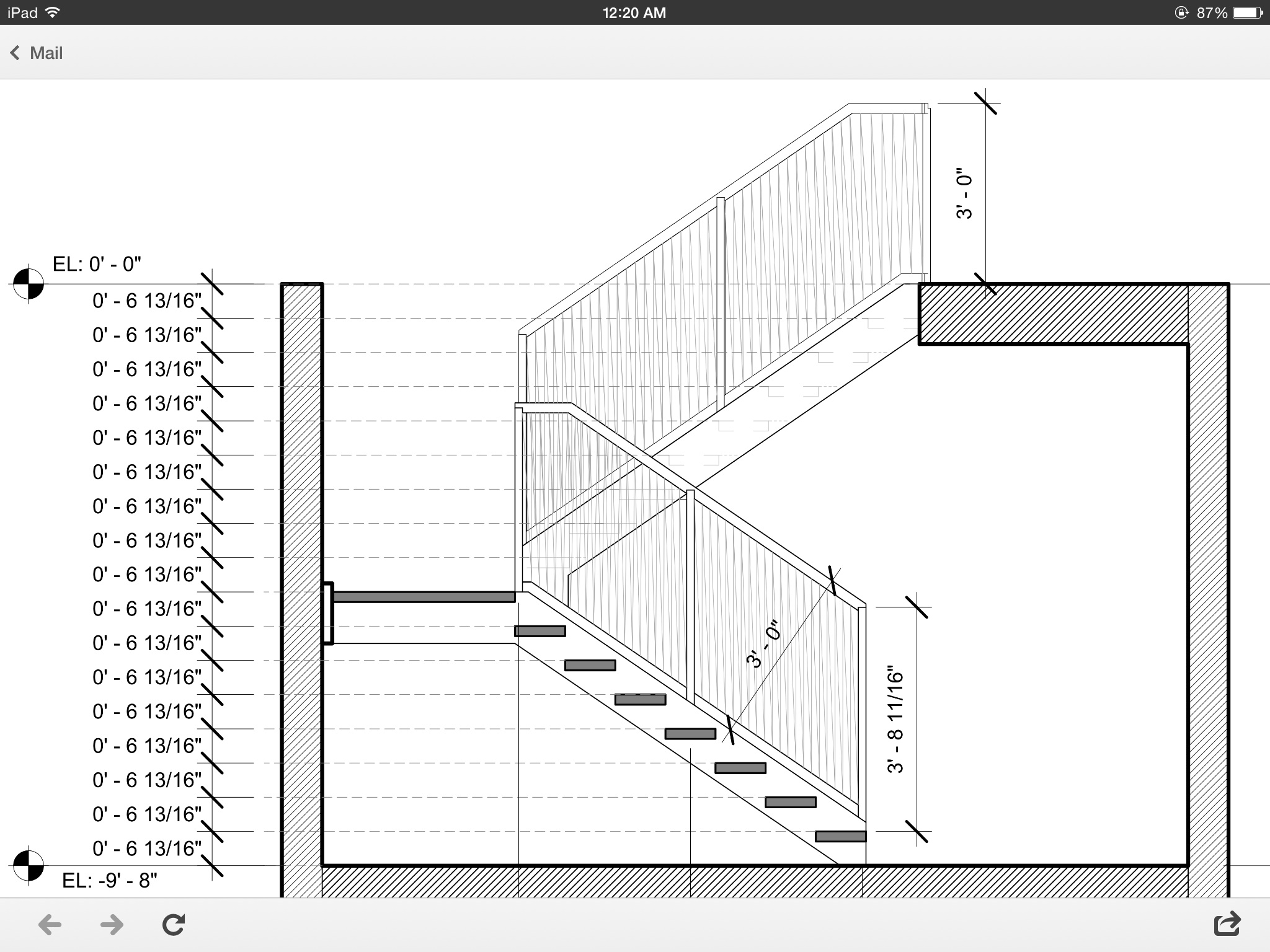

How would you approach modeling this railing? The tricky part (for me) would be the weave in between the balusters, that is supposed to be a single cable filling each panel. It would be best if it were parametric so we could look at different configurations quickly. I.e. Weave separation, baluster height etc.Edited on: Tue, Dec 9, 2014 at 2:38:52 AMEdited on: Tue, Dec 9, 2014 at 2:39:10 AM

Edited on: Tue, Dec 9, 2014 at 2:40:35 AM

Attached Images


This user is offline



Tue, Dec 9, 2014 at 8:40:07 AM | Need Custom railing with vertical weave help

#2

ivanzep


active

Joined: Mon, Jun 18, 2012
18 Posts
No Rating

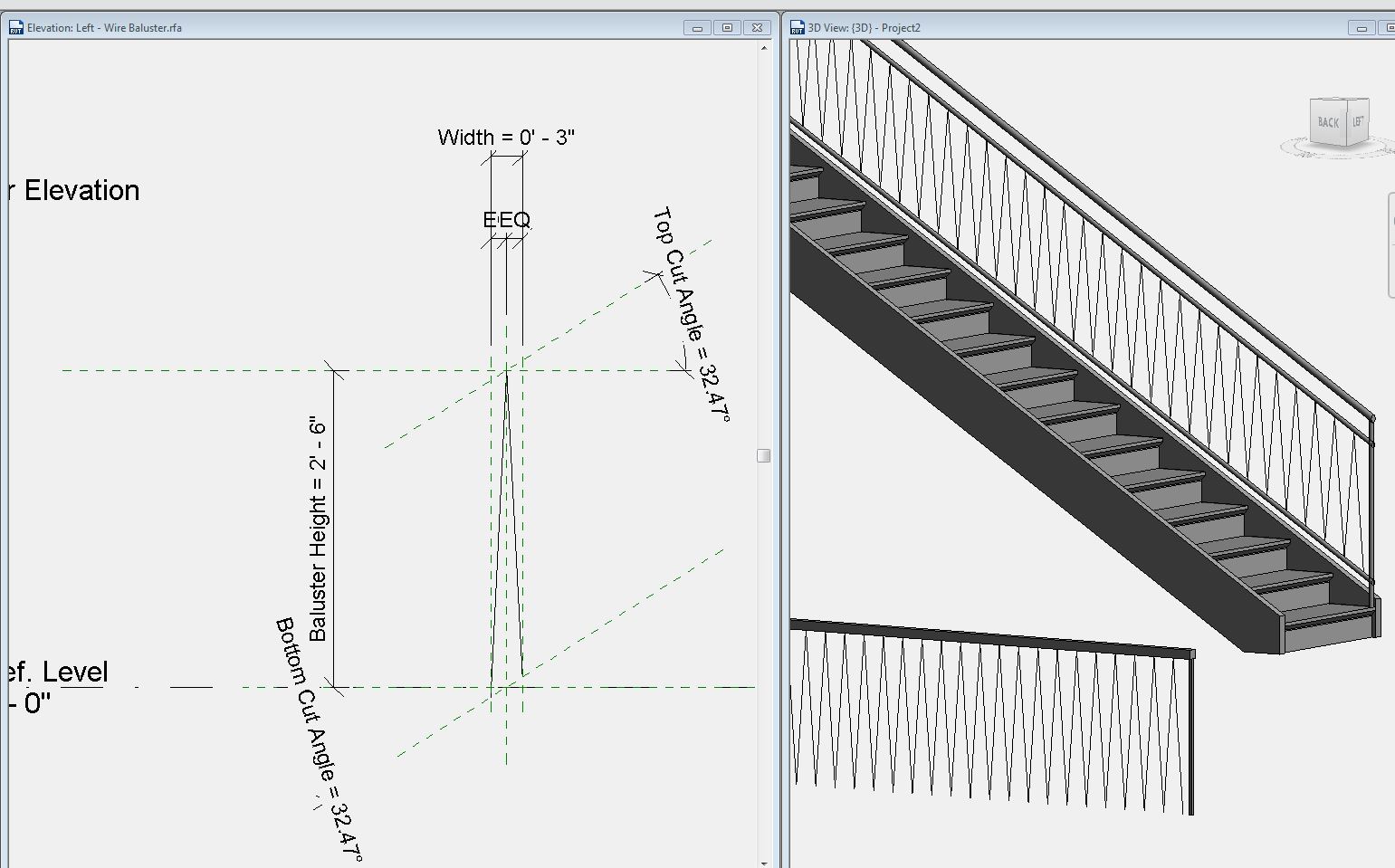

Image 2

Attached Images


This user is offline



Tue, Dec 9, 2014 at 5:35:08 PM | Need Custom railing with vertical weave help

#3

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 20 Votes


Start with the Baluster template. You can use model lines to represent the wire. Create a few family types with different spacing, so you can swap them in the project.



Attached Images


This user is offline



Tue, Dec 9, 2014 at 6:13:10 PM | Need Custom railing with vertical weave help

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 348 Votes

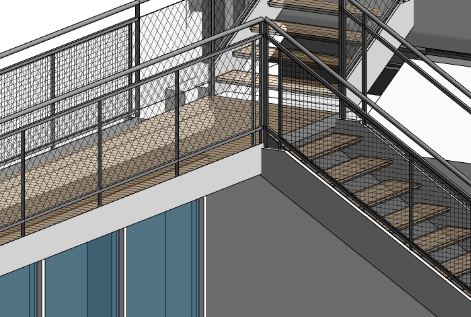

Can you find that maybe in a material?

That's what I used for these Mesh panels.



Attached Images


This user is offline
