Does anyone know how to fix the View Reference family so the center drag point is closer to the actual label text? The problem is that in larger scale views, the center drag point is getting cropped by the annotation crop boundry and therefore does not display.

I have tried rebuilding the View Reference and moving the label and/or the center reference planes in the family, but it still displaces the center drag point once it is made into a View Reference and loaded into the project

I have tried researching an answer to this but have only found this thread on Autodesk:

http://forums.autodesk.com/t5/revit-mep/view-reference-annotation-drag-mark/td-p/4771397

It does not solve the issue.

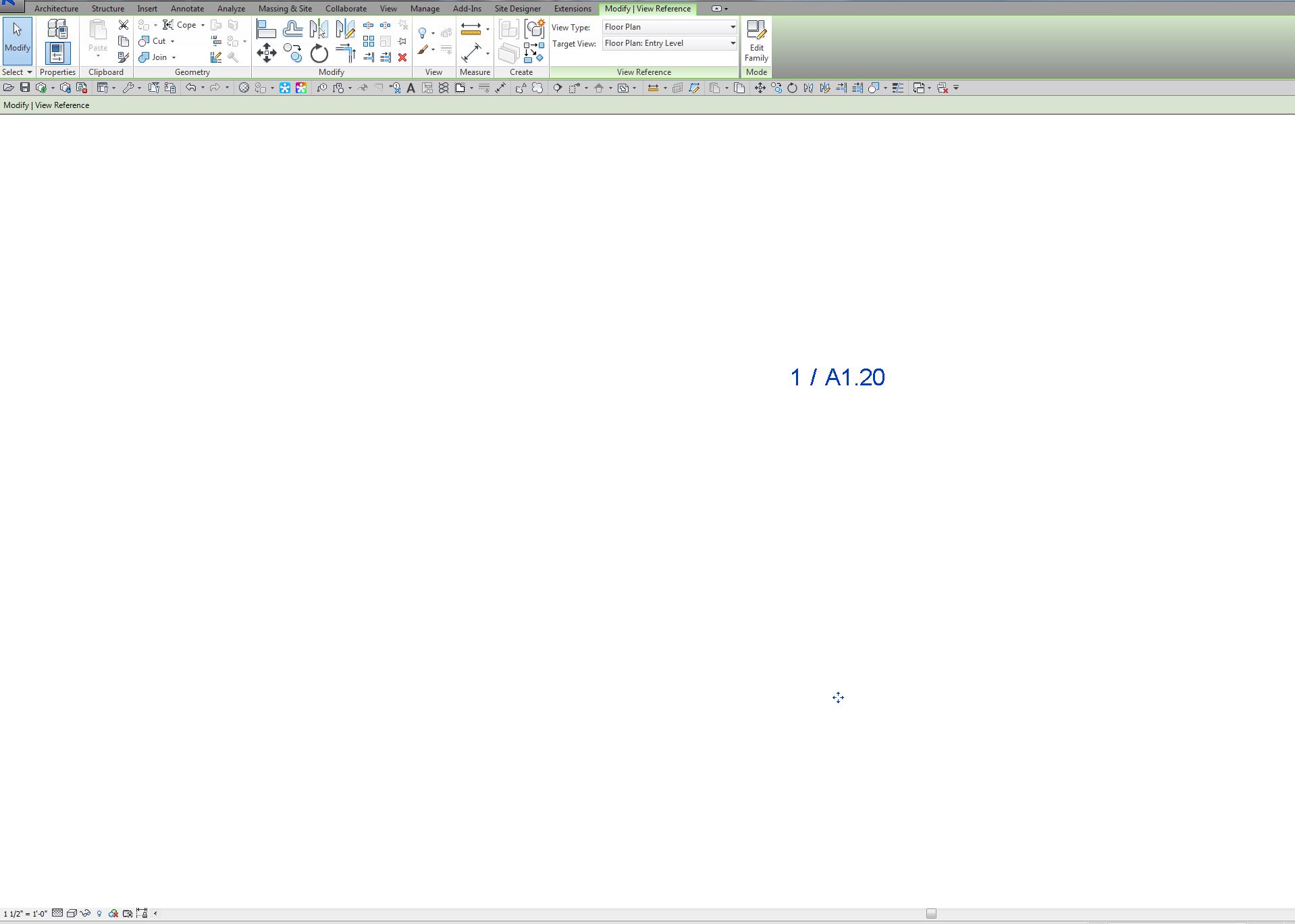

Attached Images

This user is offline

1awise

active

Joined: Thu, Nov 16, 2006
1 Posts
No Rating

Sorry, I am in Revit 2015

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Share your family so we can see your problem.
