Forums >> Revit Structure >> Technical Support >> Column base plate tag units display.

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Nov 14, 2014 at 8:58:47 PM | Column base plate tag units display.

#1

COACHZZ


active

Joined: Fri, Nov 14, 2014
0 Posts
No Rating


I am in the process of creating tags for use with the graphical column schedule.

I have added a base plate to my column familys, with shared parameters. The parameters ask for dimensions to define the base plate.

The column tag I am creating pulls the base plate dimensions.... the only issue I am having with this is the base plate dimensions reporting in feet and inches. Is there any way I could change them to report only in inches? ex... 1'4" = 16"

I attached some screenshots to clarify. let me know if I need to post more information.

I have only been working with revit for a few months so let me know if my terminology is off...

Any help is appreciated.



This user is offline



Sat, Nov 15, 2014 at 12:08:33 AM | Column base plate tag units display.

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

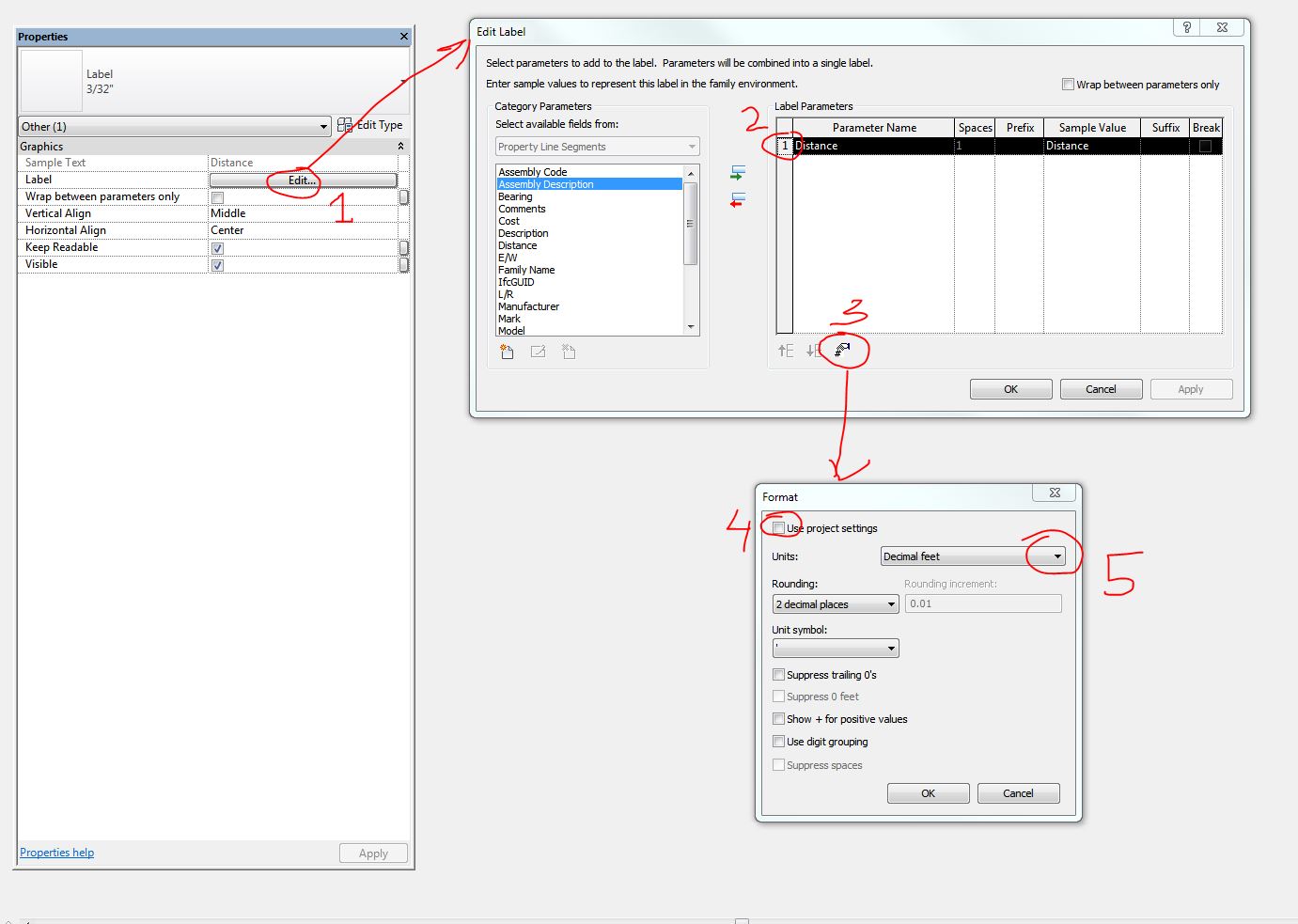

If I understand your question correctly, in the tag family, select your dimension label and follow the picture.



Edited on: Fri, Nov 14, 2014 at 6:10:30 PM

Attached Images


This user is offline



Mon, Nov 17, 2014 at 8:24:40 PM | Column base plate tag units display.

#3

COACHZZ


active

Joined: Fri, Nov 14, 2014
0 Posts
No Rating


I feel like a bum now....it was that easy.

Thank you!



Edited on: Mon, Nov 17, 2014 at 2:29:07 PM

This user is offline
