Forums >> Revit Building >> Tips & Tricks >> trapezoid thickness of the wall?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Nov 4, 2014 at 7:36:15 AM | trapezoid thickness of the wall?

#1

desiiito


active

Joined: Tue, Mar 12, 2013
8 Posts
3 Stars: 1 Votes

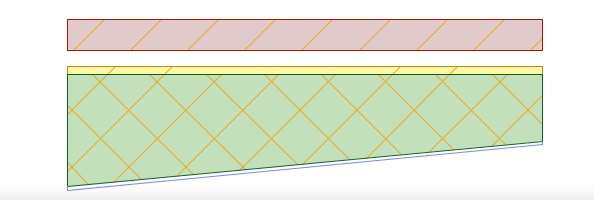

I changed the profile of the wall, but now I want to do it with different thickness, as the trapezoid wall in archicad, or to cut it by the angle, is there any trick to delete that part in front of the wall i made, and the other part to stay?



Attached Images


This user is offline



Tue, Nov 4, 2014 at 7:41:37 AM | trapezoid thickness of the wall?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Sorry but your question is not clear at all and your images don't help any.

Wall profile is a wall elevation term.  You can sketch the elevated profile shape of the wall.

Wall thickness is defined by wall types.


This user is offline



Tue, Nov 4, 2014 at 7:49:43 AM | trapezoid thickness of the wall?

#3

desiiito


active

Joined: Tue, Mar 12, 2013
8 Posts
3 Stars: 1 Votes

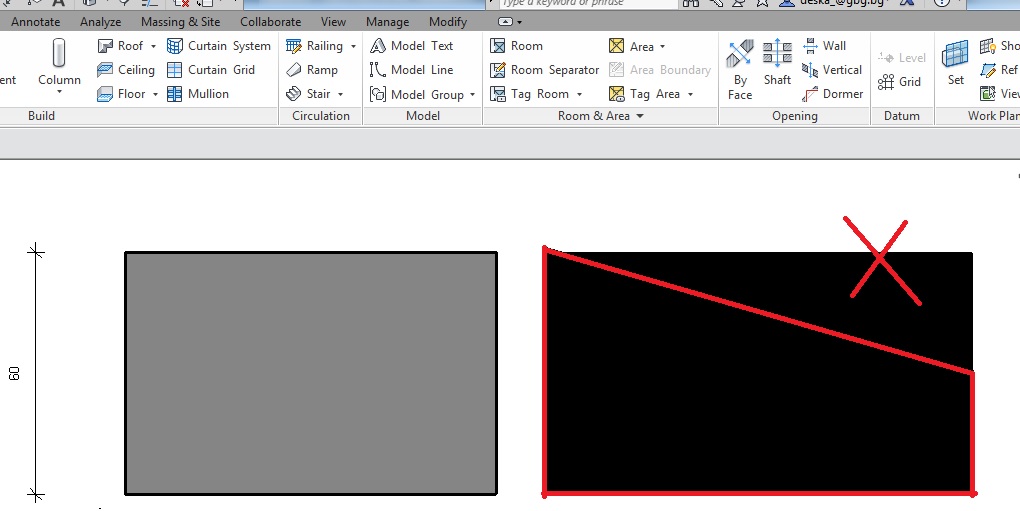

This picture is of the top view (60 is the thickness), .. the normal wall is the first one, the second is what i want to do but dont know how?



Attached Images


This user is offline



Tue, Nov 4, 2014 at 8:28:20 AM | trapezoid thickness of the wall?

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


It appears that your views are plan views - correct?

In that case, you can do this one of two ways.

  1. Define the wall normally, then use a void to cut away part of the wall. (Probably in place void extrusion)
  2. Use the model in place tool to create your wall as a vertical extrusion with this shape in plan.   If you do this, the extrusion will be all one material - no layers.

In-place wall category elements will still host and show as walls.


This user is offline



Tue, Nov 4, 2014 at 5:05:39 PM | trapezoid thickness of the wall?

#5

desiiito


active

Joined: Tue, Mar 12, 2013
8 Posts
3 Stars: 1 Votes


Thank you Smile


This user is offline



Fri, Mar 6, 2015 at 1:37:45 PM | trapezoid thickness of the wall?

#6

KCren


active

Joined: Sat, Feb 19, 2011
0 Posts
No Rating


Like what that other guy said, making an in-place Wall component is the most convinient way. Paint that wall accordingly. If you use the void option you might end up cutting through a multi-layered wall and show the inner layers. (you still need to make an in-place too!)
