Forums >> Revit Building >> Technical Support >> Sketch/Family Constraints

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Nov 3, 2014 at 9:30:39 AM | Sketch/Family Constraints

#1

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


Hello,

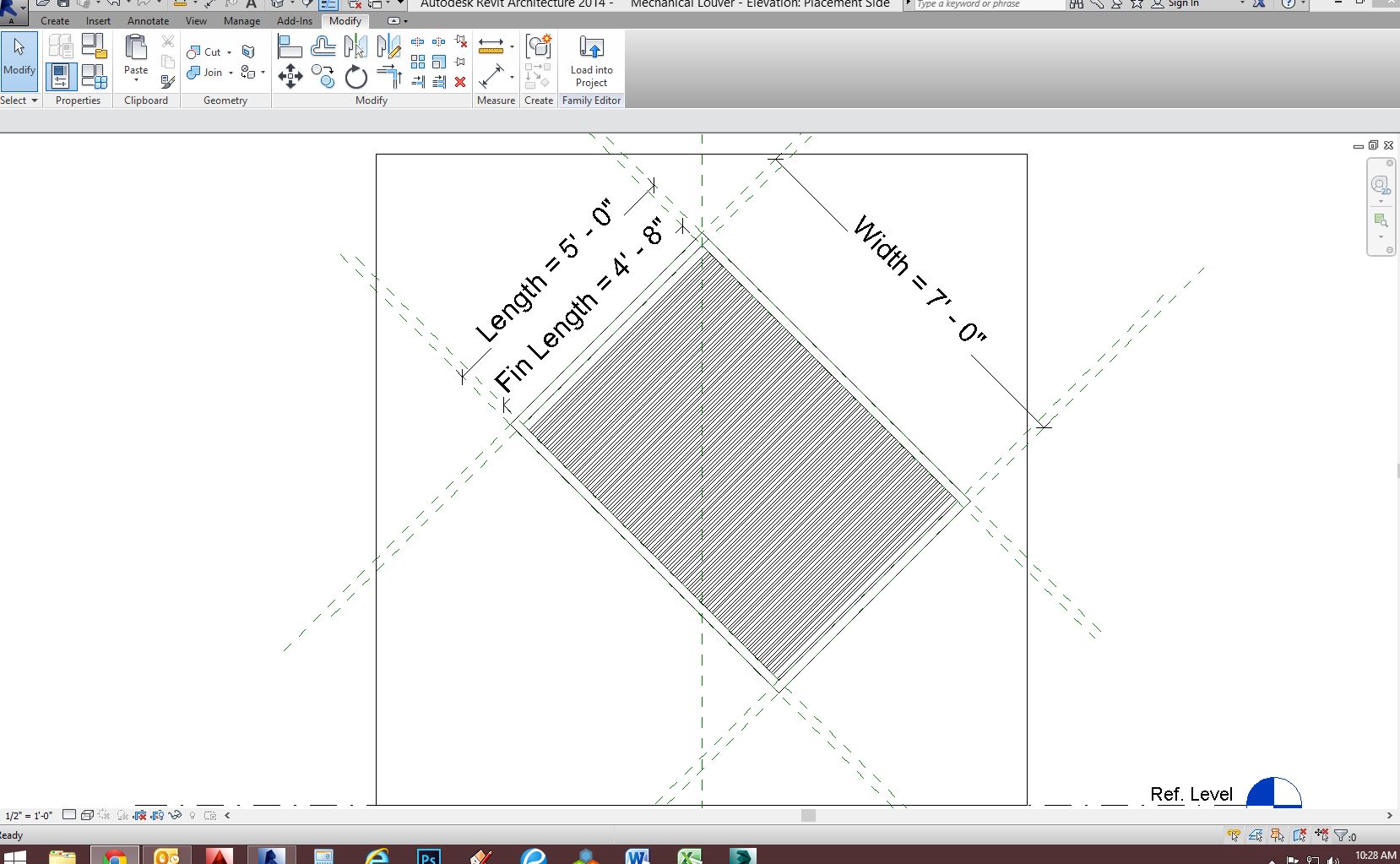

I am using Revit 2014.  I have created a parametric louver family, but am running into one last issue.  The louver's width and length can be controlled, and also the quantity of fins within the louver.  However, I am trying to get the length of the fins to change with the length of the louver.  For the fins, I have a parameter set up that is called 'Fin Length" that subtracts 4" from the overall length (for the 2" frame on both sides).  The fins are created by a sweep and whenever I try to lock the ends of the sweep's path to these reference planes, I get the error below and it won't lock.

You may not create sketch or family constraints between group members and elements which are not members of the same group.

Do I need to make a separate family for the fins?  Any ideas?

Thank you!



Attached Images


This user is offline



Mon, Nov 3, 2014 at 11:56:30 AM | Sketch/Family Constraints

#2

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


I'd say yes, Nest the fin family.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Tue, Nov 4, 2014 at 2:53:11 PM | Sketch/Family Constraints

#3

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


Thanks for the reply.  I still cannot get the length of the fin to stretch/skrink with the length of the overallparameter.
