Forums >> Revit Building >> Technical Support >> Revit 2015: Underlays and Different Levels

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Oct 29, 2014 at 5:56:14 PM | Revit 2015: Underlays and Different Levels

#1

thatramongirl


active

Joined: Fri, Feb 18, 2011
0 Posts
No Rating


Hello all, and thanks in advance for your help and patience:

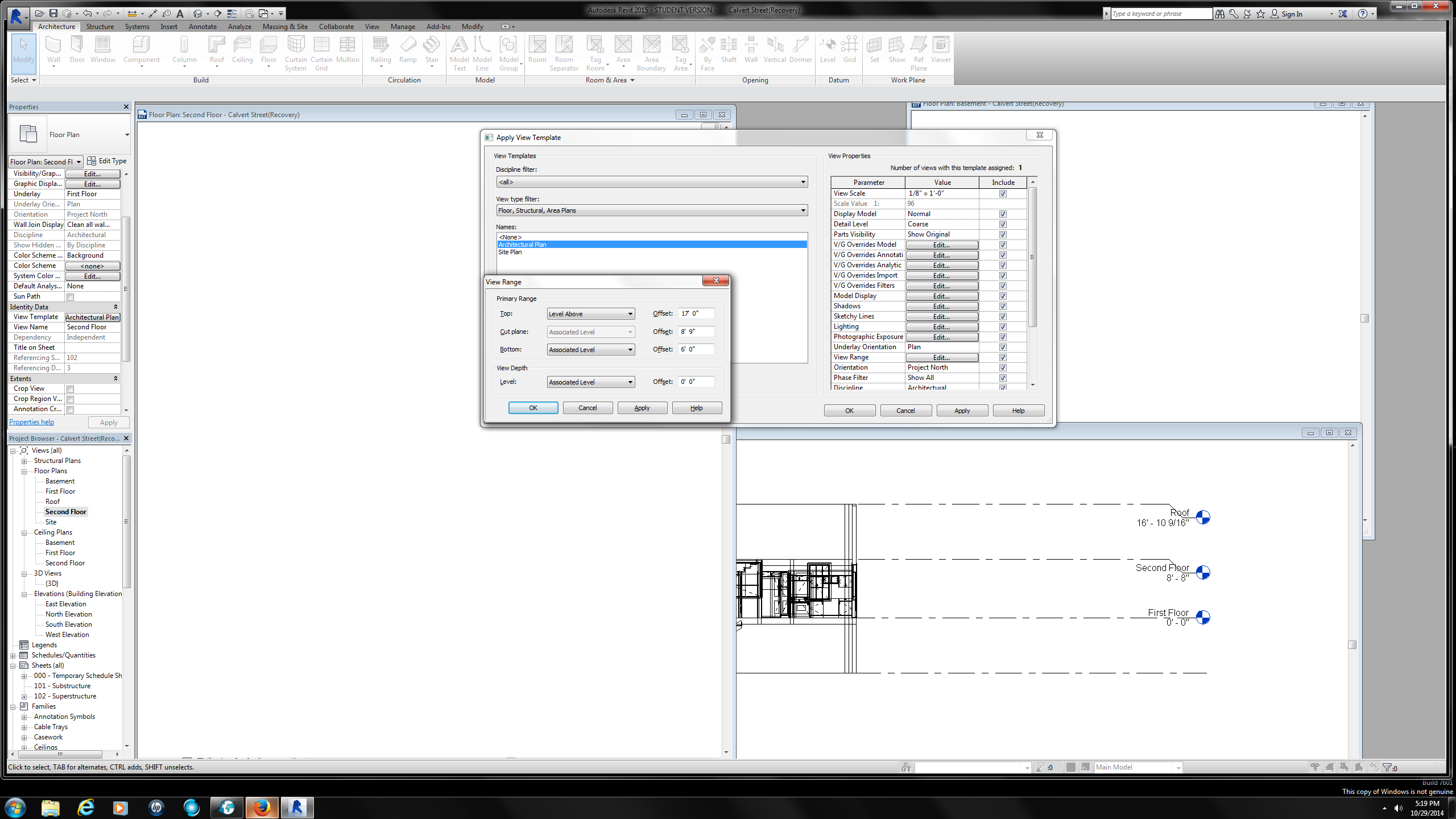

I am using the student version of Revit 2015. Cannot see the Underlay for the First Floor in my Second Floor plan. Have read myself and have fiddled with "Bottom" and "View" (see screen shot), but to no avail.

*Have a feeling that this is due to the fact that earlier, I deleted a few elevations that said "Bottom" and "Top" because I thought I wouldn't need them.

Have a deadline pending so your help is SO APPRECIATED.

Regards,

Christy Ramon

Honey + Salt Design Studio

Chicago



Attached Images


This user is offline



Wed, Oct 29, 2014 at 7:05:23 PM | Revit 2015: Underlays and Different Levels

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

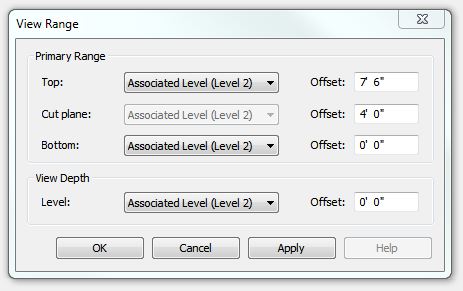

Is there a reason for these rather unusual view range settings? Try default (as per pic), or at least set the bottom offset to 0. If no luck, post a view range settings for the 1st floor.



Attached Images


This user is offline



Wed, Oct 29, 2014 at 8:11:56 PM | Revit 2015: Underlays and Different Levels

#3

thatramongirl


active

Joined: Fri, Feb 18, 2011
0 Posts
No Rating


Thanks, Pjipiwo.

So I used your suggested default settings (which match the first floor's) and still cannot see a darn thing.

Thoughts?



Attached Images


This user is offline



Thu, Oct 30, 2014 at 9:19:19 AM | Revit 2015: Underlays and Different Levels

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 389 Votes


You show the settings for a template.  Has that template been applied to the view.  Show the settings for the view insted.


This user is offline



Thu, Oct 30, 2014 at 9:41:56 AM | Revit 2015: Underlays and Different Levels

#5

thatramongirl


active

Joined: Fri, Feb 18, 2011
0 Posts
No Rating


Hello all!



I ended up solving my problem by reading a similar thread from 2013. It turns out that it was a Phasing Issue (who'd have known that Revit automatically places your levels in "Project Complete" phase. Craziest thing ever.



Thanks for your help -



CR


This user is offline
