Hey All.

I m new to Revit and I m just modelling a house and try to make things work as they should be !

Now I came to a thing that I cannot solve either through a tutorial or any book or so.

I got a wall with brick, as external wall and another external wall with render. The render wall is

joining into the brick in a 90 degree. First problem is: How can the brick wrap around the insulation

completely ? I know there is wrap in the type setting but is just wraps partly. Second problem.

The external wall has a an internal side that is finished with render and another that isn t as its only outside.

How do I get rid of the wall finish on the front bit ? Hopefully anyone can help me, its really appreciated.

Kevin from London

ps. I ll attach an image

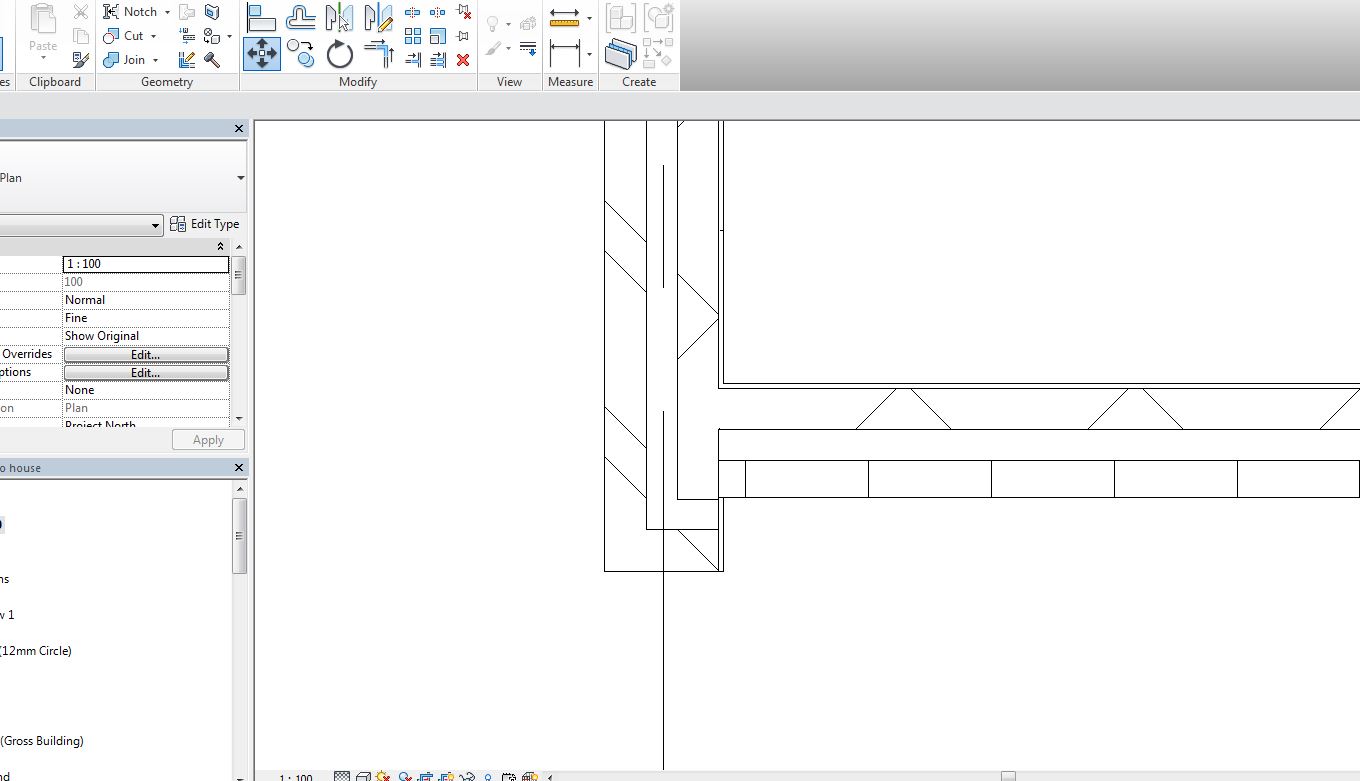

Attached Images


This user is offline



Wed, Oct 29, 2014 at 1:51:47 PM | Wall Joint

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


The end wall - your problem is that inside layer.... you will have to use a short wall here that does not have that layer.  Then the outside wrap will work.



BTW - Read this chapter in your HELP:

http://help.autodesk.com/view/RVT/2014/ENU/?guid=GUID-1CCD1005-CBDA-4338-8D60-489095D4BB25


This user is offline



Wed, Oct 29, 2014 at 6:42:37 PM | Wall Joint

#3

Ksolar


active

Joined: Fri, Oct 24, 2014
0 Posts
No Rating


Thanks a lot WWHub !

It now worked and the chapter in the Help is what I needed.
