Forums >> Revit Building >> Technical Support >> 3D CAD import Part and masking region

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Sep 11, 2014 at 10:53:26 PM | 3D CAD import Part and masking region

#1

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes

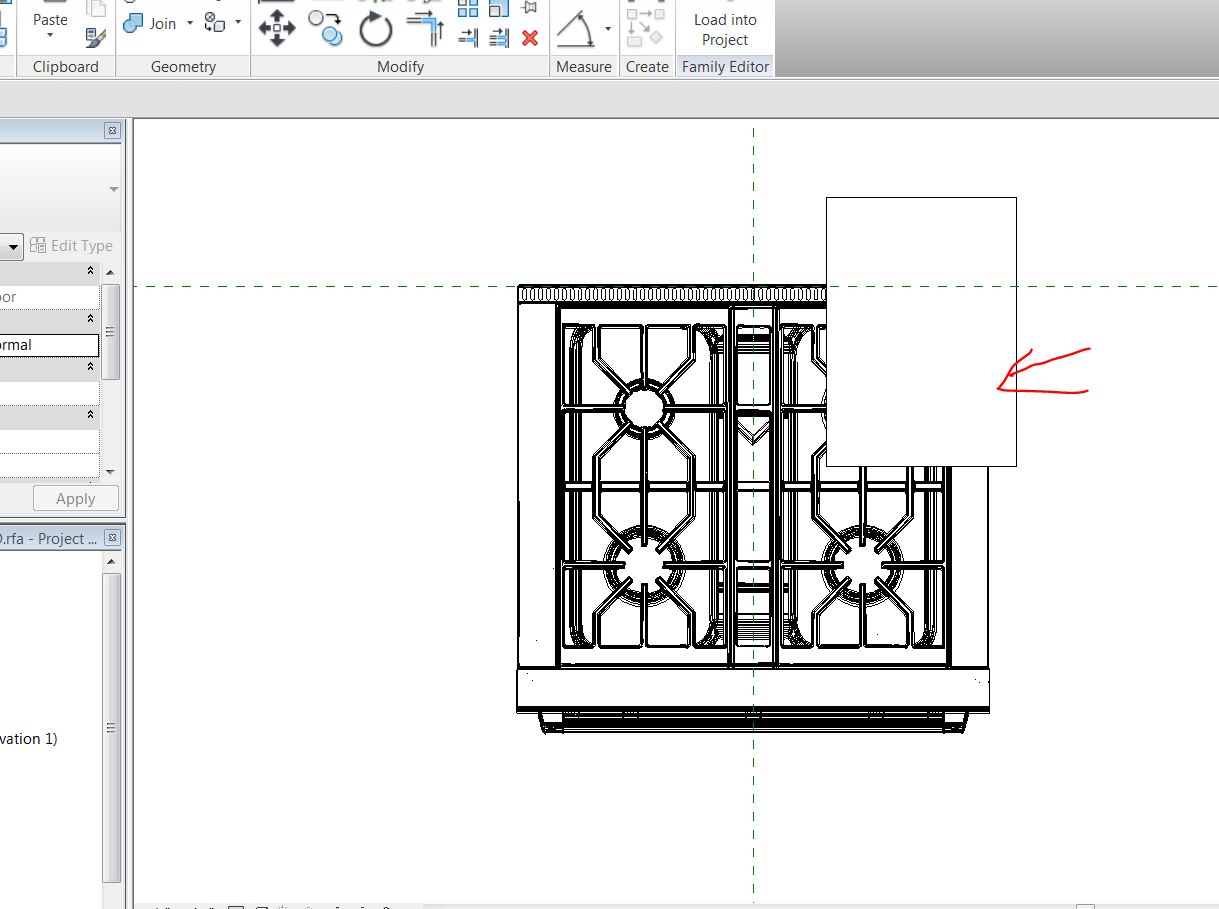

Im trying to create a wolf range 3D CAD block for my revit model. The 3D CAD part is completely wire framed in all views but the 3D view. So in plan you can see through it to the floor pattern underneath. I want to add then a masking region to the family so it wiped out the floor under (in plan), but still shows the range itself. But the masking region covers everything.

any help would be cool. I cant "move to back" the masking region so my plan view lines show through. :-(



Attached Images


Attached Files

This user is offline

View Website

Fri, Sep 12, 2014 at 1:28:31 PM | 3D CAD import Part and masking region

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Place a very thin extrusion under the stove and set it to show only in plan.






This user is offline



Fri, Sep 12, 2014 at 5:37:57 PM | 3D CAD import Part and masking region

#3

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes


haha! thats exactly what I ended up doing! Great minds!

Was curious though, there is no "send to back" commands in the families editor. Seems like the perfect tool, but there must be some reason that it can't

Thanks


This user is offline

View Website

Fri, Sep 12, 2014 at 6:35:17 PM | 3D CAD import Part and masking region

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Your problem is how the CAD was done.  If it had a solid in it high enough, then you would not have to do this.



Masking regions hide everything except 2D elements including text and dimensions.


This user is offline



Sun, Sep 14, 2014 at 7:36:26 PM | 3D CAD import Part and masking region

#5

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes


Cool.

Note though, you CAN do the masking region in a "detail item" family. If you DL a CAD file from a supplier (say a range dwg) and import that cad into a detail item family, then you can make a masking region and send it under the CAD lines, getting a nice family to insert that masks floor tiles etc..., but its only a flat 2D element. Sort of works for detail plans, where you have a lot of equipment and such.


This user is offline

View Website
