Forums >> Revit Building >> Technical Support >> PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Aug 29, 2014 at 11:10:10 AM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#1

LOSpistos


active

Joined: Wed, Apr 1, 2009
20 Posts
5 Stars: 1 Votes


Hi guys,

so im having an overall floor plan (Level 01) and in the middle of it there is courtyard set -1.0m below so with default view depth settings i cant see it. There is just blank space. So i took the plan region tool to create a boundary with different view depth to be able to see the podium below.

BUT

everytime i change plan region view depth settings it has somehow affect on the overall floor plan settings.

I just dont understand how it can change view settings of the floor plan..

Any help will be relaly appreciate im in my ends!

Thanks

Luba


This user is offline



Fri, Aug 29, 2014 at 11:14:12 AM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Images would help:

  1. floor plan showing plan region
  2. View properties showing view range settings
  3. View range settings for plan region




This user is offline



Fri, Aug 29, 2014 at 11:26:47 AM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#3

LOSpistos


active

Joined: Wed, Apr 1, 2009
20 Posts
5 Stars: 1 Votes

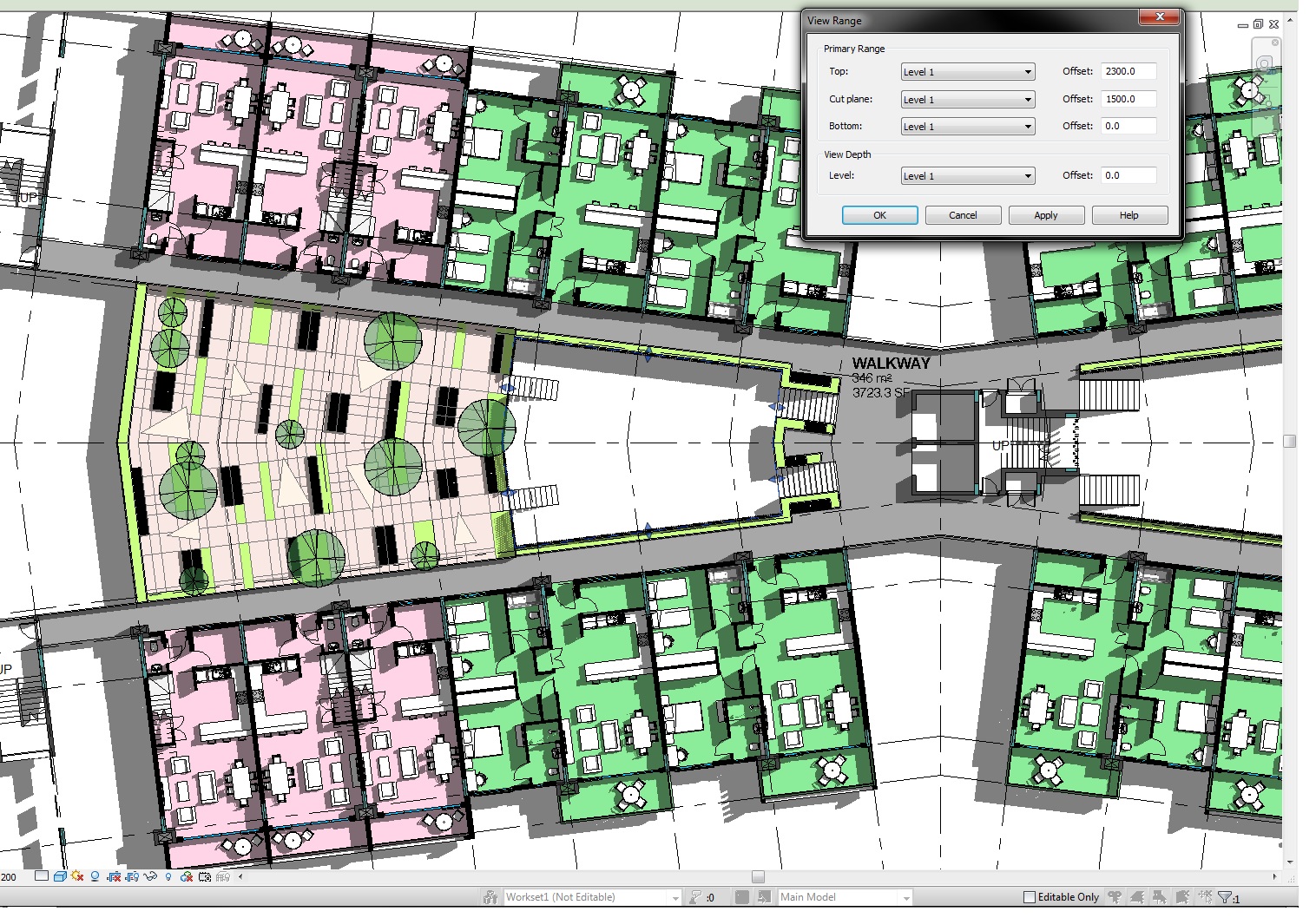

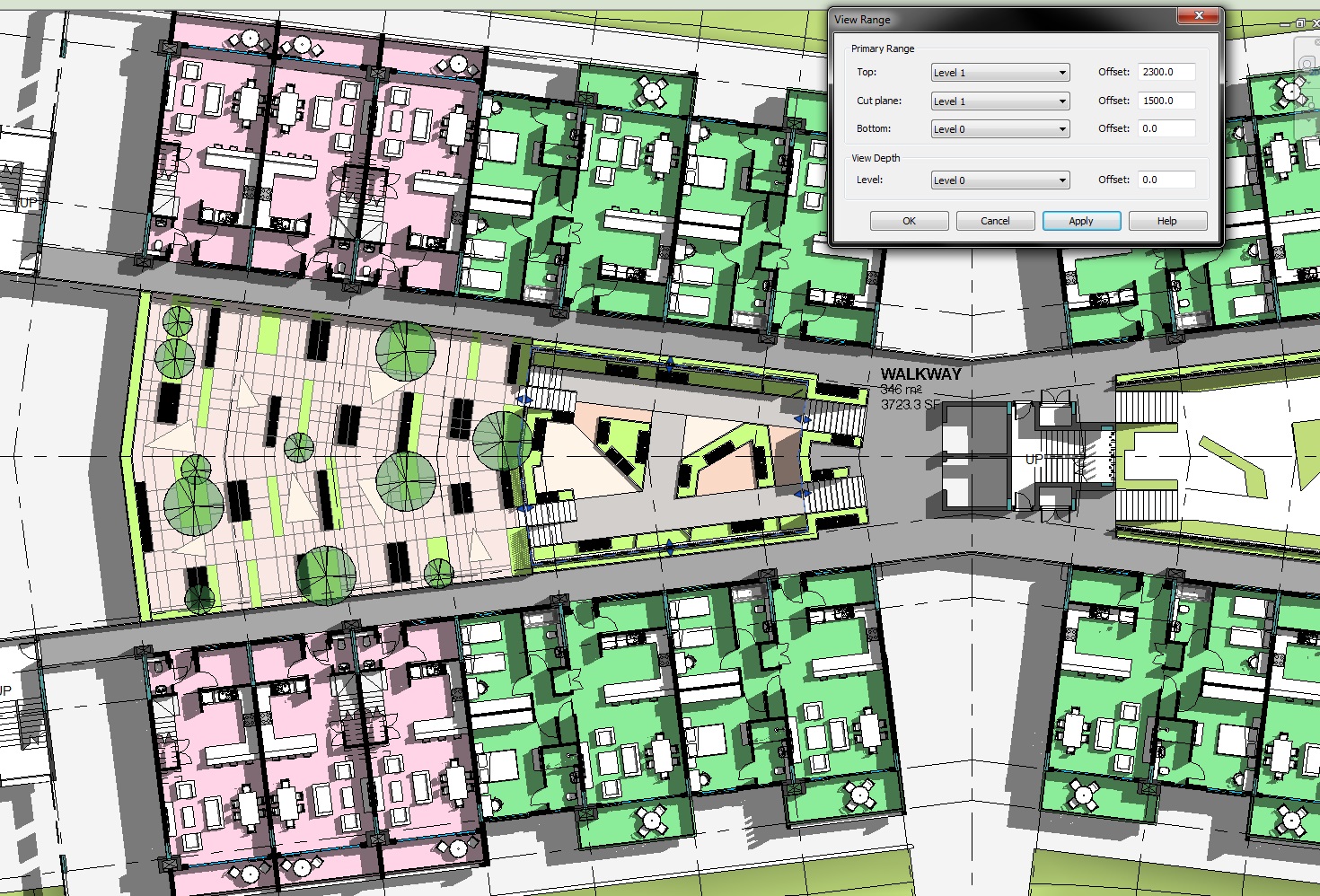

Attached Images


This user is offline



Fri, Aug 29, 2014 at 1:08:08 PM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You have not shown us how it does what you say.  The view settings you show are for the plan region only.


This user is offline



Fri, Aug 29, 2014 at 1:12:16 PM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#5

LOSpistos


active

Joined: Wed, Apr 1, 2009
20 Posts
5 Stars: 1 Votes


Yep only for plan region and u can see that the second image shows the topography on the sides whoich shoudlnt be there as i change the view depth in the left courtyard area..


This user is offline



Fri, Aug 29, 2014 at 1:27:29 PM | PLAN REGION VIEW DEPTH CHANGE OVERALL FLOOR PLAN

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Sorry but the only change I see is in the plan region area and it is supposed to change!

See side by side below

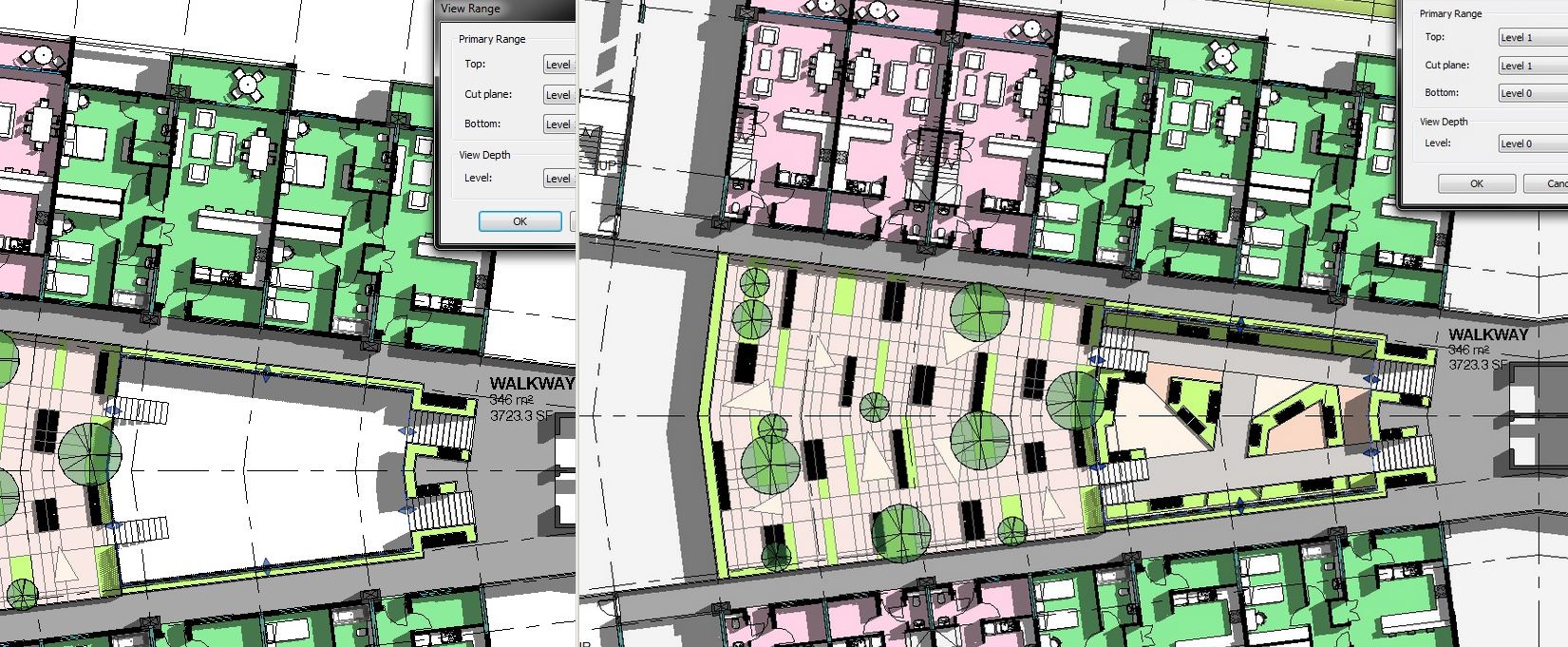

Attached Images


This user is offline
