Forums >> Revit Building >> Technical Support >> How to build metal stair with concrete finish

Eiji

active

Joined: Mon, Nov 12, 2012
0 Posts
No Rating

Hello,

I am currently using Revit 2014 Student Version, and am attempting to build a metal flight of stairs with a concrete finishing.

The stair would have structural profiles as supports and a 4mm steel plate as a mold for a 50mm concrete finish.

I know I can model a monolithic stair, having its structure made with concrete and have certain material finishes to it, but when it comes to metal stairs I can't find a way to do it!

Any help with this would be appreciated. Thanks

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

A standard metal pan stair is what I assume you are talking about.  http://www.steelway.co.uk/SW-pan-type-treads.php

That is one of the typical stairs defined in Revit.  The metal pan forms the bottom, nose and back (riser) (may be open) and the concrete tread fills the pan.

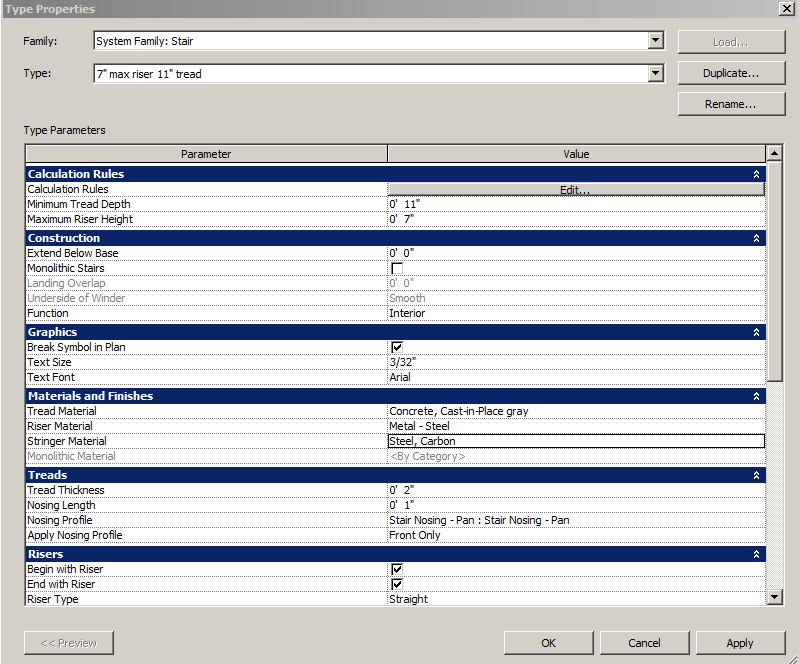

Attached Images

This user is offline

Eiji

active

Joined: Mon, Nov 12, 2012
0 Posts
No Rating

Thank you! It worked fine.
