Forums >> Revit Building >> Technical Support >> Skylight shaft

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jul 28, 2014 at 7:32:00 PM | Skylight shaft

#1

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes


Hello.

trying to make a pyramidal skylight shaft. but cant seem to use the 3d tools to make the shape I need to make a wall by face. can someone point me in the right direction of making this? see picture. the skylight is on an angle in the roof, but the shaf needs to open to the ceiling which is "flat"





Attached Images


This user is offline

View Website

Tue, Sep 2, 2014 at 7:40:14 PM | Skylight shaft

#2

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


This is tricky becasue you want to create a 'void' in the attic but really the attic with a revit roof is just a big open space. So how to you model a void within a big air space ?? What you want is the drywall and the framing.



You could create an adaptive family to do this but that will take a bit of time. Honestly, I'd just draw 4 - 3D model lines from corner to corner just like your sketch.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Tue, Sep 2, 2014 at 8:53:50 PM | Skylight shaft

#3

neomaxmaya


active

Joined: Sat, Aug 11, 2012
29 Posts
5 Stars: 1 Votes

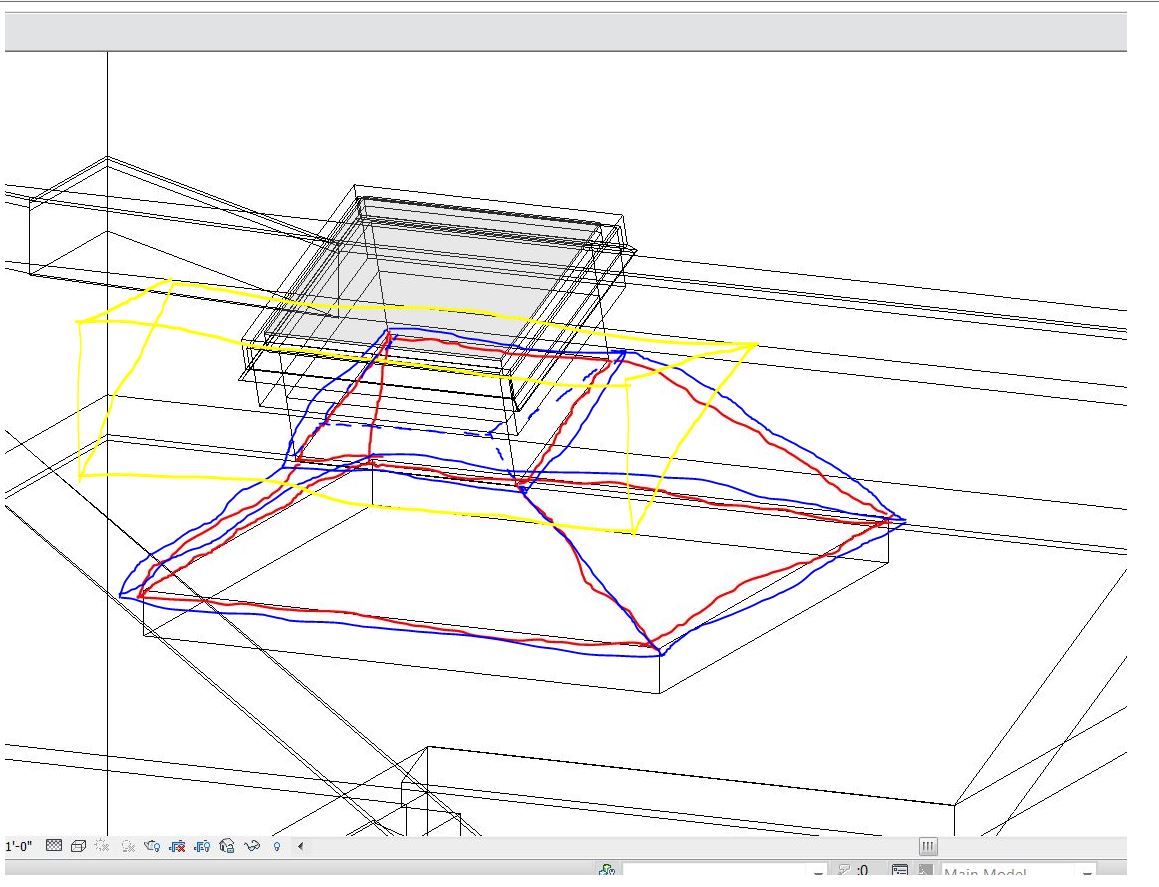

Model in place the blue pyramid (swept blend), then model he red void offset reflcing the wall thickness (swept blend). then model the yellow void to subtract the dashed blue top aligned with the roof slope (extrude).
