Forums >> Revit Building >> Tips & Tricks >> Revit door families

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jul 18, 2014 at 8:45:58 PM | Revit door families

#1

perhart27


active

Joined: Wed, Apr 2, 2014
0 Posts
5 Stars: 1 Votes


I have a few door openings in my rounded silo wall, that were created by families.  I need to be able to tag them in plan view to show both the mark # and the top and bottom elevations of the actual openings.  i am able to tag the door opening itself with a mark number.  When i choose an elevation marker and choose top and bottom elevations, and pick the door opening, it selects the top and bottom elevations of the wall instead.  Does anyone have a work around for getting the elevations to select the opening itself instead? Or even better woudl be a door tag that includeds the top and bottom opening elevations within? Any helpful hints would be greatly appreciatd.


This user is offline

View Website

Fri, Jul 18, 2014 at 9:13:07 PM | Revit door families

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


"When i choose an elevation marker"    Are you talking about a spot elevation?



In your door tag you can add a mark for head height and sill height to the tag




This user is offline

View Website

Fri, Jul 18, 2014 at 9:31:44 PM | Revit door families

#3

perhart27


active

Joined: Wed, Apr 2, 2014
0 Posts
5 Stars: 1 Votes

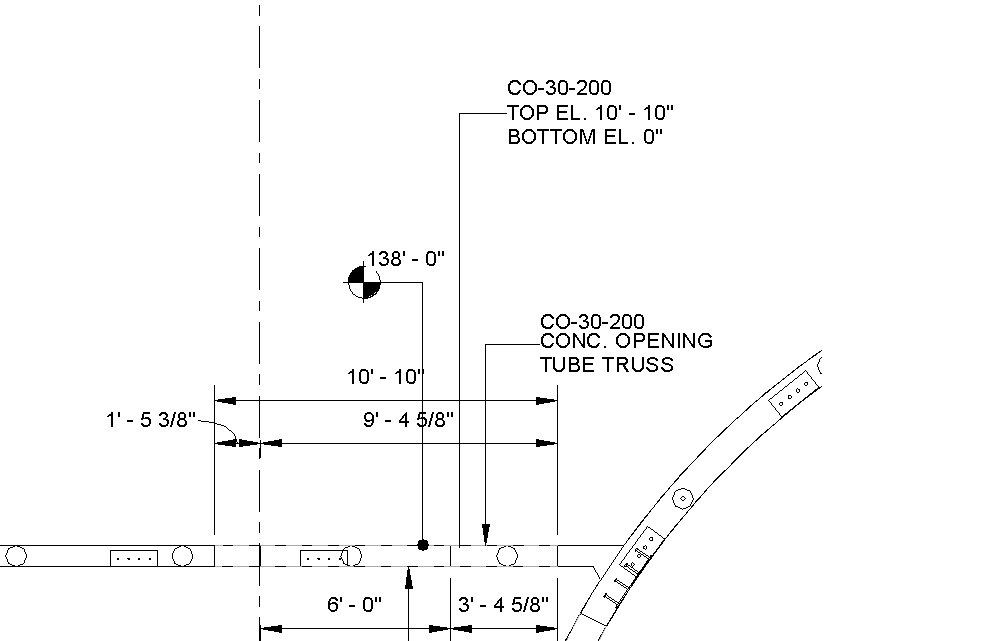

That seemed to work, but i have a base elevation of 100'-9" that i need to account for.  Any way to get those elevations to read a true project elevation instead of relative?



Attached Images


This user is offline

View Website

Fri, Jul 18, 2014 at 9:34:03 PM | Revit door families

#4

perhart27


active

Joined: Wed, Apr 2, 2014
0 Posts
5 Stars: 1 Votes


yes, a spot elevation marker is what i was referring to


This user is offline

View Website

Mon, Jul 21, 2014 at 12:45:35 PM | Revit door families

#5

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


I'm not sure what you mean, it's reading 100'-9", what do you want it to read?


This user is offline

View Website

Tue, Jul 22, 2014 at 3:05:00 PM | Revit door families

#6

perhart27


active

Joined: Wed, Apr 2, 2014
0 Posts
5 Stars: 1 Votes

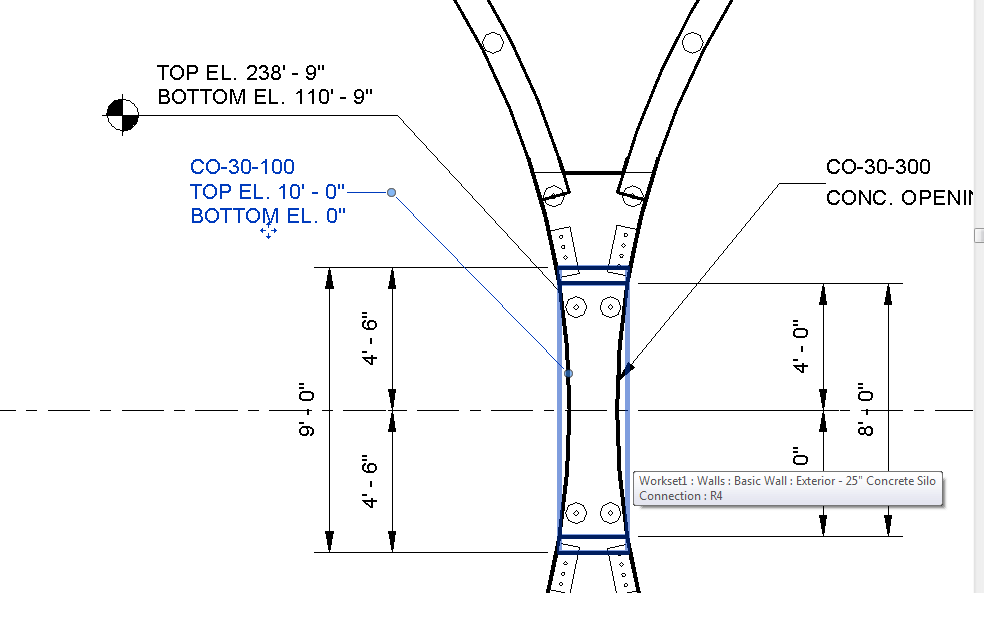

The door family acknowledges the sill height variables, but it does not convert them into a target project elevation.  It recognizes the opening for the door as elevation 0, when it should be reading elevation 100'-9", which is my project elevation accorduing to the levels i have created.



Attached Images


This user is offline

View Website

Tue, Jul 22, 2014 at 3:31:33 PM | Revit door families

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


Door sill and head is only relative to the level - never to the project so you should account for that ... maybe changing your spot elevation to RELATIVE and adding AFF as a suffix.


This user is offline
