Forums >> Revit Building >> Technical Support >> hide edges of a window family

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jul 7, 2014 at 9:08:12 PM | hide edges of a window family

#1

ArchimediaIE


active

Joined: Wed, Mar 12, 2014
0 Posts
No Rating


Hi -

I have created a window family which is an old style sash window with an arched brick head for a building survey. In order to do this I had to make a rectangular ope, add the window, head and cills, and fill in the rest of the jambs with brick to match the host wall.  There is a lot of detail to the interior part of the window and the internal jambs are chamfered so therefore I had to make the window ope the way I did.

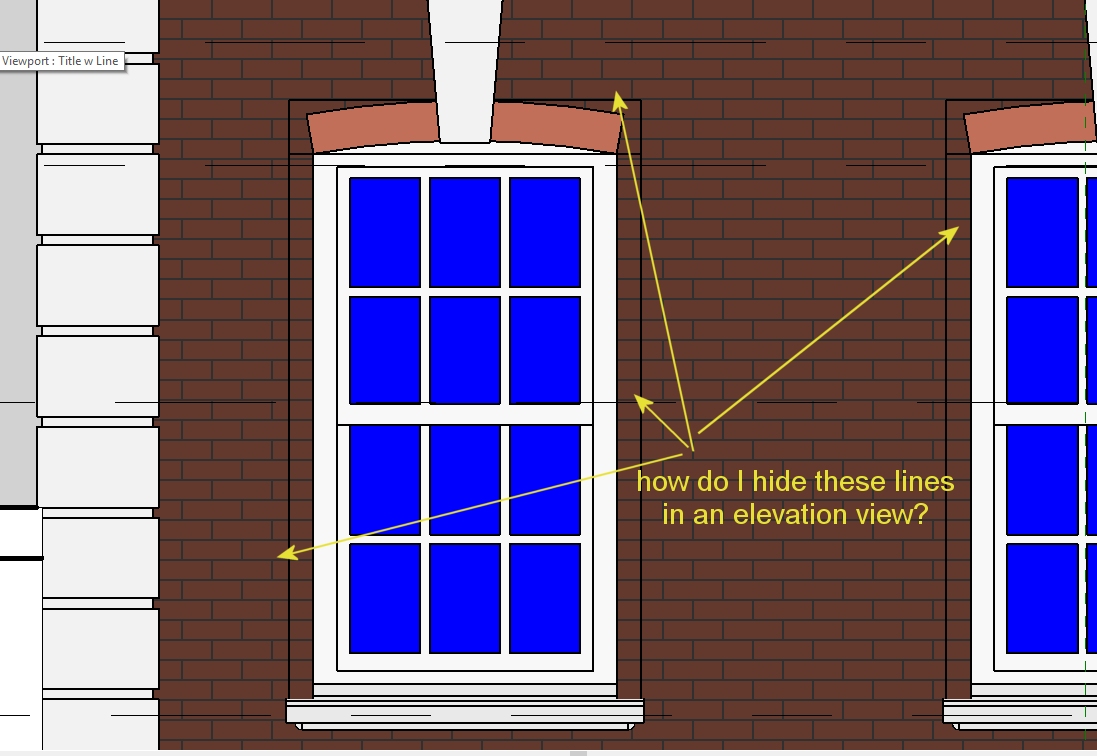

Unfortuatetely I now get a line around the window where it meets the wall as you can see from the attached image. Can anyone please advise as to how to hide these lines/edges in an elevation view?

I am using Revit 2014 by the way

Thanks.



Edited on: Tue, Jul 8, 2014 at 5:55:11 AM

Attached Images


This user is offline

View Website

Tue, Jul 8, 2014 at 3:17:21 AM | hide edges of a window family

#2

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 5 Votes


Hi ArchimediaIE,

1. Why does the wall rough opening have to be regutangular? it can be any shape.

2. My recommendation is to create a window family just like your are building a window.

    a. Create a window family with exact the same rough opening.

    b. Add trim pieces around and the sill applying to the surface of the wall.

Keep in mind, modeling it as you are building it.



Sorry, I mis-understood your problems.

Based on your descritions, the brick must be a veneer. You might use two walls, one is the structure wall, which has the window in it; the other the brick veneer. This way you will not have the lines, then apply the trims and the sill on the surface of the brick veneer.

The easier way to work around is using linework, use invisible line style for each line. But you have to hide those lines in each view. Under "Modify", "View Panel" click "Line Work" icon, select "Invisible Lines" in Line Style, then click each line you want to hide, sometimes you have to click on the same line several times, if that line has more than one on top of each other.



Edited on: Tue, Jul 8, 2014 at 12:07:45 AM

This user is offline



Tue, Jul 8, 2014 at 11:05:04 AM | hide edges of a window family

#3

ArchimediaIE


active

Joined: Wed, Mar 12, 2014
0 Posts
No Rating


Hi CDWdavid,

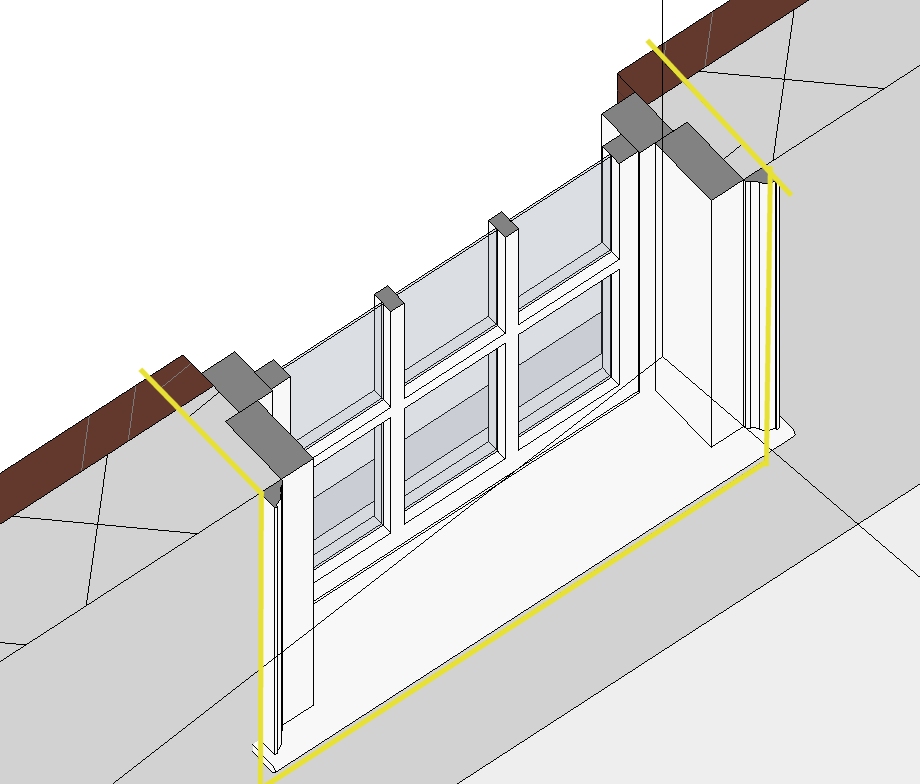

thank you so much for your advice, the reason why I didn't make the opening the same as the front opening and cill is because the inside is a different opening too, ie it's a differenr size to the front, please see the attached image. I am not sure if you can make a window opening which is different on one side of the wall to the other side, maybe this is possible ?
