Forums >> Revit Building >> Technical Support >> Unusual wall intersections in plan view

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jul 2, 2014 at 8:57:20 AM | Unusual wall intersections in plan view

#1

Djbelanger1


active

Joined: Fri, Jun 20, 2014
0 Posts
No Rating

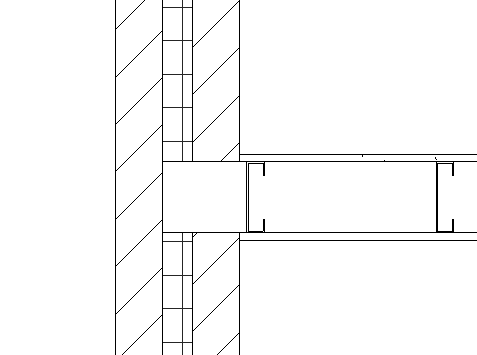

In the attached images, you can see that the core of my stud walls are penetrating into the other walls, even though I have it set up as a butt joint. Moving the extent of the wall profile in elevation does not change this problem either. Has anyone run into this and know how to fix it?



Thanks!



Attached Images


This user is offline



Wed, Jul 2, 2014 at 9:11:27 AM | Unusual wall intersections in plan view

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


Read this topic from your HELP - it is a priority issue:

http://help.autodesk.com/view/RVT/2015/ENU/?guid=GUID-1CCD1005-CBDA-4338-8D60-489095D4BB25


This user is offline



Wed, Jul 2, 2014 at 9:20:26 AM | Unusual wall intersections in plan view

#3

Djbelanger1


active

Joined: Fri, Jun 20, 2014
0 Posts
No Rating


Thanks so much! This was the problem.


This user is offline
