Forums >> Revit Structure >> Technical Support >> Revit tag with leader arrow under text
|
|
|
active
Joined: Tue, Aug 13, 2013
0 Posts
No Rating |

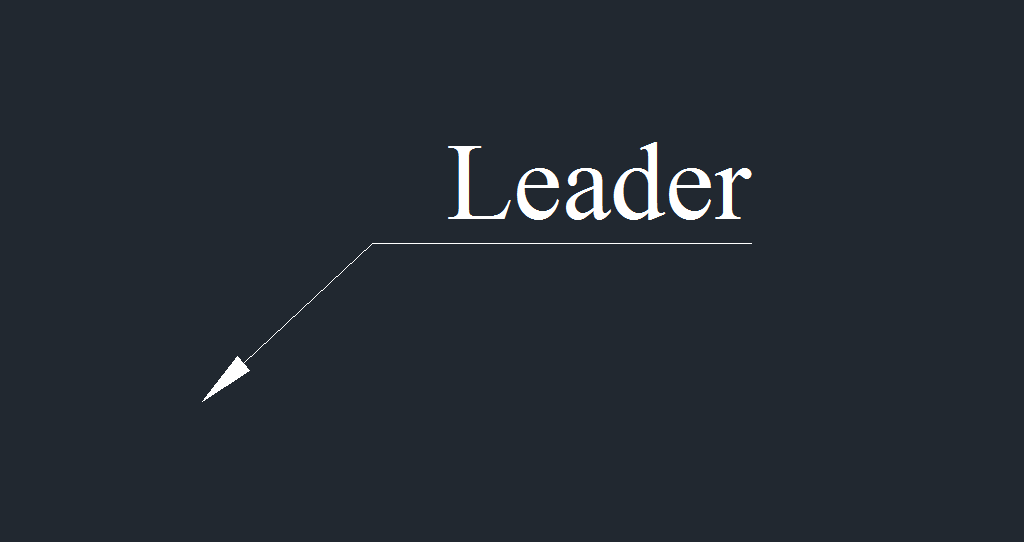

Can I do such a tag with that kind of leader? because in revit the arrows starts at the begining of the text no underline connected with arrow...
Thanks!
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Aug 13, 2013
0 Posts
No Rating |
Spot elevation is closer but it is not an editable family  just shows the elevation
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Sorry but no - there is no way to do this automatically. And, I doubt that AutoDESK will ever create this feature since there are very few users that do this. You may find some work arounds but I don't remember seeing any here.
oops - I just realized you said tag - not text. The leader for tags come from the center of geometry. You can try adding an invisible vertical line in your tag that is centered on the "underline" line. That vertical line wants to be at least double your normal tag height.
Edited on: Thu, Jun 19, 2014 at 9:30:14 AM
|
This user is offline |
|
|
|
active
Joined: Tue, Aug 13, 2013
0 Posts
No Rating |
ok, thanks
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Please read my amended post.
|
This user is offline |
|
|
|
