Forums >> Revit Building >> Technical Support >> Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jun 4, 2014 at 2:37:57 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#1

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating


I am trying to create a flat rectangular toposurface, very simple I know, but for some reason when I place the fourth point the surface splits into two parts.. Any ideas on how to correct this?



Attached Images


This user is offline



Wed, Jun 4, 2014 at 2:42:42 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


Are all of your points at the same elevation?


This user is offline

View Website

Wed, Jun 4, 2014 at 2:43:17 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


You have not told us enough about your process or the problem.

Are you sure the surface splits or is that a topo line?


This user is offline



Wed, Jun 4, 2014 at 3:06:04 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#4

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating


All points are set at the default 0.0m. There shouldn't be any topo lines because it is a flat surface with all points set at 0.0m. Normally the fourth point would just extend the toposurface, but now it creates the square toposurface and created this random split


This user is offline



Wed, Jun 4, 2014 at 3:08:14 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#5

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating

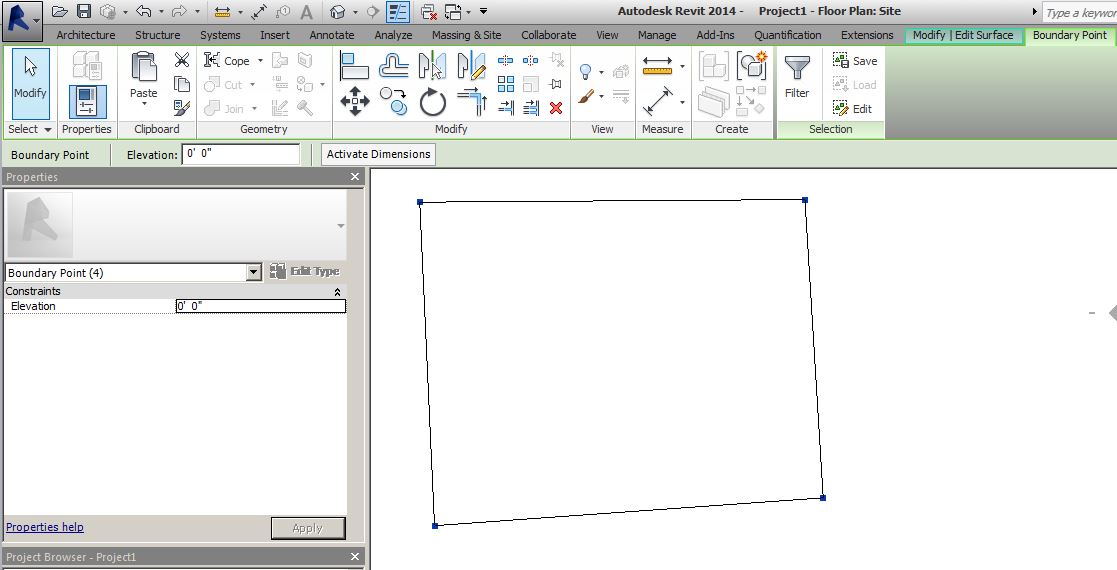

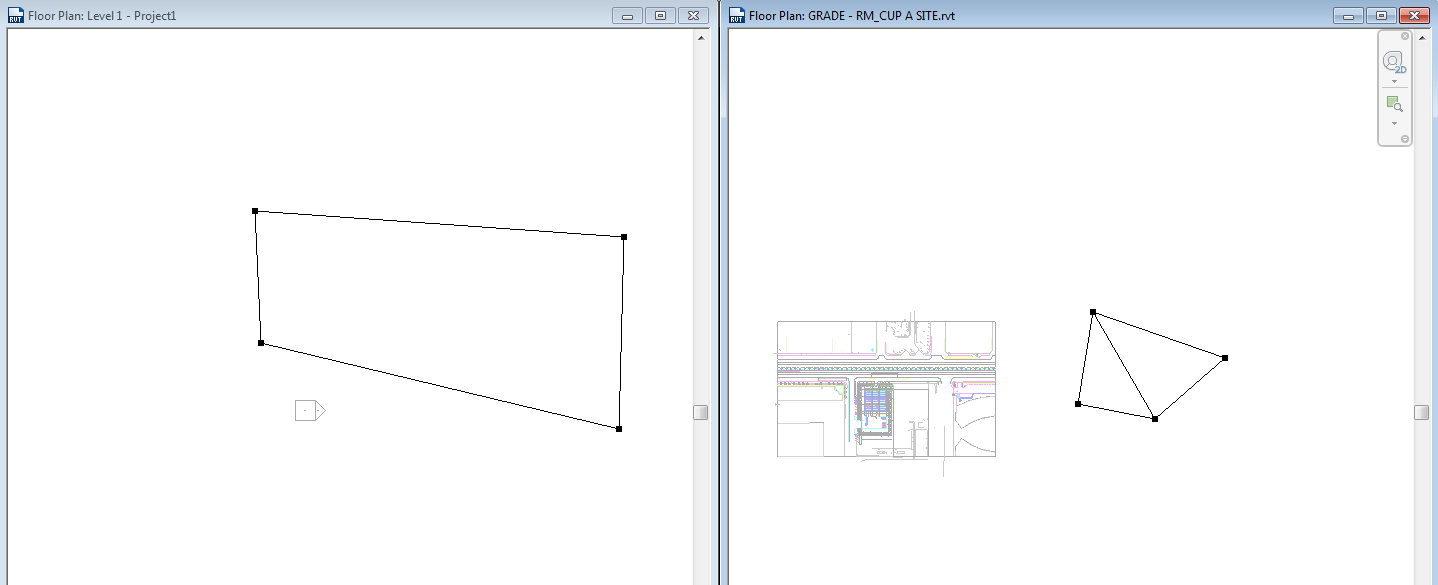

On the left is a new revit file, I have done the same process as the created toposurface on the right



Attached Images


This user is offline



Wed, Jun 4, 2014 at 3:08:48 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Sorry but we don't think you did what you say.

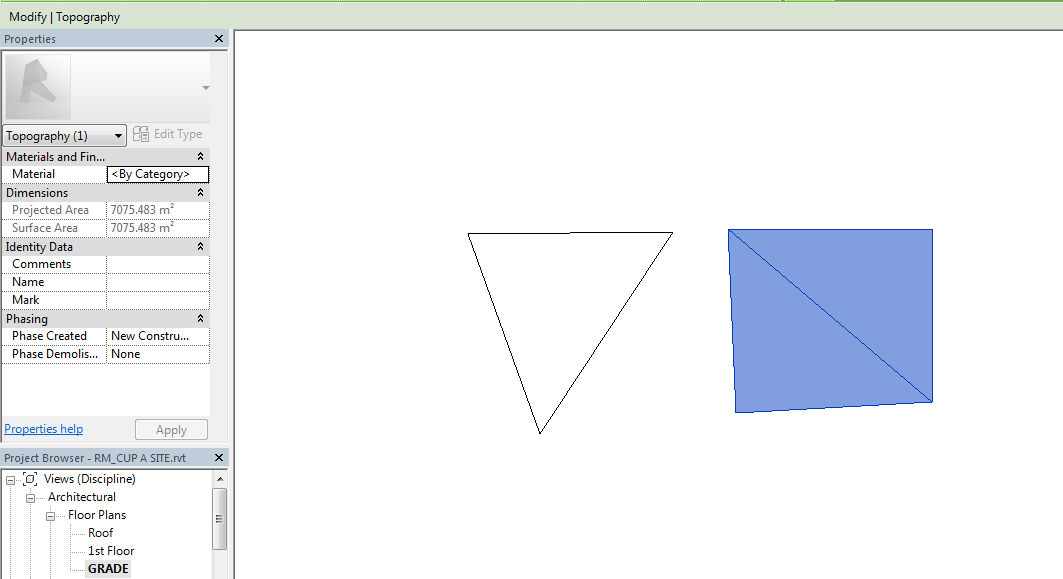

Click on the edge of the topo, pick edit surface, then window it and post the image of the properties like I have.



Attached Images


This user is offline



Wed, Jun 4, 2014 at 3:12:12 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#7

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating

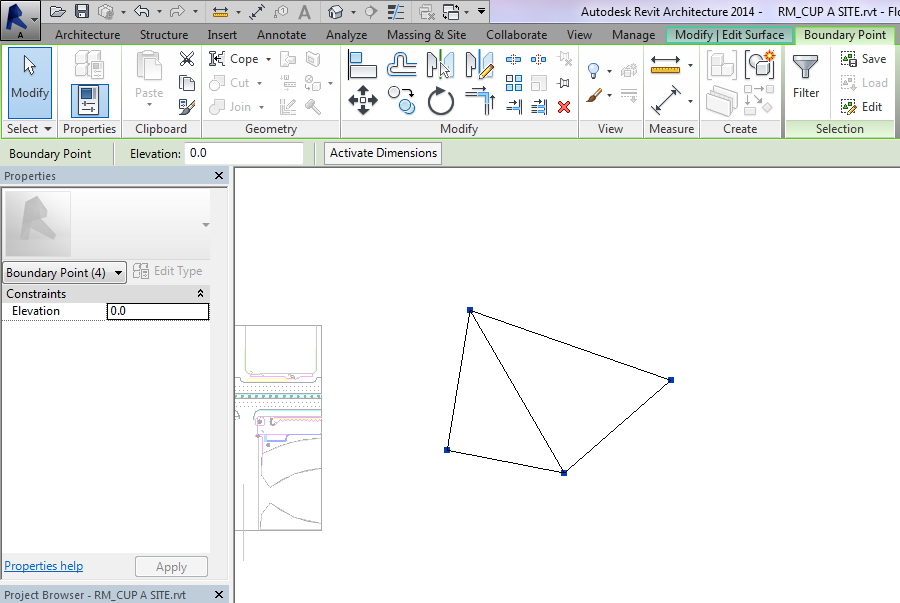

Attached Images


This user is offline



Wed, Jun 4, 2014 at 3:22:08 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#8

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


Does the line stay there when you finish the sketch?


This user is offline

View Website

Wed, Jun 4, 2014 at 3:23:09 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


That is strange.   How do you only have one decimal place on your elevation properties?  I always have three decimal places on metric or feet settings.  Could it be that a point is at a different non-rounded elevation?


This user is offline



Wed, Jun 4, 2014 at 3:40:02 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#10

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating


The line does stay after the sketch is finished.

The reason there's only one decimal place is because the 'rounding' under project units is set to '1 decimal place'. I wasn't the one who originally created the file, maybe a point is at a different non-rounded elevation, how could I check for this?




This user is offline



Wed, Jun 4, 2014 at 4:00:54 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#11

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Window select all your points and in the propertise, replace that 0.0 with 0.00 and see what happens.


This user is offline



Wed, Jun 4, 2014 at 4:10:06 PM | Simple Rectangular Toposurface Dividing Automatically... (Revit Arch 2014)

#12

cyoung603


active

Joined: Sat, Feb 16, 2013
0 Posts
No Rating


Still nothing. The Revit tech at my company just came in so i'll see what he can do to help. Thanks Teafoe5 and WWHub.


This user is offline
