Forums >> Revit Building >> Technical Support >> Align texture on In-place component

KCren

active

Joined: Sat, Feb 19, 2011
0 Posts
No Rating

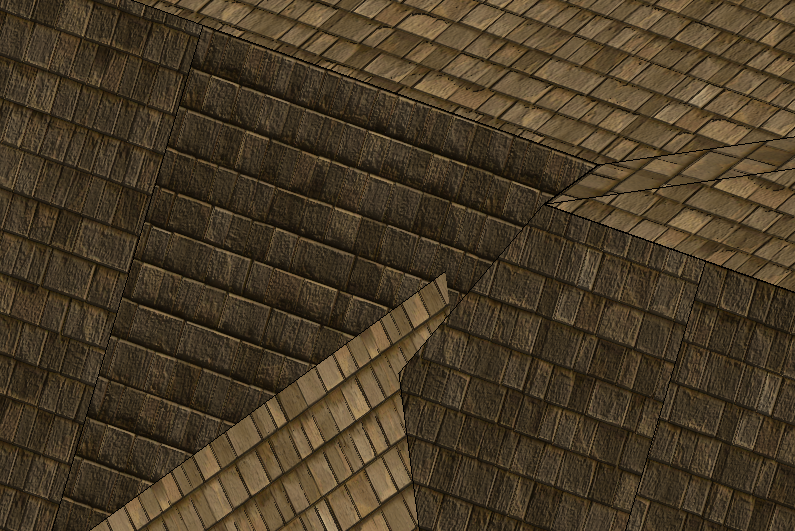

The shingles on the roof don't match up. I used the texture alignment and tried to align the pattern. This method works on flat surfaces which I have done successfully before.

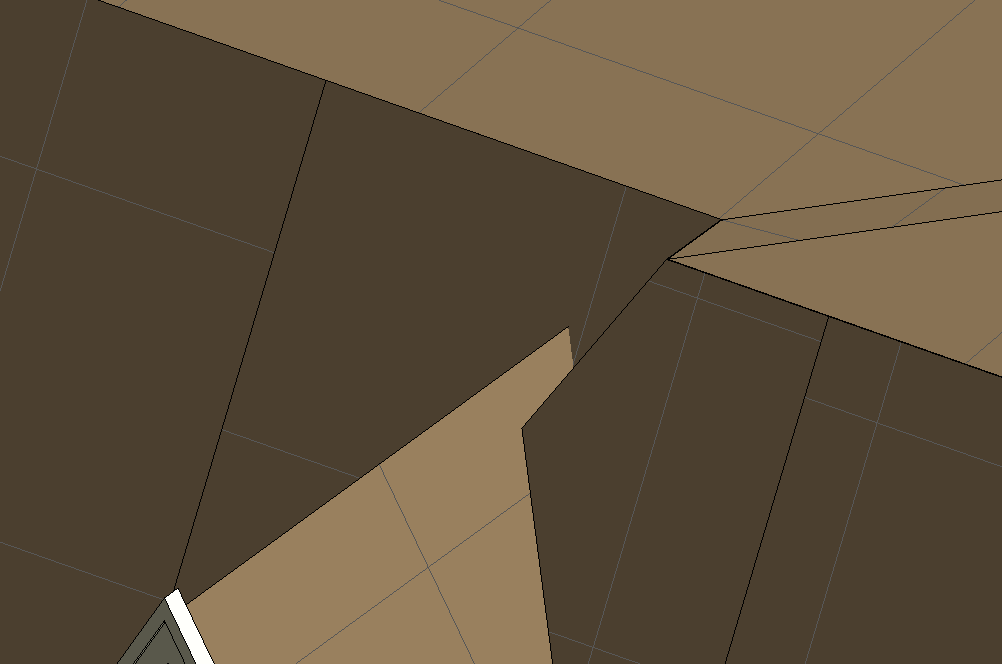

However this is an in-place component comprised of sweeps and extrusions. The surfaces are curved and multiple pieces. I cannot move the pattern tiles using the align tool. Aside from creating a seperate texture for each surface is there a more convinient method to line up the patterns?
