    how can i have an item with color when i having my visual style in hidden line, i want to do an image like the next



 here is the link:http://screencast.com/t/pOSdDjjRsnYe



   thanks


This user is offline



Wed, May 7, 2014 at 6:30:10 AM | CONCEPT IMAGE

#2

Graeme6226


active

Joined: Tue, Sep 20, 2011
0 Posts
5 Stars: 1 Votes

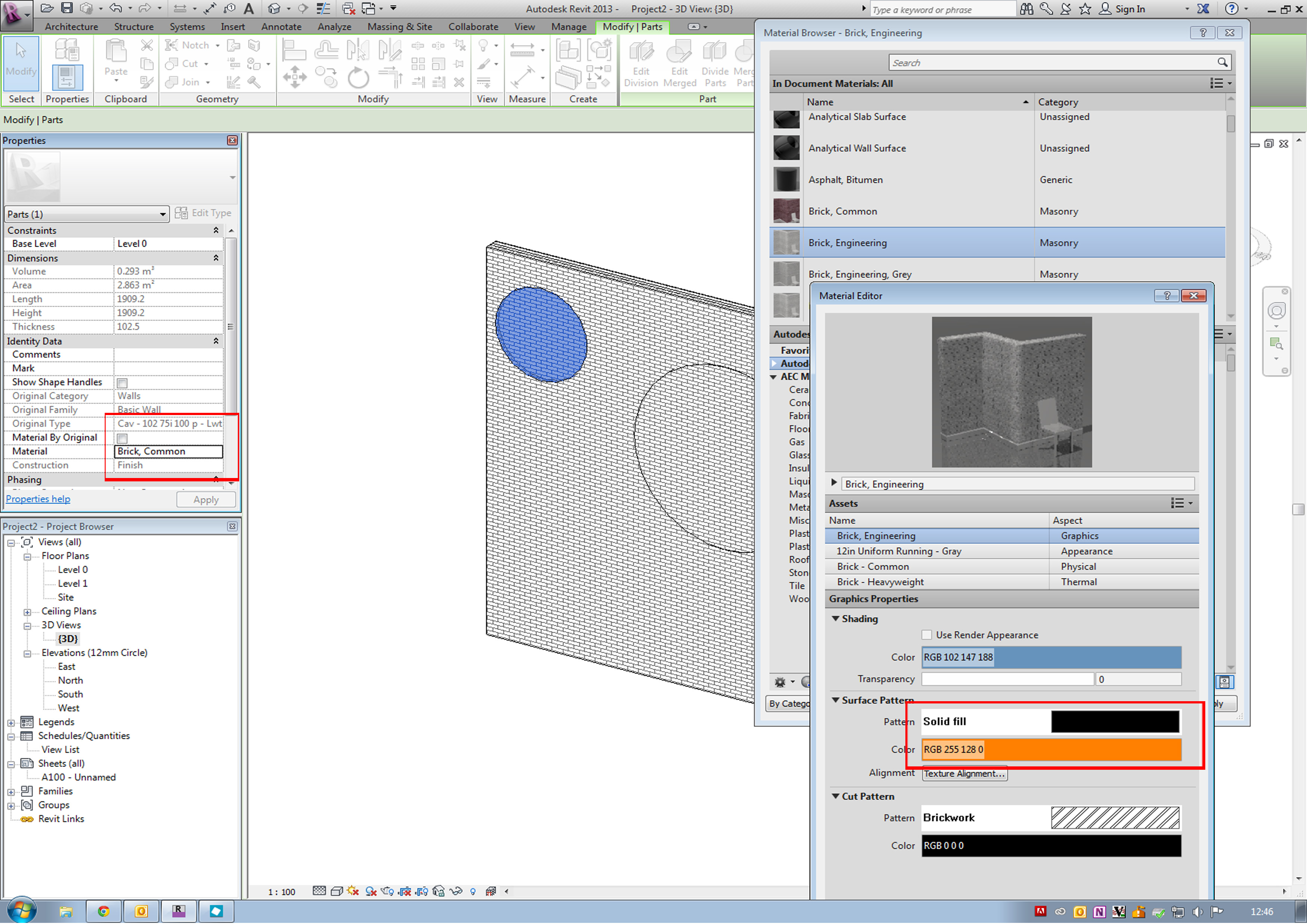

You can go into the material browser and edit the material so that the surface pattern has a colour to it. This means when you change the visibility graphics to Hidden line, every material that you have overridden with turn to the allocated colour.

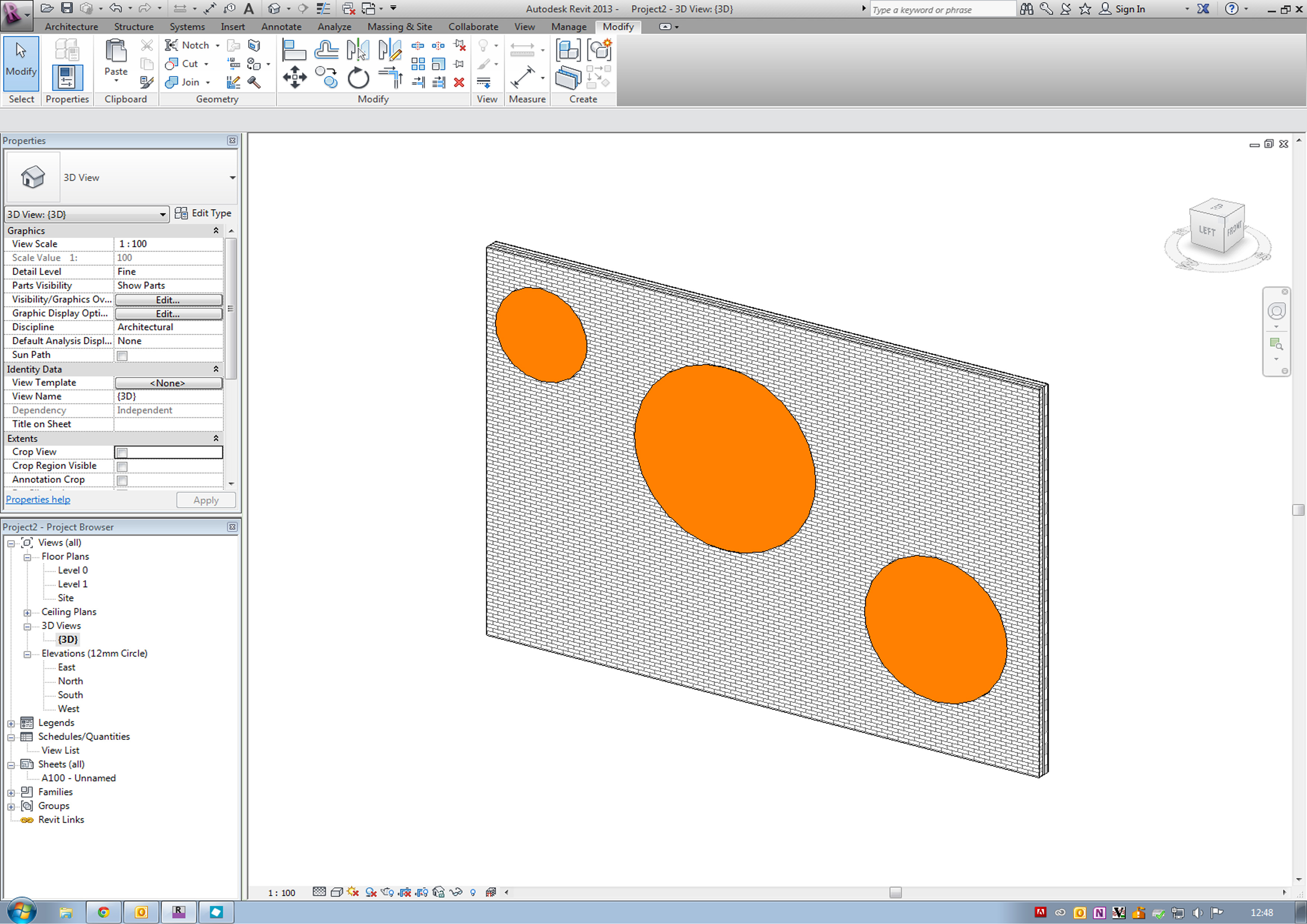

As shown in attachements:



This user is offline



Wed, May 7, 2014 at 6:52:01 AM | CONCEPT IMAGE

#3

Graeme6226


active

Joined: Tue, Sep 20, 2011
0 Posts
5 Stars: 1 Votes

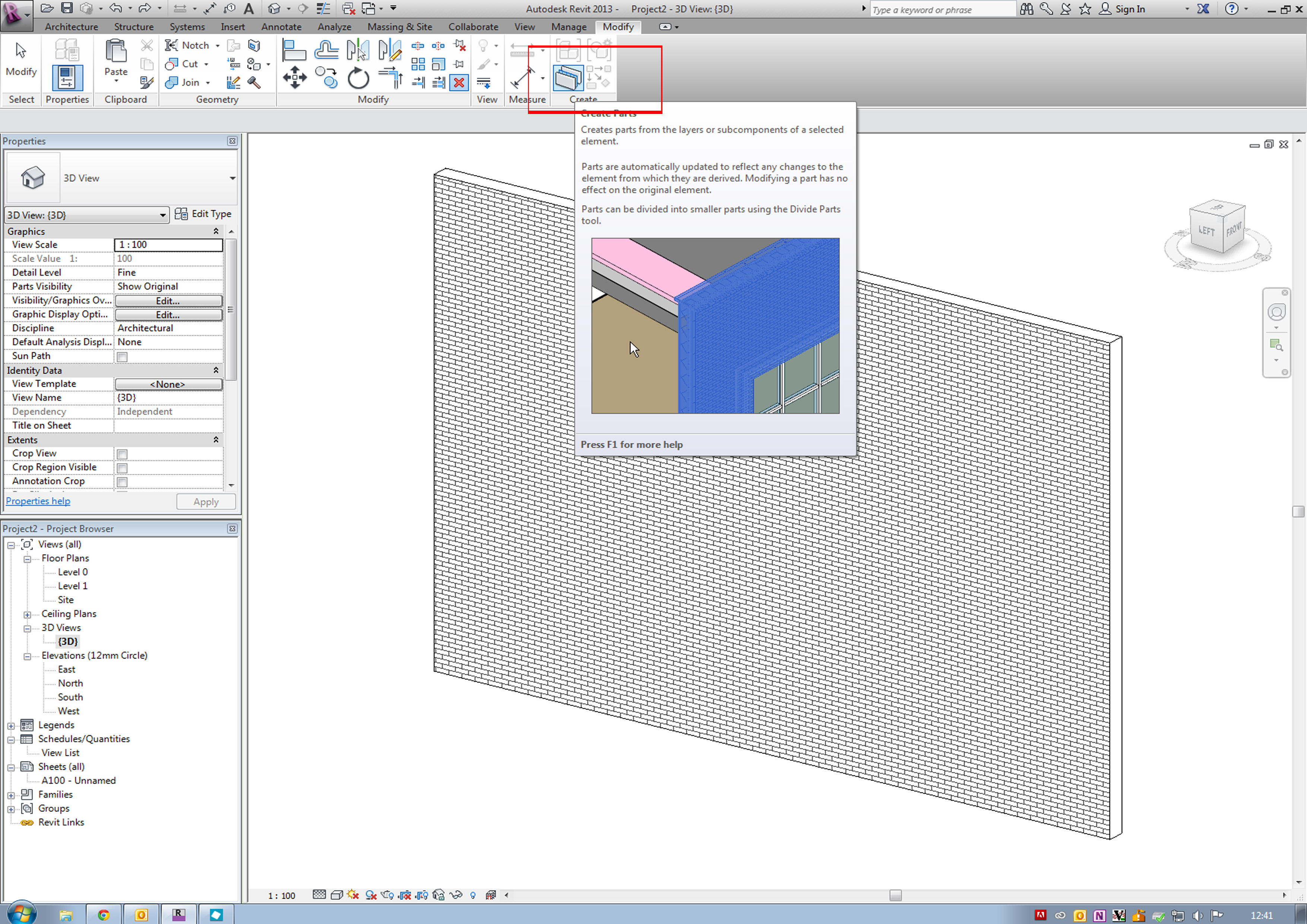

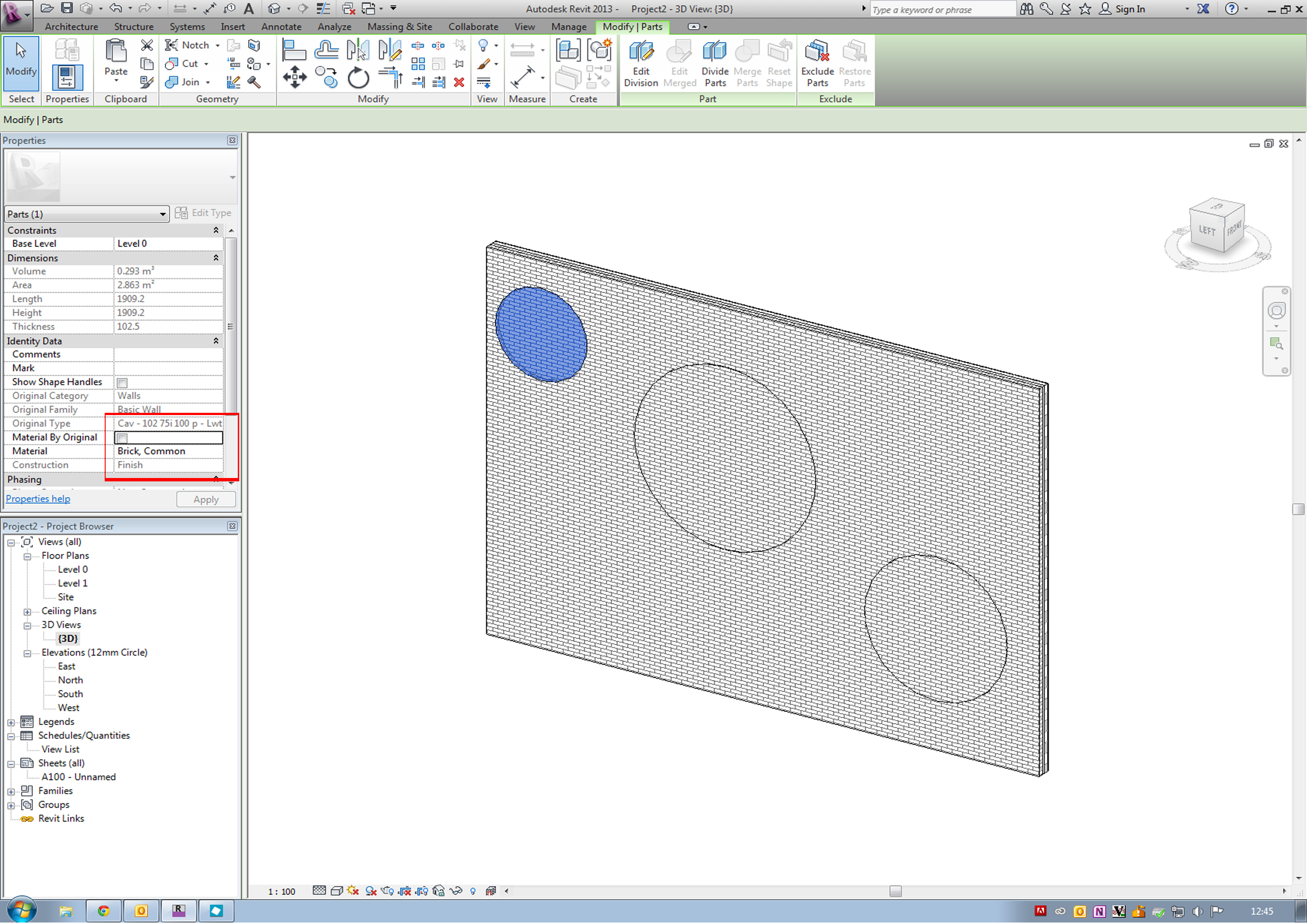

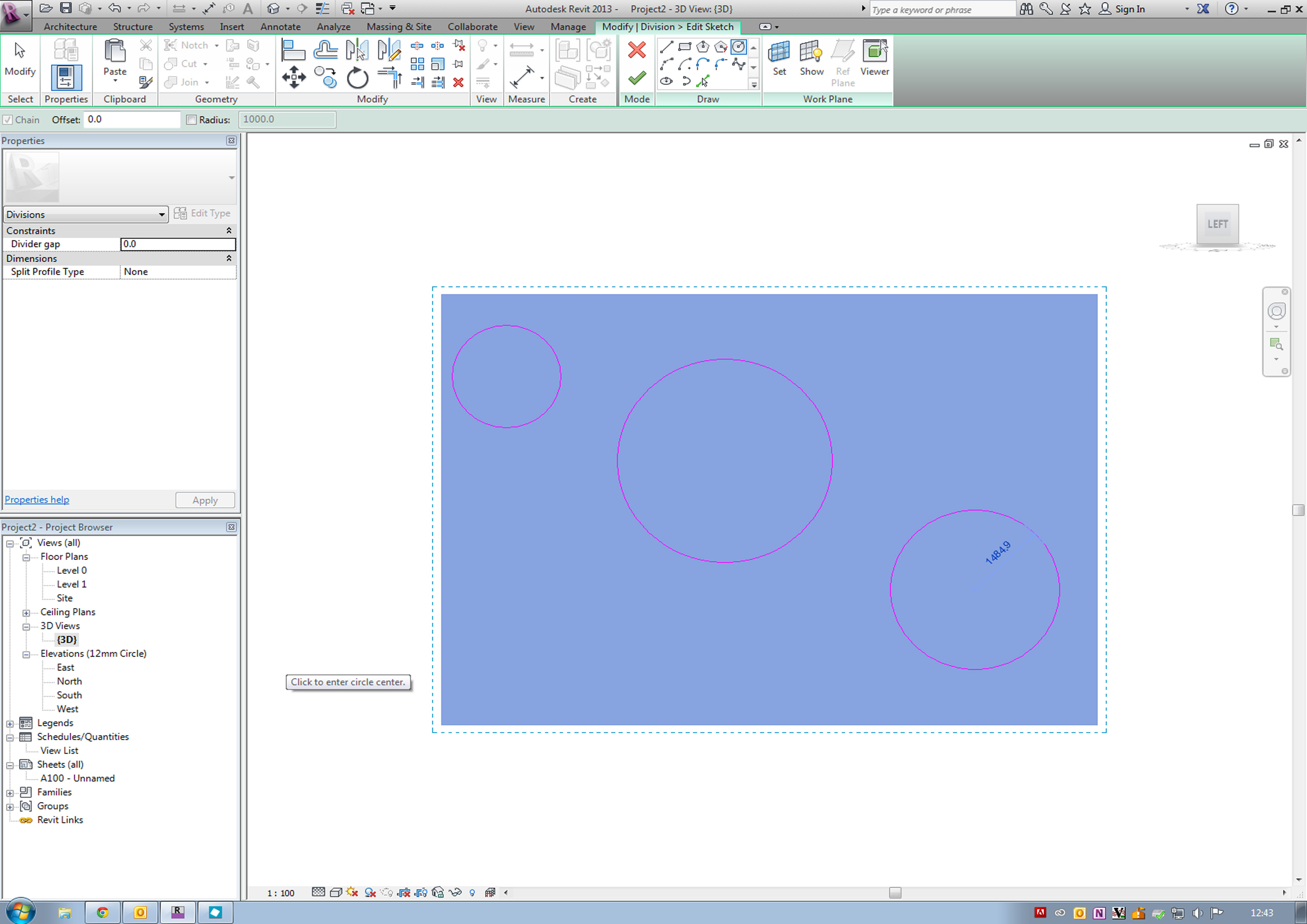

Or alternatively, you could give a single element multiply materials by creating parts, giving each part its own unique material.

As attached>>



Attached Images


This user is offline



Wed, May 7, 2014 at 8:57:08 AM | CONCEPT IMAGE

#4

yojano


active

Joined: Wed, Apr 9, 2014
0 Posts
No Rating


hi, thanks for the reply, i did everything you ask me to do but i doesnt work as i want, i did it on a wall stone hatch and it just change the hatch lines color.



here i have video show mass that im using as pool water and i want to make it looks like water in hidden line visual style.:http://screencast.com/t/xP971TnPN



  thanks.


This user is offline



Wed, May 7, 2014 at 9:07:39 AM | CONCEPT IMAGE

#5

Graeme6226


active

Joined: Tue, Sep 20, 2011
0 Posts
5 Stars: 1 Votes


Within your water texture, material browser, i did notice that you didnt have a surface pattern. If you change the surface pattern to solid, then your colour should appear.

This will only work with colours, getting material textures to appear in hidden line mode is another thing. I hanvt tried that yet!


This user is offline



Thu, May 8, 2014 at 8:47:25 AM | CONCEPT IMAGE

#6

yojano


active

Joined: Wed, Apr 9, 2014
0 Posts
No Rating


ok, thanks, im trying to do the same with the sliding door that im using and i cant change the color of it, ill be trying. if you get some information about the material texture in hidden line mode, please let me know.



thanks.


This user is offline



Sun, May 11, 2014 at 12:51:09 PM | CONCEPT IMAGE

#7

Tmightymike


active

Joined: Wed, Apr 23, 2014
0 Posts
5 Stars: 1 Votes


Hi Yo,

Have you verified that the image you posted in the original thread message was indeed a revit project?

IMHO, it appears to be a sketchup model. Sketchup has some rendering tools that make this affect much easier to

achieve than in Revit, i.e. line jitter, broken line, layering color over non colored areas (you'll need photoshop or gimp to achieve this).

Check out the Denis Technique - http://sketchucation.com/resources/tutorials/200-dennis-technique

I've attached an image I completed for a client utilizing the Denis Technique

(Side note: I'm fairly new to revit but have been modeling and rendering in sketchup for several years now.)

Hope this help and good modeling to you  Smile





Attached Images


This user is offline



Wed, May 14, 2014 at 1:13:14 PM | CONCEPT IMAGE

#8

yojano


active

Joined: Wed, Apr 9, 2014
0 Posts
No Rating


ok, thank you verry much. i will try it, sorry about the late answer. it looks a  good idea.



 thank Tmightymike


This user is offline
