Hi Guys,

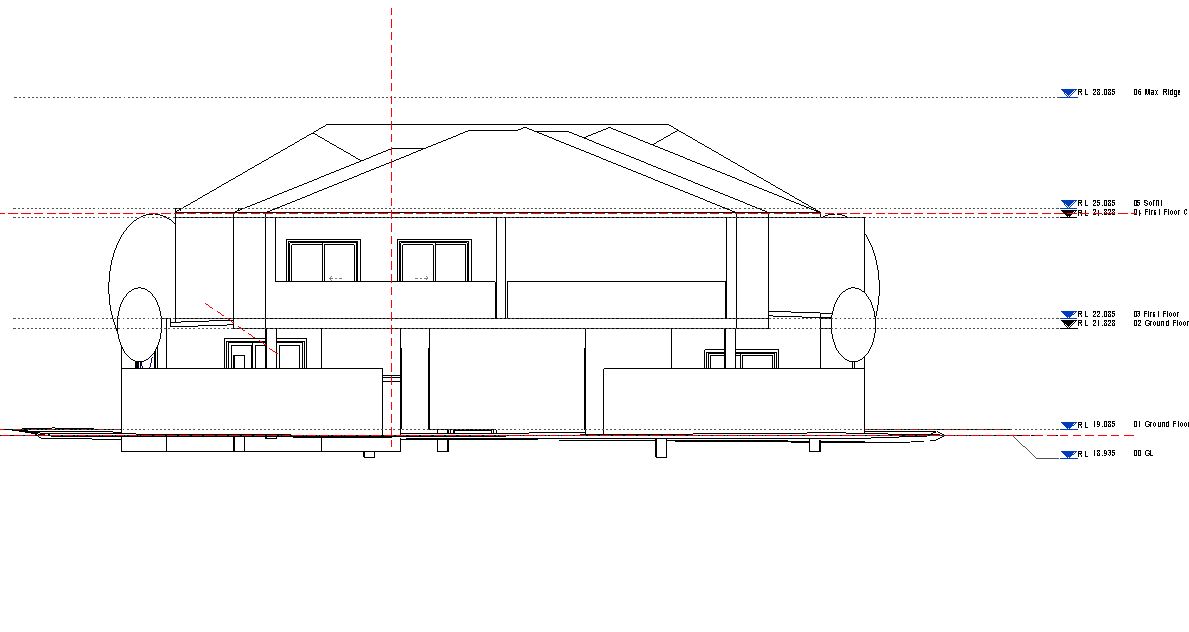

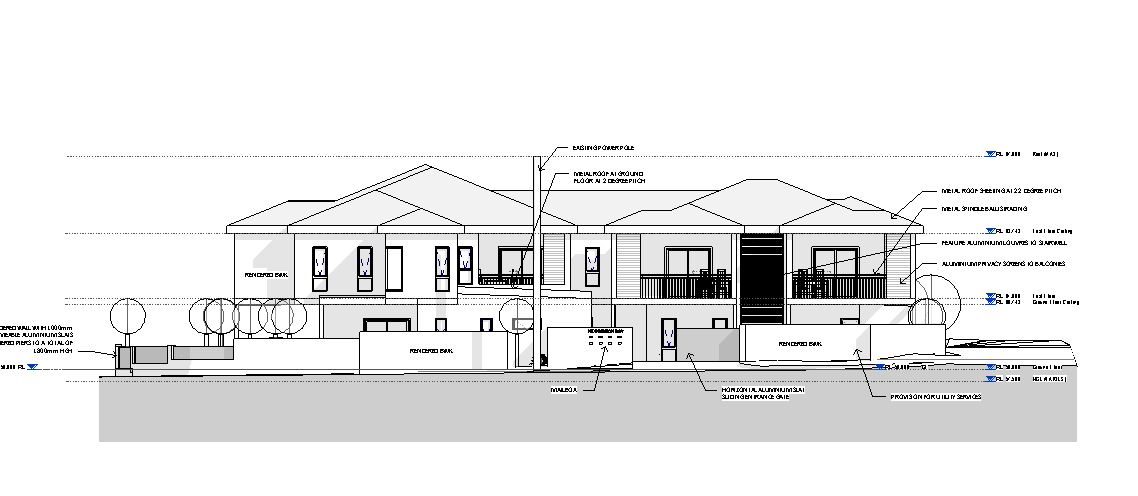

Really embarrasing but I have created a model and without remembering I managed to show the ground in the elevation as a solid hatch (see pic attached), Now I am working on a different project (pic attached) and cannot figure out how to show the ground in a similar manner... After looking at various posts on here this is so basic that it goes beyond such a simple matter :S

Any assistance would be hugely appreciated..

Tim

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Make sure your elevation line cuts the topo.

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

TimGarry

active

Joined: Sun, Mar 9, 2014
0 Posts
No Rating

And how do I check that, I know you can change the elevation depth in plan but when in the elevation, when I hit the light bulb to re-crop view there is nothing below the ground line.

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Elevation cuts the gound..... In a plan view where you can see the elevation marker and the topography - make sure the elevation line is inside the topo limits.

This user is offline

TimGarry

active

Joined: Sun, Mar 9, 2014
0 Posts
No Rating

Brilliant, didn't realise the elevation cuts were outside the topo..

Cheers mate
