Tue, Apr 1, 2014 at 2:59:33 PM | how to make this beam

#1

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes

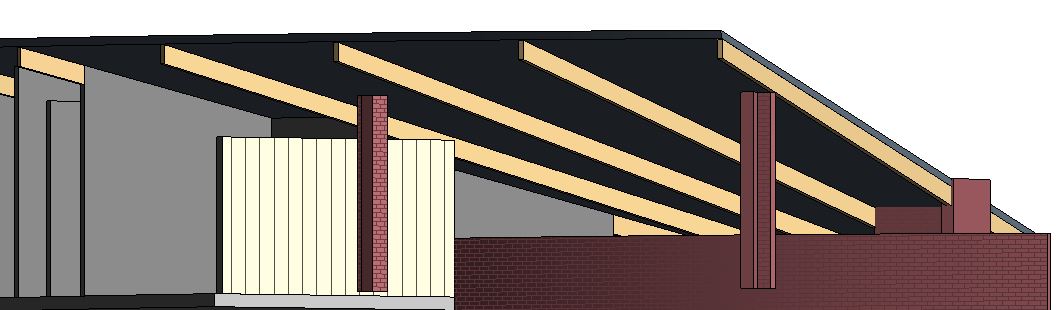

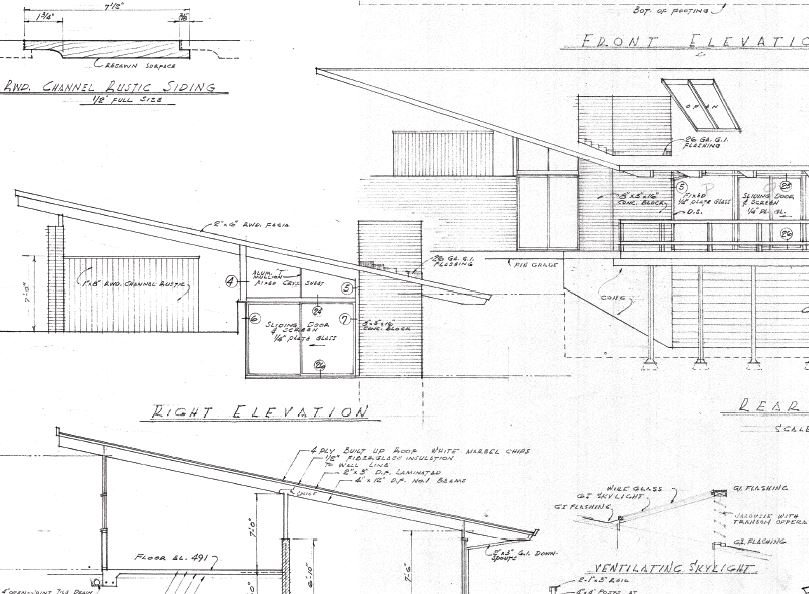

I have a project with beams that are on a radial plan, and also slope. the beams themselves have a tapered end. and I can't figure out how to make myself a part, can someone please tell me what to make so that I can make something thats rotateable in plan and slantable in section. doesnt need to be "structural"



Attached Images


This user is offline

View Website

Tue, Apr 1, 2014 at 3:03:36 PM | how to make this beam

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


How many of these?

If one - then in-place extrusion using a vertical work plane you draw.

Otherwise - create a family.  Simple extrusion.


This user is offline



Tue, Apr 1, 2014 at 4:09:09 PM | how to make this beam

#3

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes


SoI have many that fan out in plan. so if I make a family, one being extruded.... I have to draw the extrusion with the slope already built in...because you cant rotate it in section... but I found in this short interim, that a sweep can be. you just have to draw one profile of one beam. and the path is 3.5" long. then you can rotate it in any way you want. its the extrusion tool that limited what I wanted. but you're right Hub, I dont need the slope to change, so I could have gone with what you suggested to.

Thanks



Attached Images


This user is offline

View Website
