hi there,

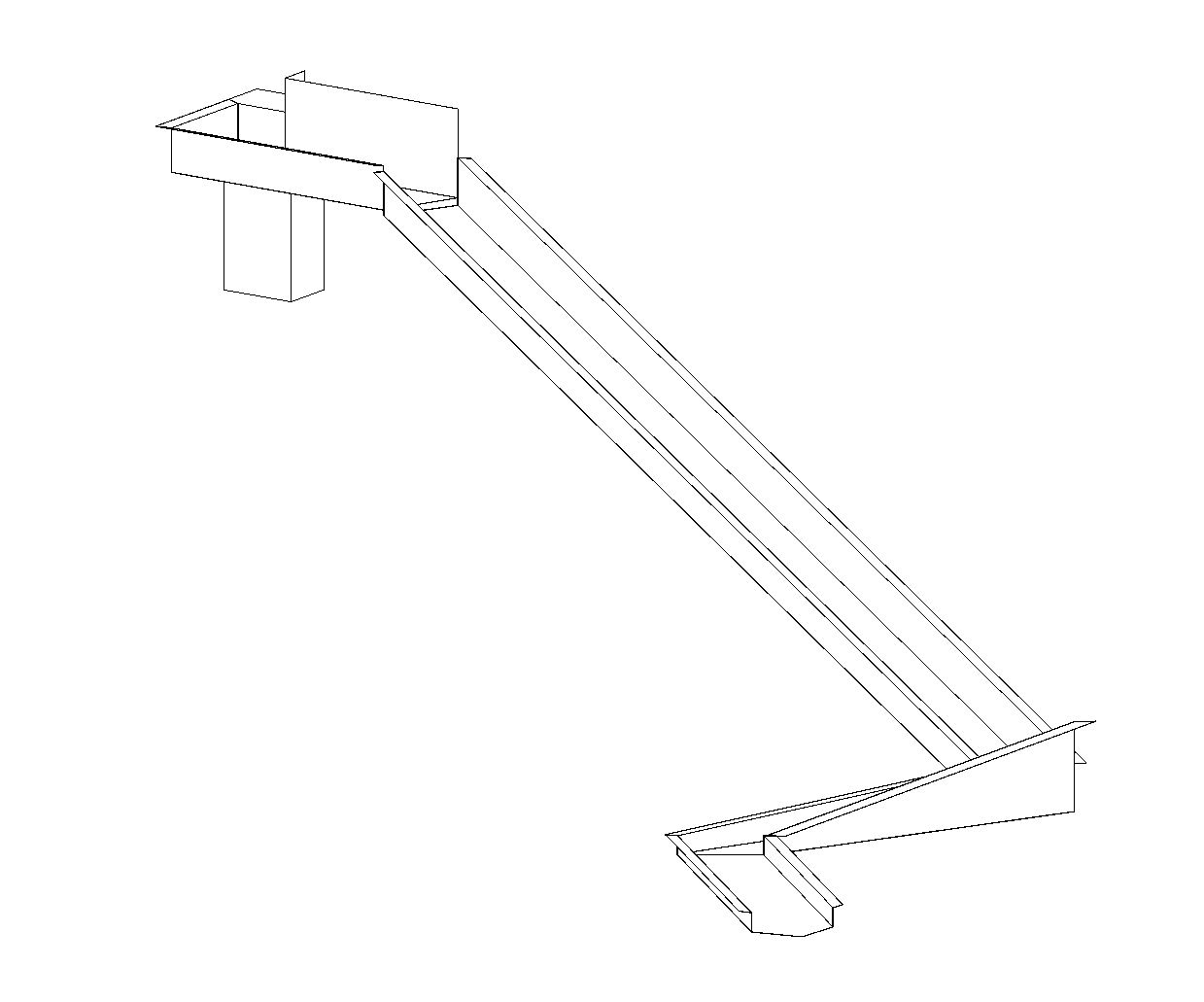

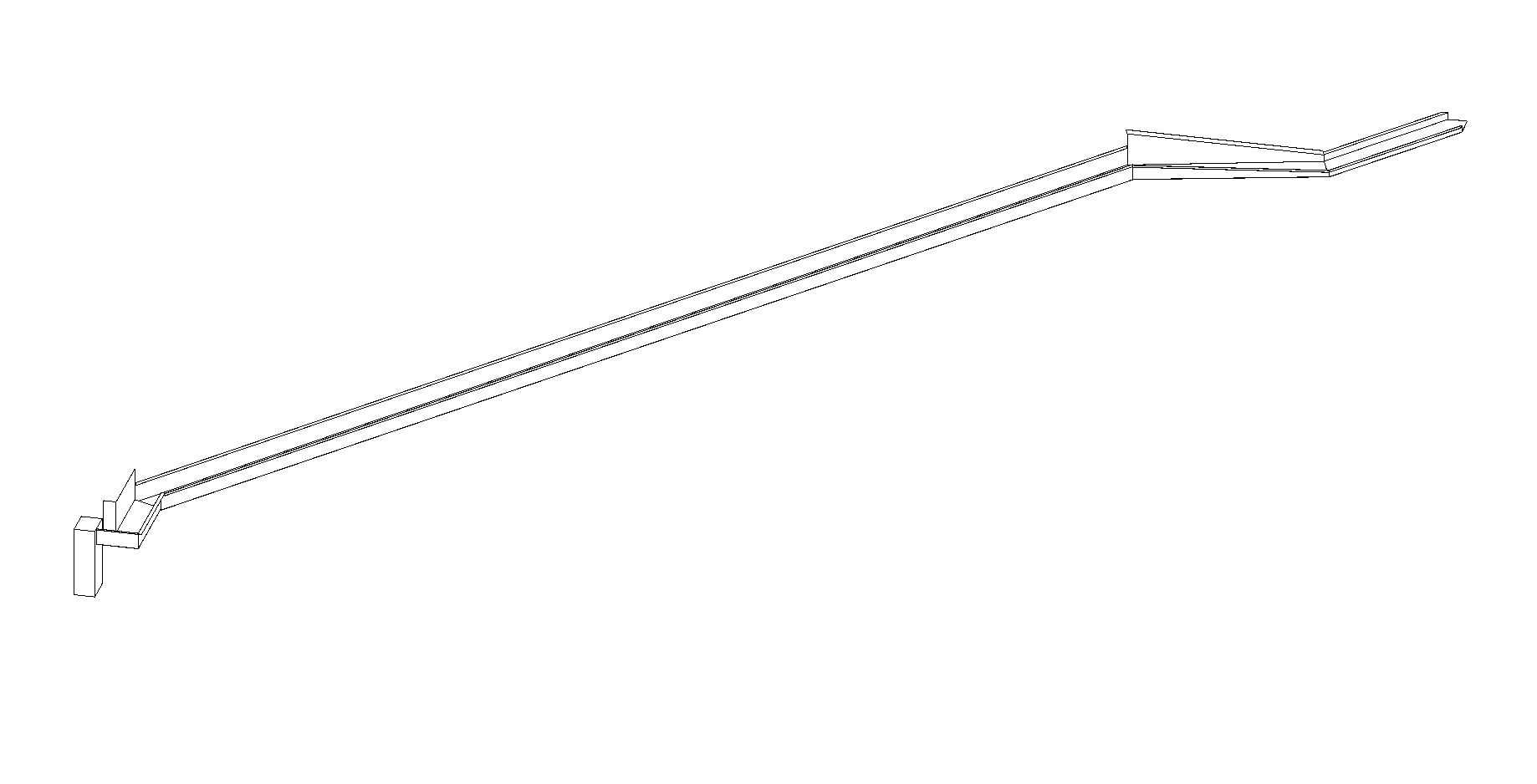

I am drawing a relatively interesting(!!) Valley/box gutter, that doesn't just follow the valley, but turns 90 degrees against a wall, and then down another valley to butt against another wall, kind of like a waterfall shape almost. I can do all of that, even with a few pitch changes, but the profile where it runs along the walls is different. Wondering if anyone has any smart ways of doing it, as i have just cut and shut my model and it is very ugly. As you can see in the images, all my junctions do not lineup either. Any help would be appreciated. Unfortunately it will be seen in a few renders, so it does need to look nicer.
Thanks
|
This user is offline |
|
 | |
|
|
active
Joined: Thu, Aug 23, 2012
5 Posts
|
Sorry forgot to say, am using Revit 2014.
|
