hi everyone

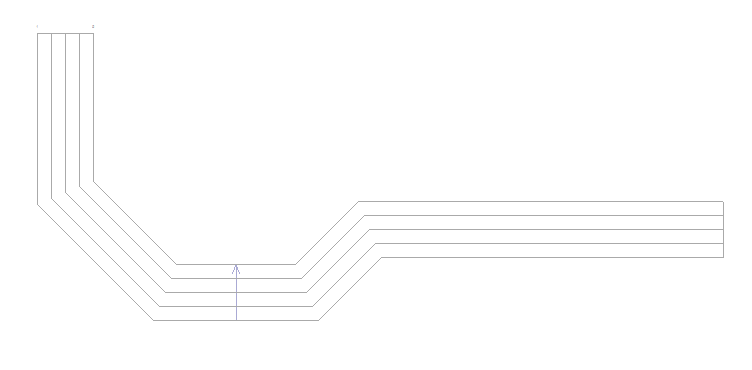

I'm trying to create a stair leading onto a patio by sketching. I sketch the boundaries and then trace the slab edge

for theoutline. I then offset the treads to get the rest. I'm using the concrete stairs with the 150 waist.

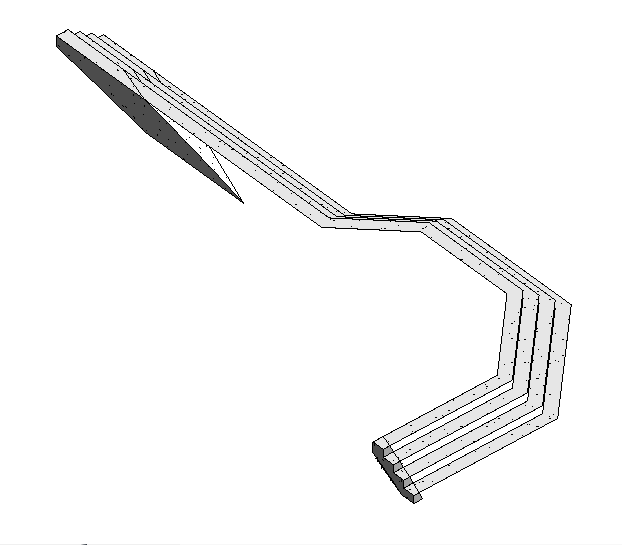

the problem is that im not getting full stairs. The treads show up but the rest of the mass is doing something weird.

Pics attached and any help would be very much appreciated as i dont think my desk can take much more of my head hitting it.

Attached Images

This user is offline

MichaelH

active

Joined: Fri, Nov 5, 2010
0 Posts
No Rating

Anyone?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Read your HELP again on sketching stairs.

We can't answer anything more because you haven't given us anything.

This user is offline

MichaelH

active

Joined: Fri, Nov 5, 2010
0 Posts
No Rating

The irony of coming from the HELP section and asking for help only to be told to go back  to the HELP section

I've looked at the help topic and it does nothing to tell me whats gone wrong.

What info would you need to help me?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Obviously , first what Revit? and what updates do you have installed.  We ask that you always start with that because often this is the problem.

If you could place this in a small project (everything else purged) that would be best.  Otherwise we would need to see the sketch, what lines are what, and your stair properties.  <<< Images of all of these.
