Forums >> Revit Building >> Technical Support >> How to explode anonmeetric walls for detail drawings

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Feb 24, 2014 at 7:42:29 PM | How to explode anonmeetric walls for detail drawings

#1

CinnamonBird


active

Joined: Sun, Oct 7, 2012
0 Posts
1 Stars: 2 Votes


How do you do this?  To show layers in 3-d view exploded for detail draings at a scale of 3" = 1'?



Same goes to cabinets?  how do you explode these for detail drawings?


This user is offline

View Website

Mon, Feb 24, 2014 at 7:51:38 PM | How to explode anonmeetric walls for detail drawings

#2

CinnamonBird


active

Joined: Sun, Oct 7, 2012
0 Posts
1 Stars: 2 Votes


I have included the wall I want to explode that is a model w 3 layers of plaster



Attached Images


This user is offline

View Website

Mon, Feb 24, 2014 at 8:03:03 PM | How to explode anonmeetric walls for detail drawings

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


You can't explode Revit modeled elements.  I'm not following why you want to explode it to detail?  If you are trying to make it have seperate layers you can click on the wall and use the Create Parts tool, but be careful once you use this command you cannot change it back to a single wall.



Edited on: Mon, Feb 24, 2014 at 2:04:55 PM

This user is offline

View Website

Mon, Feb 24, 2014 at 8:06:30 PM | How to explode anonmeetric walls for detail drawings

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes


This video may tell you how to do what you want:

http://www.youtube.com/watch?v=NO67r1K8ORQ


This user is offline



Tue, Feb 25, 2014 at 12:19:58 AM | How to explode anonmeetric walls for detail drawings

#5

CinnamonBird


active

Joined: Sun, Oct 7, 2012
0 Posts
1 Stars: 2 Votes


the video didn't help.  I have attached an image of what I mean by axonmetric explosion.  I need to draw this in recit.



How would I go about it?

thanks

Veronica



Attached Images


This user is offline

View Website

Tue, Feb 25, 2014 at 9:56:33 AM | How to explode anonmeetric walls for detail drawings

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


You have to use "Parts" : http://help.autodesk.com/view/RVT/2014/ENU/?guid=GUID-FF4B3E7D-0804-4EE4-9384-C78255B5480C




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Feb 25, 2014 at 1:35:20 PM | How to explode anonmeetric walls for detail drawings

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes


You need to watch the video I pointed to again and be creative in your thinking.



Parts allow you to partially hide portions of layers of a wall, for instance, in a view to reveal sub layers .... exactly what you want.






This user is offline



Wed, Feb 26, 2014 at 11:19:00 AM | How to explode anonmeetric walls for detail drawings

#8

KimTaurus


active
KimTaurus Avatar

Joined: Fri, Apr 20, 2007
5 Posts
5 Stars: 3 Votes


Here are a few blogs that may help:

http://grevity.blogspot.be/2012/04/breaking-up-is-hard-to-do.html

http://synergiscadblog.com/tag/revit-parts/




This user is offline

View Website

Wed, Feb 26, 2014 at 6:20:56 PM | How to explode anonmeetric walls for detail drawings

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes


CinnamonBird,



You keep reposting your last post so I keep deleting it.  I believe we have answered your question unless you have a new one.


This user is offline



Thu, Feb 27, 2014 at 1:08:48 AM | How to explode anonmeetric walls for detail drawings

#10

CinnamonBird


active

Joined: Sun, Oct 7, 2012
0 Posts
1 Stars: 2 Votes


the video didn't help.  I have attached an image of what I mean by axonmetric explosion.  I need to draw this in recit.



How would I go about it?

thanks

Veronica



PLEASE QUIT REFRESHING YOUR PREVIOUS POST!!!!!



Edited on: Thu, Feb 27, 2014 at 7:25:39 AM

Attached Images


This user is offline

View Website

Fri, Feb 28, 2014 at 11:04:59 AM | How to explode anonmeetric walls for detail drawings

#11

KimTaurus


active
KimTaurus Avatar

Joined: Fri, Apr 20, 2007
5 Posts
5 Stars: 3 Votes


My final attempt at explaining this to you.

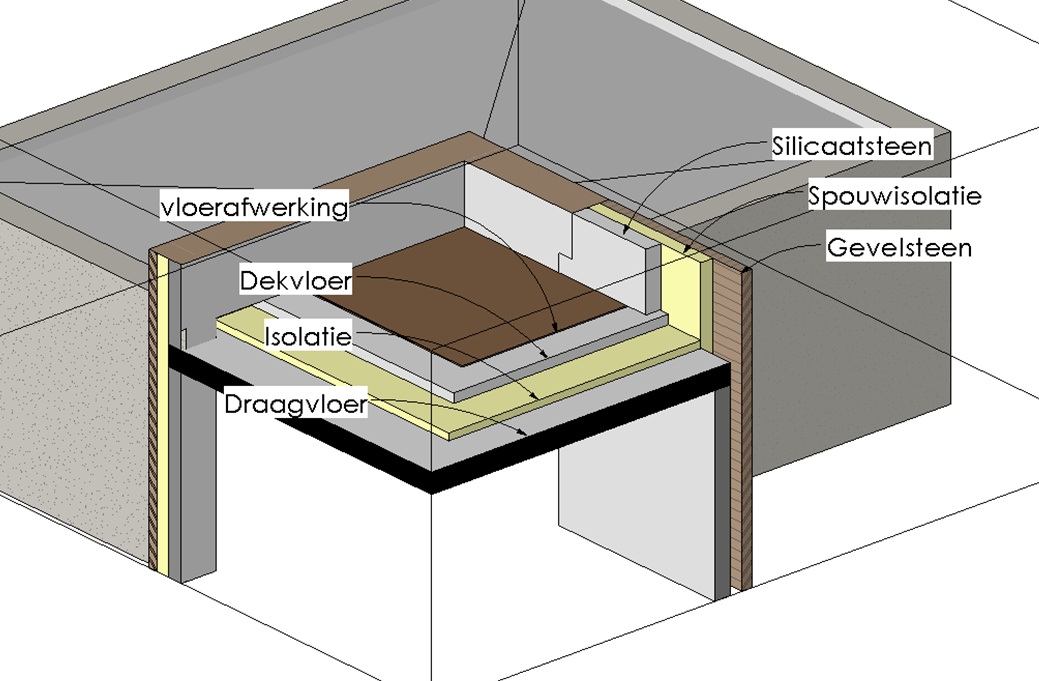

Watch the youtube video below, it explains how to divide your wall into parts and adjust the layers.

http://www.youtube.com/watch?v=R3JeYe9s7Po

If you still don't get, I suggest you just model it in SketchUp. Although it's really not that hard in Revit.



Attached Images


This user is offline

View Website
