Forums >> Revit Building >> Technical Support >> Dimensioning Drafting????

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Feb 6, 2014 at 7:47:39 PM | Dimensioning Drafting????

#1

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


REVIT Architecture 2013

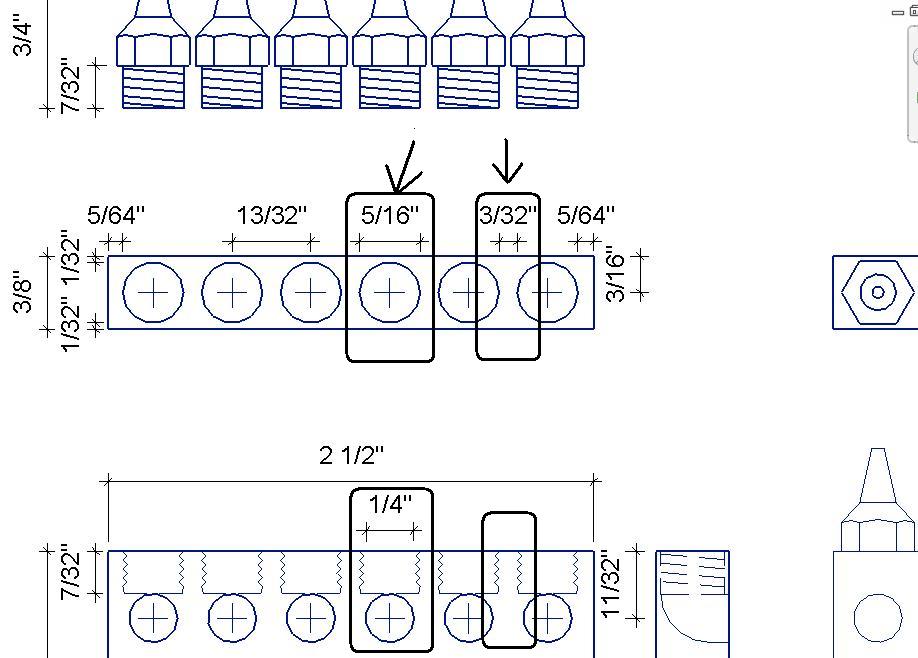

I'm in a drafting view (yea, I know now one uses it)  trying to complete a technical drawing.  For some reason I can't figure out, I now cannot dimension between circles.  See attached image.



top of image, completed earlier, I was able to denote "5/16" for that particular circle, and "3/32" for the distance between edges without a problem (or so I thought).



Now, below, I cannot denote "1/4" for the circle there (I put in fragments of lines in order to dimension it).  It simply will not let me do it.   AND, the killer is, in the aforeto mentioned above, if I delete the dimension, I cannot replace it, and if I delete the circle, the dimension disappears.



Again, this is a drafting view.  Did I turn something on that I'm not aware of???



Attached Images


This user is offline



Thu, Feb 6, 2014 at 8:09:27 PM | Dimensioning Drafting????

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 376 Votes


This is one of Revits problems... plus you can't dimension concentric circles.

Make your circle with two 1/2 circles.  Then you will have a point.


This user is offline



Thu, Feb 6, 2014 at 8:09:34 PM | Dimensioning Drafting????

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


You can't dimension from one circle quadrant to the next, you can dimension from their centerlines.  Your dimensions must be from the threads and just dragged to look like it is going to the circle


This user is offline

View Website

Thu, Feb 6, 2014 at 8:42:45 PM | Dimensioning Drafting????

#4

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


Hmmm, well for some reason, like I said, I WAS able to do what I wanted above, but not below.  I have no idea why.


This user is offline
