Wed, Feb 5, 2014 at 4:51:58 AM | can't align family

#1

rafaelyn2


active

Joined: Thu, Aug 22, 2013
0 Posts
No Rating


hello,

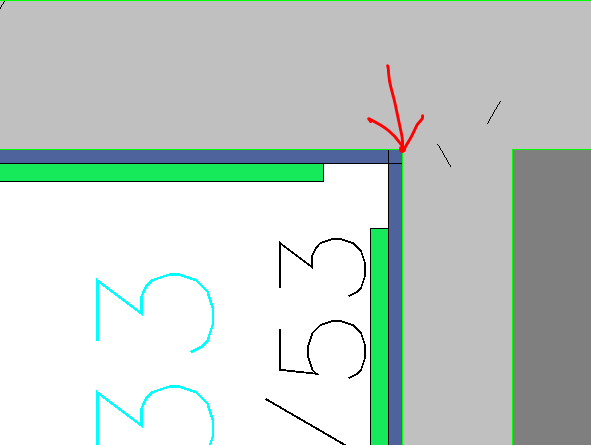

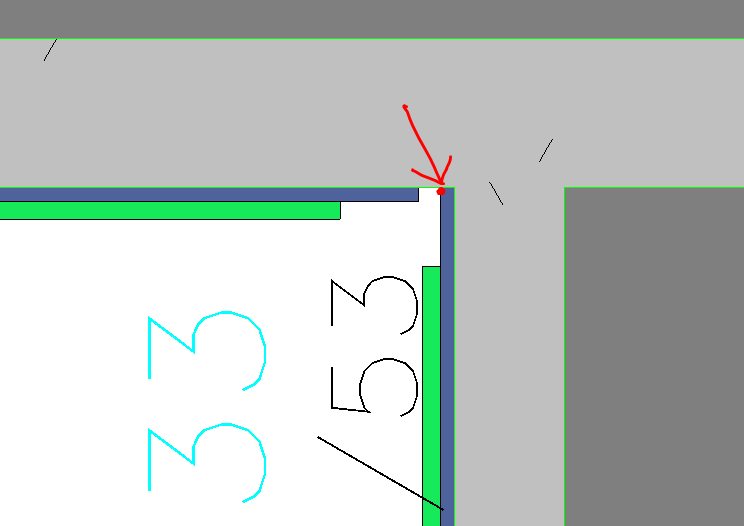

I'm trying to align a touch point in the Figure 1, but it automatically aligns the point of Figure 2.



can someone help me?



Attached Images


This user is offline



Wed, Feb 5, 2014 at 7:58:28 AM | can't align family

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 47 Votes


What is it?  A wall?


This user is offline

View Website

Wed, Feb 5, 2014 at 9:40:01 AM | can't align family

#3

rafaelyn2


active

Joined: Thu, Aug 22, 2013
0 Posts
No Rating


beam and formwork


This user is offline



Wed, Feb 5, 2014 at 9:50:46 AM | can't align family

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 47 Votes


So the blue is an actual out of the box beam or a family you created


This user is offline

View Website

Wed, Feb 5, 2014 at 10:11:43 AM | can't align family

#5

rafaelyn2


active

Joined: Thu, Aug 22, 2013
0 Posts
No Rating


is a family line-based


This user is offline



Wed, Feb 5, 2014 at 10:17:45 AM | can't align family

#6

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 47 Votes


Instead of trying to align just drag it to where you want it if its line based




This user is offline

View Website

Wed, Feb 5, 2014 at 10:35:32 AM | can't align family

#7

rafaelyn2


active

Joined: Thu, Aug 22, 2013
0 Posts
No Rating


I try to drag but it automatically aligns the point of Figure 2. Can you try?



Attached Files

This user is offline



Wed, Mar 12, 2014 at 12:41:42 PM | can't align family

#8

chilie


active

Joined: Tue, Sep 27, 2011
2 Posts
No Rating


I don't speak spanish so I cant really fully follow the parameters you have set up, but I did look the family itself for the beam in question. I think the issue has to do with the family itself. For starters you are using a lot of reference lines. Some have strong references some are weak. In plan view, some of the lines dont seem to overlap the geometry itself. Reference lines aren't like Reference planes. If the line isn't over the geometry, then you cannot snap to it or align to it. I would suggest swapping all those reference lines for reference planes. You might have better results that way. The only time I use reference lines in my families is if the geometer is going to change angle at some point. The rest of the time, I only use reference planes.
