Forums >> Revit Building >> Technical Support >> Symbolic Lines in Family - Display in Project

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 24, 2014 at 6:41:05 PM | Symbolic Lines in Family - Display in Project

#1

dpbittiker


active

Joined: Sat, Aug 8, 2009
15 Posts
No Rating


I have a few plumbing fixture families with hidden symbolic lines drawn in plan to indicate required clearances. When I load the families in to a generic 'new project' the lines display correctly as hidden/dashed lines. The problem I'm having is when I load them into my specific project, the lines are solid. I can't get them to read as hidden. Here's what I've checked so far in the project:

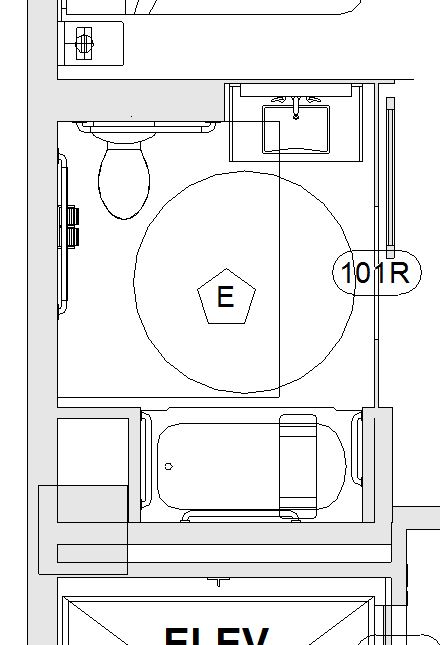

Object Styles, Line Styles, shading modes. I don't see anything abnormal, and it's driving me nuts! The clearance lines in the attached image should be reading dashed. Anyone know what it might be? thanks in advance.



Attached Images


This user is offline



Fri, Jan 24, 2014 at 6:44:22 PM | Symbolic Lines in Family - Display in Project

#2

dpbittiker


active

Joined: Sat, Aug 8, 2009
15 Posts
No Rating


Solved: It was a graphic override in phasing.
