Forums >> Revit Structure >> Technical Support >> Sliding Door with Louver

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 24, 2014 at 12:15:30 AM | Sliding Door with Louver

#1

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating


Hi Sir(s),

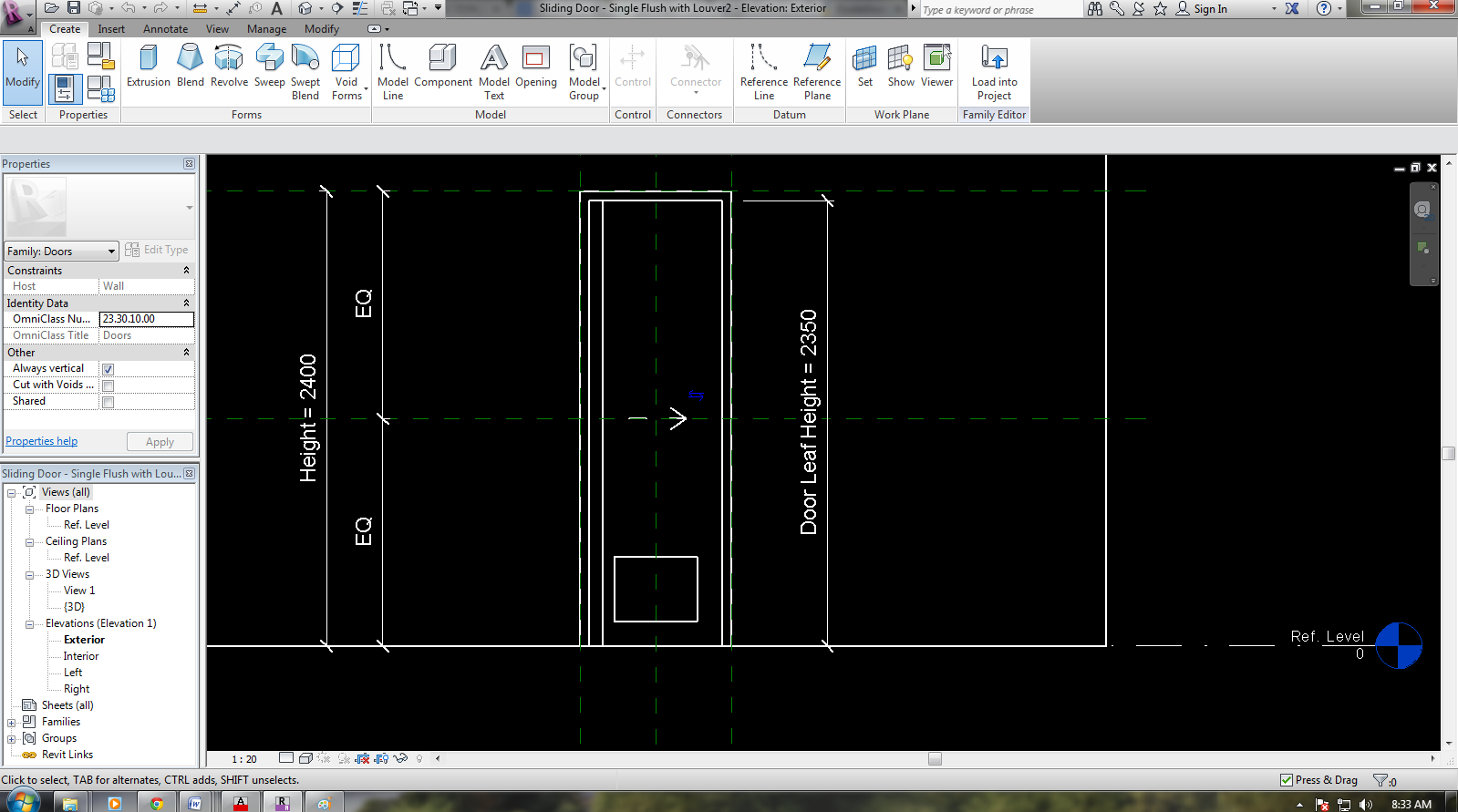

Please help me with my sliding door.  I'm making one that slides open depending on how much percentage the user wants.  My only problem is the louver.  I can only make it (door panel) slide open without the louver, but when I place the louver and try to slide it open, a message pops out saying "Can't make the extrusion".  I must be missing something here.  The problem starts when I edit the extrusion of my door panel and add the void for the louver at the lower part of the panel.  Adding the void is successful but when I try to slide it open, I can't seem to find where I missed and what solution to make.  Please help me Sir(s).

thanks much.



Edited on: Thu, Jan 23, 2014 at 6:24:15 PM

Attached Images


This user is offline



Fri, Jan 24, 2014 at 12:22:57 AM | Sliding Door with Louver

#2

raja15


active

Joined: Mon, Feb 21, 2011
84 Posts
5 Stars: 1 Votes


Hi bigbrother



Is the louvre a seperate family which has been imported into your door family? Or has it been created within the door family via massing/voids?



Is the louvre also aligned with the door panel reference plane?


This user is offline



Fri, Jan 24, 2014 at 12:41:06 AM | Sliding Door with Louver

#3

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating


Hi raja15,

the louver is not a separate family.  I made it within the door family by "Sweeping" method both for the louver's frame and the blades.  Isn't that just the same when you add a mullion within a window family or maybe a door knob within a door family?  What I did was, I editted the extrusion of my door panel and add a void, at the lower part of my door, for my louver.  I dimensioned and constrained the left and right sides of the void with the sides of the door panel so that when I change the width of the door, the void size changes too from the center.  But with or without the dimension on the void, when I try to slide the door open, it just won't slide.  I will slide only for maybe upto 15 percent, but past the boundary of the void, the "Can't make the extrusion" message pops out already.  This is even before I make the louver.

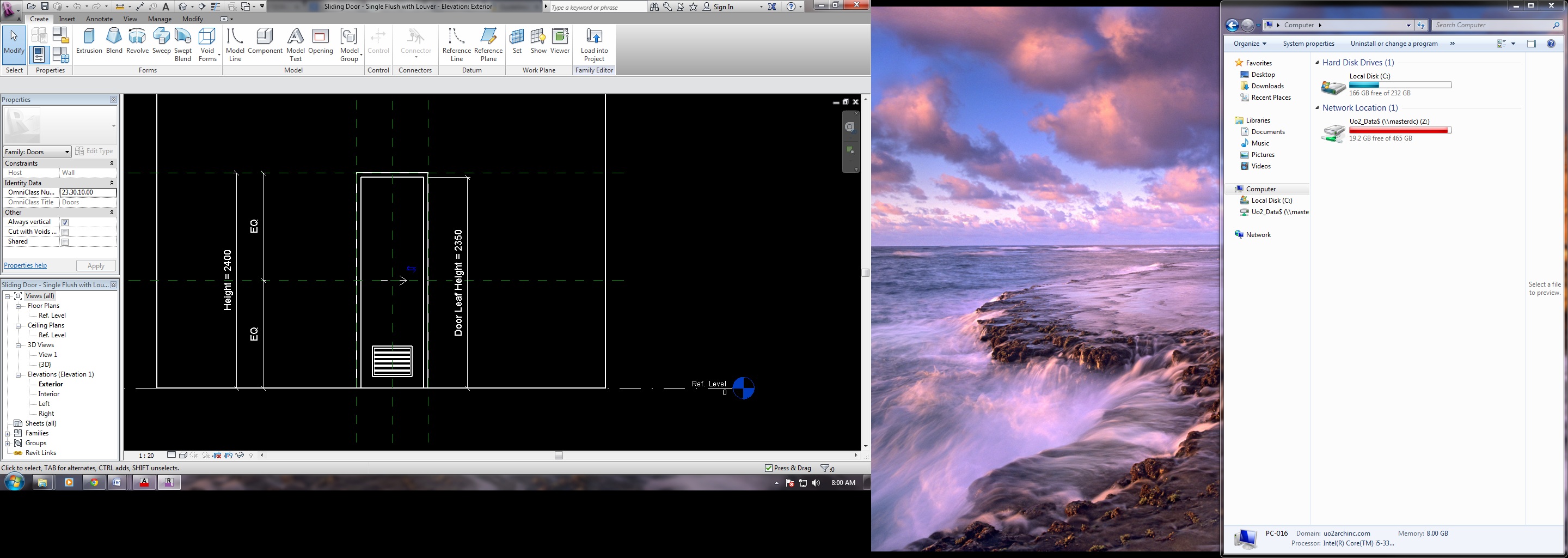

Attached Images


This user is offline



Fri, Jan 24, 2014 at 1:05:13 AM | Sliding Door with Louver

#4

raja15


active

Joined: Mon, Feb 21, 2011
84 Posts
5 Stars: 1 Votes


Everything you have said about creating your family seems fine, so I'm a bit baffled as to why it is not moving as you said.



How are you "sliding" the door panel?



Is there a parameter you have assigned to the panel which allows it to slide various distances?



Or are you simply using the move tool?


This user is offline



Fri, Jan 24, 2014 at 1:08:30 AM | Sliding Door with Louver

#5

raja15


active

Joined: Mon, Feb 21, 2011
84 Posts
5 Stars: 1 Votes

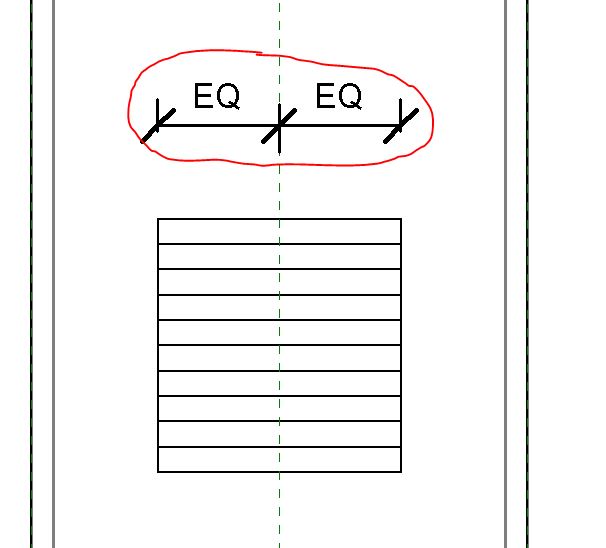

I just had a brainwave, is your louvre set to equal constraints from one of the family reference planes? (refer to attached)



Attached Images


This user is offline



Fri, Jan 24, 2014 at 1:35:17 AM | Sliding Door with Louver

#6

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating

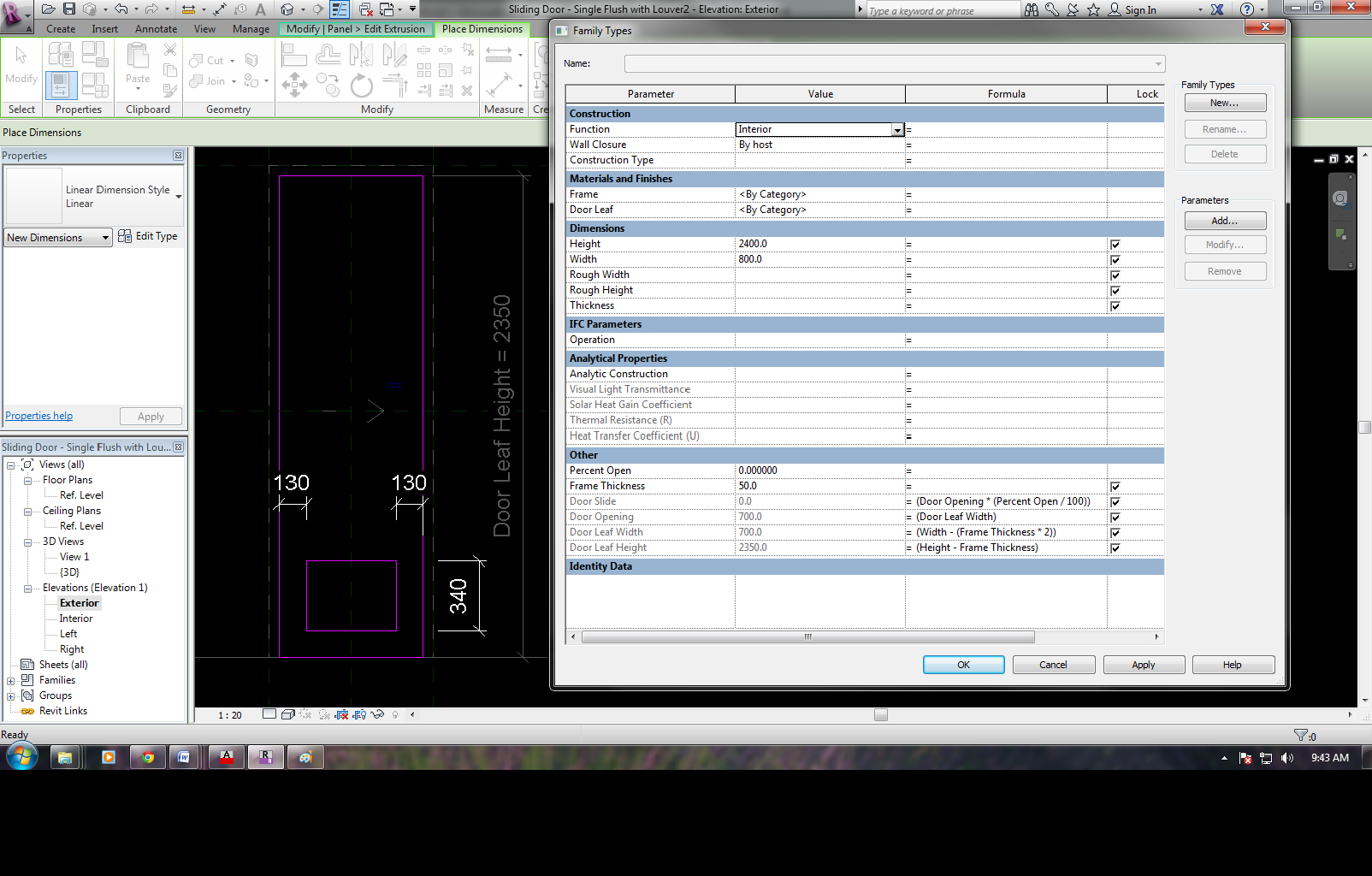

I set a parameter to make the panel slide open via percentage.  and i dimensioned and constrained the void from the sides.



Attached Images


This user is offline



Fri, Jan 24, 2014 at 1:51:07 AM | Sliding Door with Louver

#7

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating

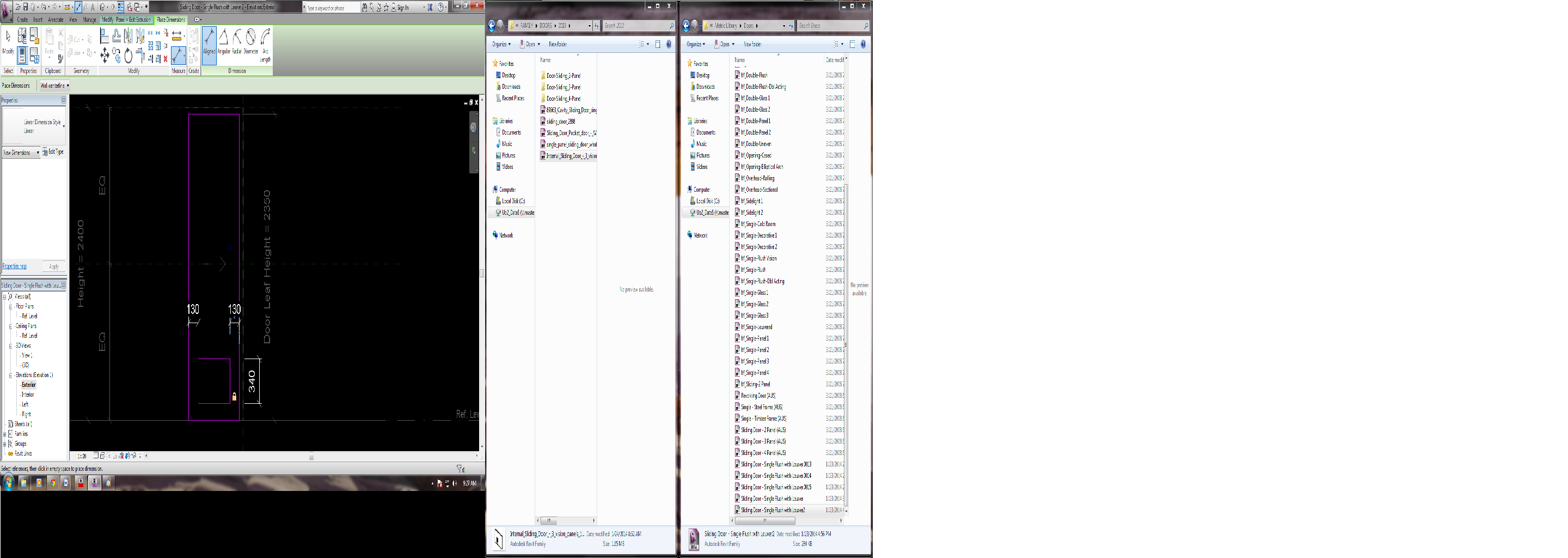

please see attach with my parameters.



Attached Images


This user is offline



Fri, Jan 24, 2014 at 3:51:17 AM | Sliding Door with Louver

#8

raja15


active

Joined: Mon, Feb 21, 2011
84 Posts
5 Stars: 1 Votes


The only thing I can think of is to double check that your void is constrained to the "door panel" and not the "door frame"



What I would do to check this is -



  1. Open front view of the door family
  2. Open the "door panel" sketch for editing
  3. Delete the dimensions you have created to constrain the void
  4. Finish the sketch (þ)
  5. "Temporarily hide" ($) the "door frame" in view by element
  6. Open the "door panel" sketch for editing again.
  7. Redimension the void to the door panel sketch lines.
  8. Finish Sketch
  9. Quickly check that the void moves when you move the door panel by a %



I hope that this fixes your problem, otherwise I'm unfortunately out of ideas


This user is offline



Fri, Jan 24, 2014 at 4:52:51 AM | Sliding Door with Louver

#9

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating


And it just worked!

Your so great!

I'm very thankful that you stayed with me on this.

thank you, thank you, thank you very much.


This user is offline



Fri, Jan 24, 2014 at 4:58:08 AM | Sliding Door with Louver

#10

raja15


active

Joined: Mon, Feb 21, 2011
84 Posts
5 Stars: 1 Votes


Glad to hear it worked!



You're very welcome.


This user is offline
