Forums >> Revit Building >> Technical Support >> aligning two curtain walls/panels in a Blob-like form

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 20, 2014 at 10:00:11 AM | aligning two curtain walls/panels in a Blob-like form

#1

DonLeoNL


active

Joined: Sun, Nov 7, 2010
0 Posts
No Rating

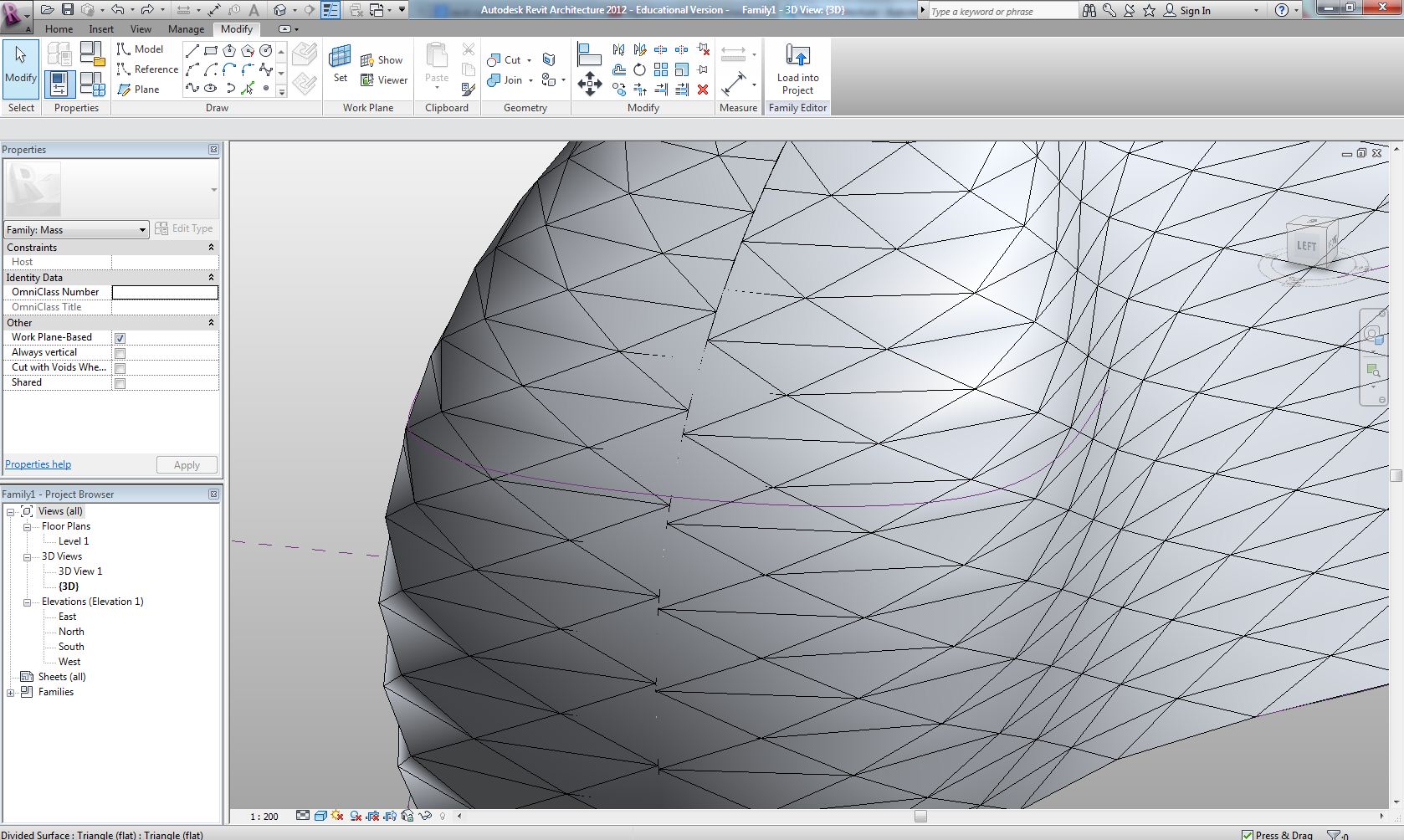

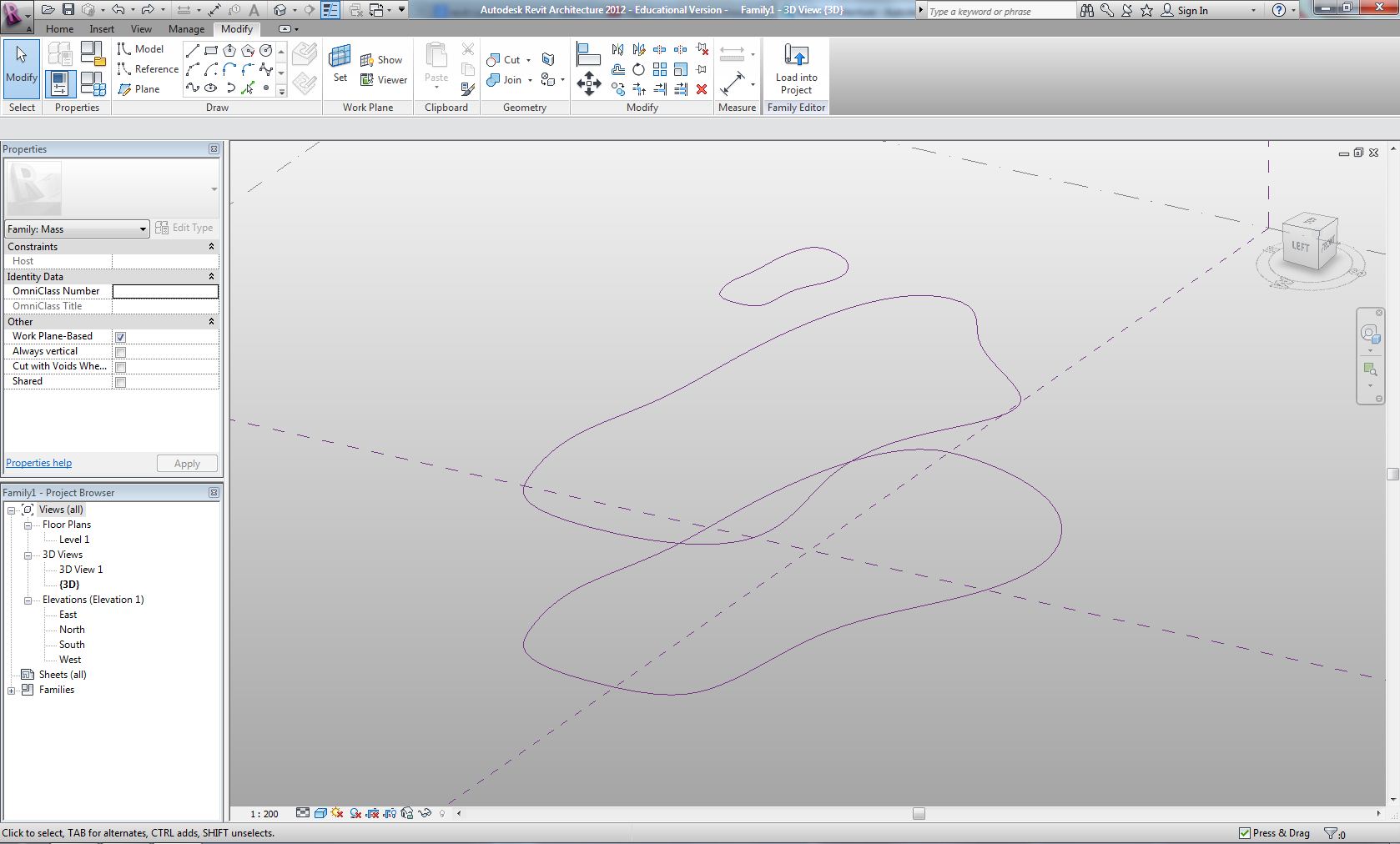

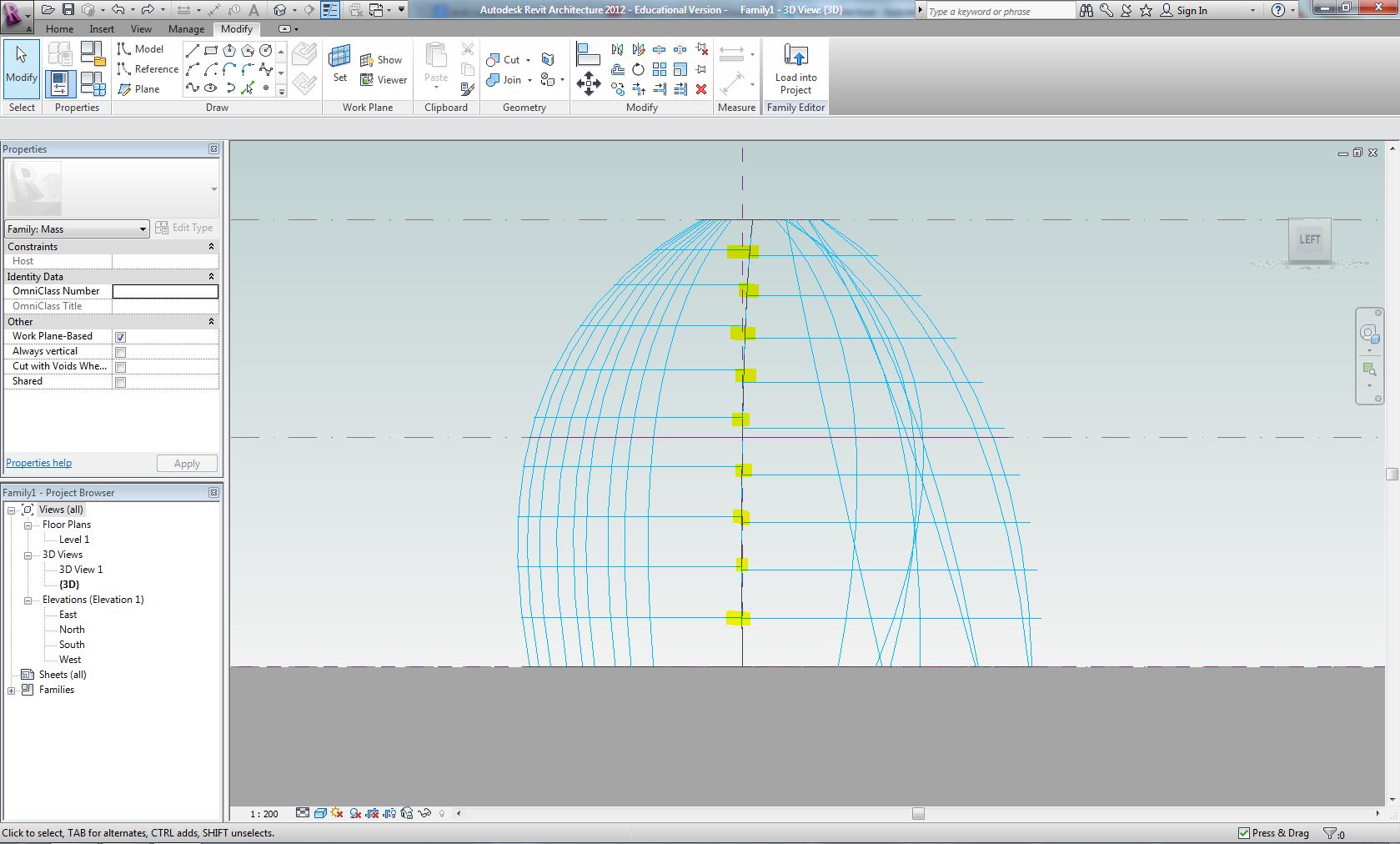

Good day everyone, I'm trying to figure out a small problem I have with creating a Blob-like form. I've created a mass by creating a form out of six (two per level) reference lines. The Form comes out nice, but whenever I divide the form, the two created surfaces don't align with eachother. Therefore, when I create curtain walls or patterns on this form, they don't match up either. I have attached two images and a Conceptual massing file with the mass inside. I Hope someone can provide me with a solution for this problem. Thanks in advance, Leo



Attached Images


Attached Files

This user is offline



Wed, Jan 22, 2014 at 7:39:53 AM | aligning two curtain walls/panels in a Blob-like form

#2

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


you have to make ref. planes and use them for pattern grid axis.

this video will help. watch 1:00~1:40

http://youtu.be/GKW_hhm1HNU



Edited on: Wed, Jan 22, 2014 at 1:42:05 AM

-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website
