Forums >> Revit Building >> Technical Support >> Getting angle parameter for a plywood fill region detail component to work SMART

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 14, 2014 at 9:50:18 PM | Getting angle parameter for a plywood fill region detail component to work SMART

#1

annateo301


active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating


Hi guys,



I'm a beginner when it comes to creating family. I'm trying to create detail components for plywood/glass...etc. The two things I'm trying to achieve are:

1. Adjustable length

2. Adjustable angle cut

I've added two parameters (length & angle) to the detail family. I am wanted it to be adjusted just by using the align tool. However, only the Length parameter seems to work fine. The Angle parameter only works when I key in the angle that I want. The whole component rotates when I tried to align the (angled) end of the component. Ideally, I would like the (anlged) line to align without rotating the whole component.



Please see attached file for clarification.



Thanks for any help in advance Smile



This user is offline



Tue, Jan 14, 2014 at 10:09:03 PM | Getting angle parameter for a plywood fill region detail component to work SMART

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


I'm not sure what the angled lines in the middle are but if you are trying to put an angle on the end of your component and have it be parametric you need to use a reference line and apply an angle parameter to the reference line.  You should always create your families with reference lines and planes first and make sure they flex and then add your extrusions, lines etc.



You should read the Revit families guide

http://usa.autodesk.com/adsk/servlet/index?siteID=123112&id=13080413&linkID=9243097



On a side note Revit has some Detail Components out of the box in Div 06 that you might want to check out.  Personally I would use a filled region instead of a detail component to show plywood



Edited on: Tue, Jan 14, 2014 at 4:11:21 PM

This user is offline

View Website

Tue, Jan 14, 2014 at 10:54:04 PM | Getting angle parameter for a plywood fill region detail component to work SMART

#3

annateo301


active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating


It's drawn using filled region within the family. I did draw a reference plane to the end of the it and then apply a parameter to it. However, when I try aligning the end to a plane in a project file, the whole component rotates instead of aligning just the end line to the plane.

I created the family instead of using filled region within the project in order to keep the consistency of linetype and thickness of it. There's more than 2 persons working on the same project.



This user is offline



Wed, Jan 15, 2014 at 1:27:39 PM | Getting angle parameter for a plywood fill region detail component to work SMART

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


You need to have 1 reference line and 1 reference plane... one to control the length and one to control the angle



Edited on: Wed, Jan 15, 2014 at 7:28:22 AM

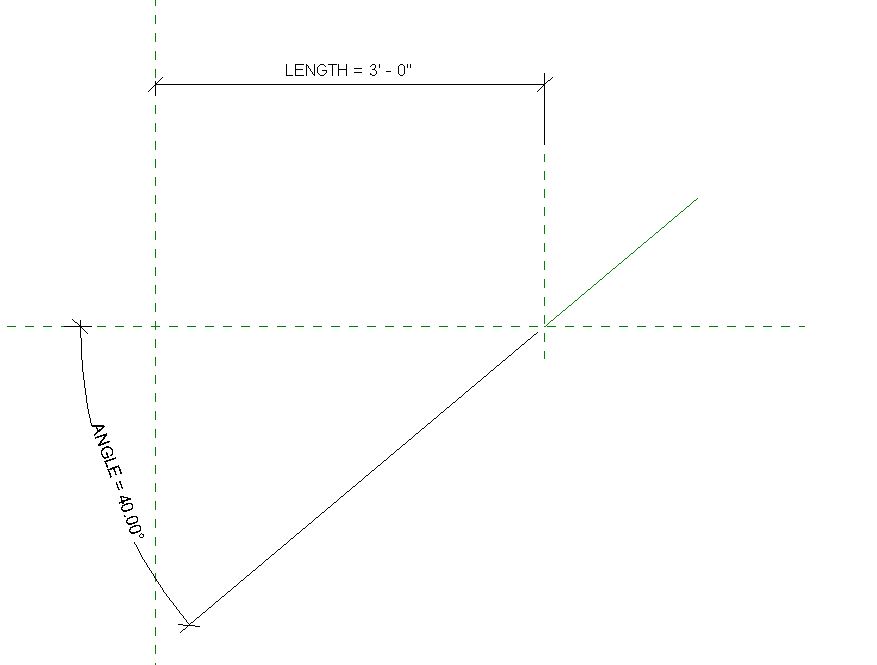

Attached Images


This user is offline

View Website
