Wed, Jan 8, 2014 at 3:16:19 PM | cleanup horizontal mullion at corner mullions, again....

#1

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


please help.. have a deadline tomorrow...

i've seen some posts about this but i havent seen an answer that works with a a 45 degree mullion at the inside and outside corners of a curtainwall

see the attached image. the horizontals dont join cleanly and it looks like crap. i added the corner mullion to only one of the edges of the wall so in order for the glass to look clean, it continues past the mullion

does that make any sense. i dont understand why corner mullions are so difficult. this isnt something new to the world of architecture, you'd think they'd fix this by now

thanks!



This user is offline



Wed, Jan 8, 2014 at 3:36:43 PM | cleanup horizontal mullion at corner mullions, again....

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes


Go to a 3D view and set the join switch for the horizontals to be continuous rather than the verticals.



Edited on: Wed, Jan 8, 2014 at 9:36:58 AM

This user is offline



Wed, Jan 8, 2014 at 4:09:52 PM | cleanup horizontal mullion at corner mullions, again....

#3

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


I'm using Revit 2013. is there some new switch that i dont know about in 2014? or are you talking about the system Join Condition Value? if so i tried that one and it didnt work


This user is offline



Wed, Jan 8, 2014 at 4:17:13 PM | cleanup horizontal mullion at corner mullions, again....

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes

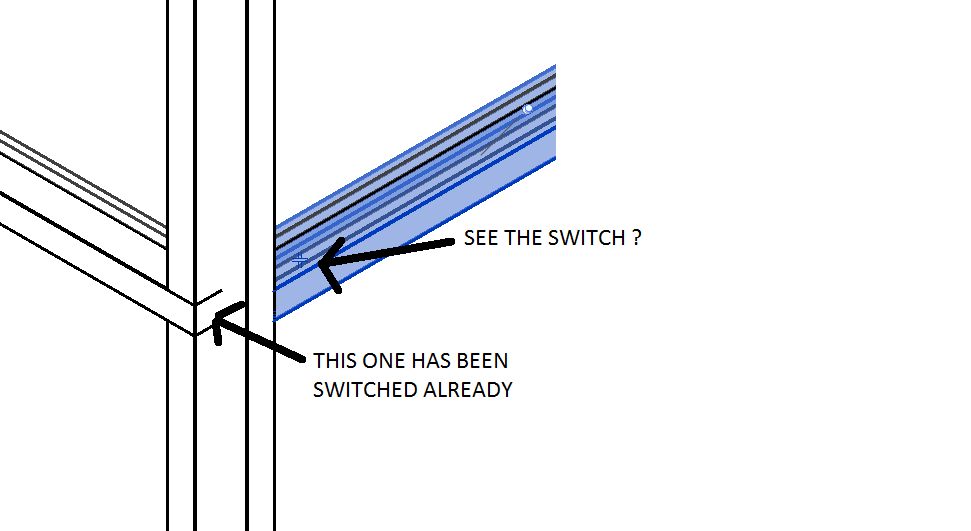

Look at the image attached.



Attached Images


This user is offline



Wed, Jan 8, 2014 at 4:33:14 PM | cleanup horizontal mullion at corner mullions, again....

#5

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


not sure why that posted 3 times....that was the first thing i tried, still doesnt work



i have it set to Border and Horizontal Grid Continuous

attached is what it looks like now (i modified the mullion profile from the last image)





This user is offline



Wed, Jan 8, 2014 at 4:53:30 PM | cleanup horizontal mullion at corner mullions, again....

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes

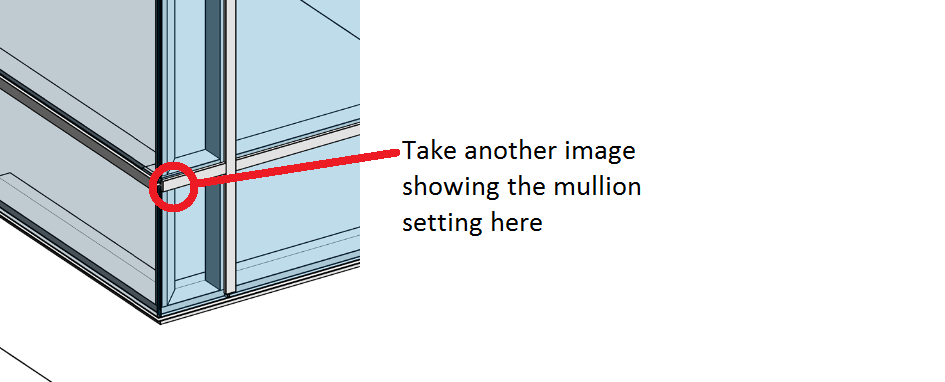

Do you have wall joins on?  Post another image showing your mullion setting where I point to.



45 degree corner mullions are a problem.  A solution may be to define the CW from the outside edge.



Attached Images


This user is offline



Wed, Jan 8, 2014 at 5:07:58 PM | cleanup horizontal mullion at corner mullions, again....

#7

jsel13


active

Joined: Wed, Mar 5, 2008
67 Posts
5 Stars: 1 Votes


i'm not sure if this is what you are looking for. i can send you the file...



This user is offline



Wed, Jan 8, 2014 at 5:14:49 PM | cleanup horizontal mullion at corner mullions, again....

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes




A small file with only this cw and everything else purged would help us see the problem.
