Forums >> Revit Building >> Technical Support >> Wall joining to roof problem

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 2, 2014 at 10:42:03 PM | Wall joining to roof problem

#1

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes

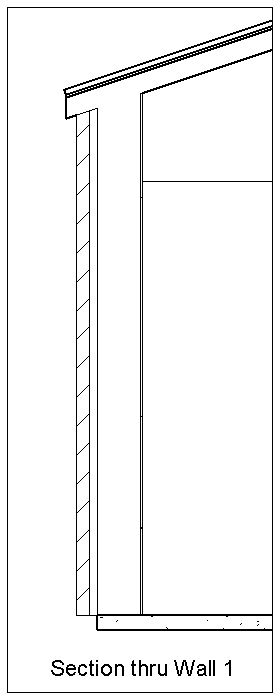

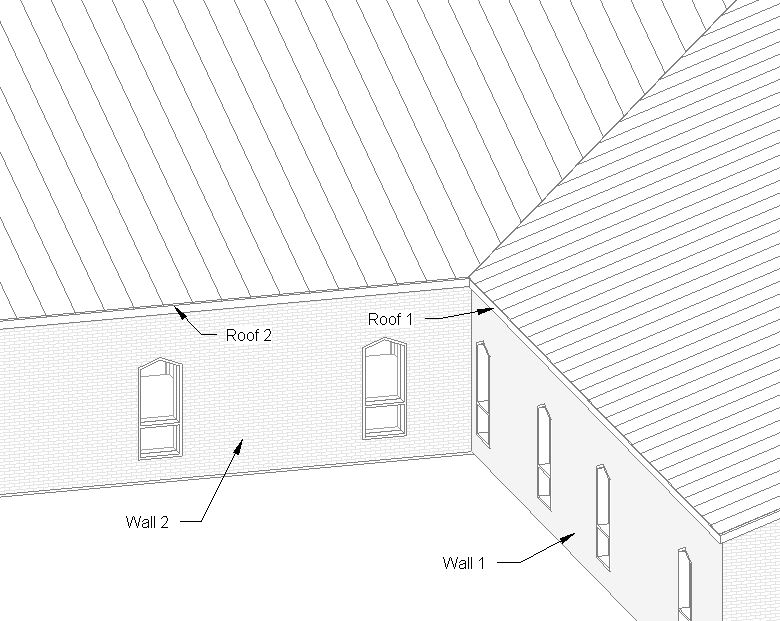

Because of the relative complexity of the roof, we’ve had to create it using multiple roofs.  Now that we’ve gotten the roof looking the right way, we can’t get two walls to properly join to the roof. Those two walls happen to be at the intersection of two separate roofs (see attached images). Wall 1 joins/attaches correctly while wall 2 does not. Wall 2 will join up just fine with the roof if you detach it from wall 1, but obviously the two must to be joined. Every time you try to join Wall 2 to the roof, Revit gives you the warning “Can't keep wall and target joined” while highlighting Wall 2. Is there a way around this? FYI, the two roofs are at the same elevation. We are using Revit 2013. Thanks in advance guys.



Attached Images


This user is offline



Thu, Jan 2, 2014 at 10:42:52 PM | Wall joining to roof problem

#2

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes

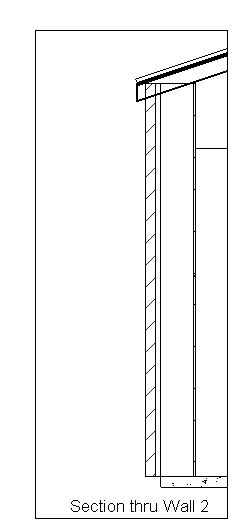

Here's the section thru wall 2



Attached Images


This user is offline



Thu, Jan 2, 2014 at 11:34:32 PM | Wall joining to roof problem

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


This is most likely happening because the two walls are cleaning up with each other at the corner and therefore are 'joined' to each other. To prove this try 'disallowing' the join at the intersection and see if that helps.



You can also create a sloped 'reference plane' (perhaps align and lock it) along the underside of the roof and 'attach' the wall to the refernce plane instead of the roof. Walls will 'attach' to other walls, floors, roofs and reference planes.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Fri, Jan 3, 2014 at 1:12:55 PM | Wall joining to roof problem

#4

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes

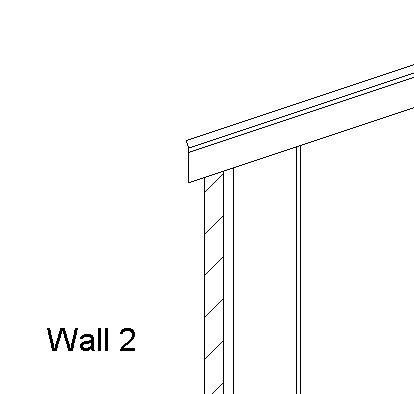

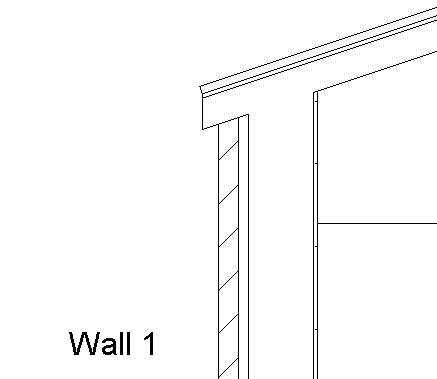

Thanks for the reply. Wall 2 and roof 2 will clean up just fine if you disallow the join between wall 1 and wall 2, but you run into this same problem if you try to rejoin them afterwards. Placing a reference plane at the location you described seems to work, though. Here's one nit-picky thing about that though. See the attached images. As you can see, there is no diagonal line between the wall & roof at wall 1, but there is at wall 2 (because the wall technically ends at the bottom of the roof/reference plane). Is there a way around this? FYI, the wall/roof core layers are the same for both wall/roof 1 and 2.



Attached Images


This user is offline



Fri, Jan 3, 2014 at 1:33:08 PM | Wall joining to roof problem

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


Can you show us your roof?  I'm curious as to why you did multiple roofs.


This user is offline



Fri, Jan 3, 2014 at 3:13:22 PM | Wall joining to roof problem

#6

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes

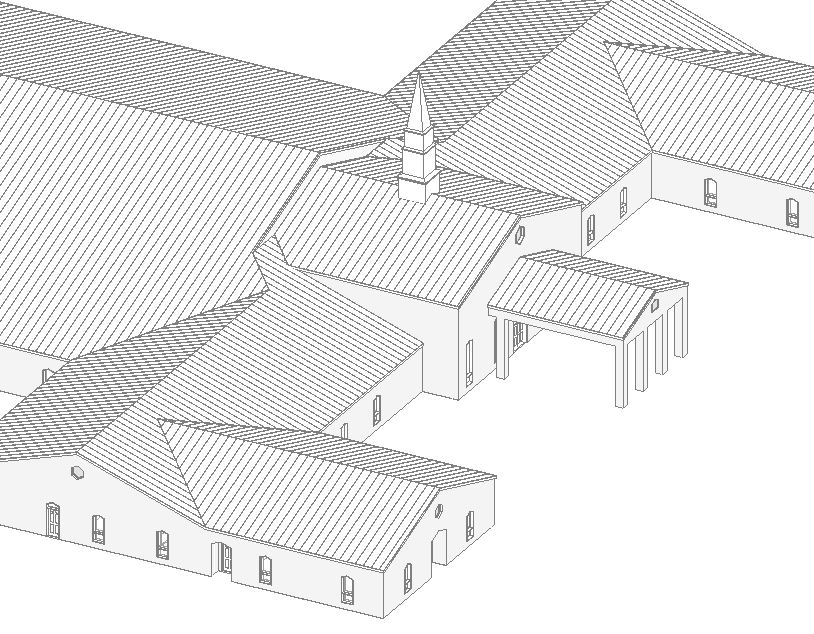

The gable right past the steeple is what kind of makes it a challenge. I just didn't see any other way to do it than creating seperate roofs.



Attached Images


This user is offline



Fri, Jan 3, 2014 at 3:18:43 PM | Wall joining to roof problem

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


All of those roofs except for the roof with the steeple and the portico appear to have the same base level.  As such, those could / should all be one roof sketch.


This user is offline



Fri, Jan 3, 2014 at 3:37:03 PM | Wall joining to roof problem

#8

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes


That's correct. All those roofs are at the same elevation. I wouldn't even know how to draw a roof with that interior gable thing.


This user is offline



Fri, Jan 3, 2014 at 4:00:39 PM | Wall joining to roof problem

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes

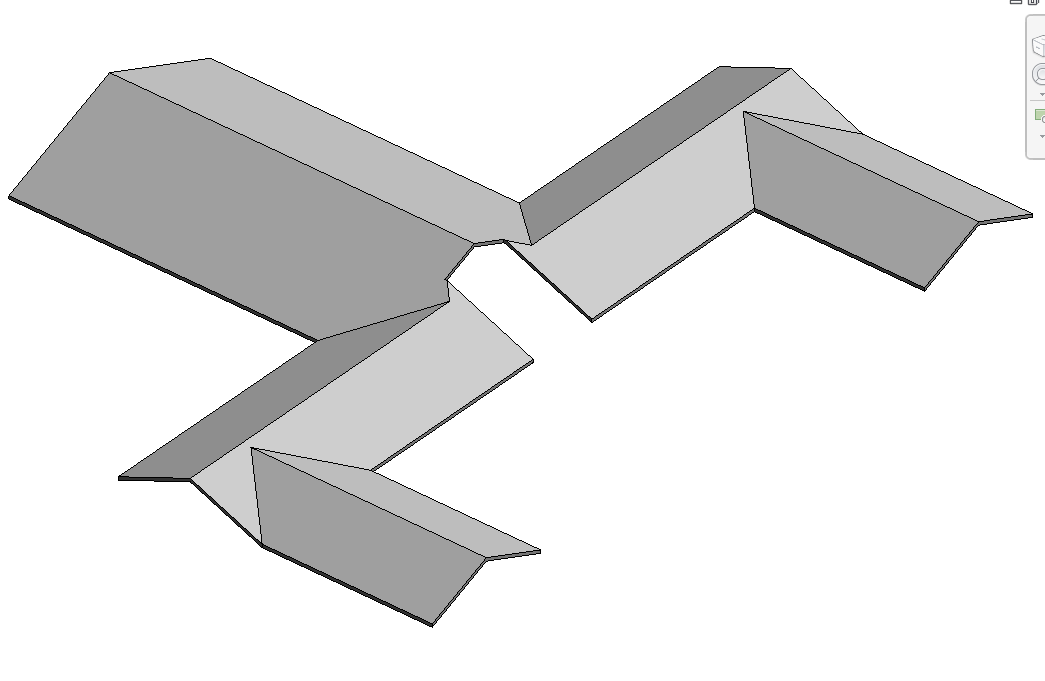

One roof.  You have to cheat a little.  If you look, you will see I used an 1/8" roof jog at the top and bottom L.  Instead, I think Instead I could have used a roor slope arrow there to make that slope.



Attached Images


This user is offline



Fri, Jan 3, 2014 at 4:18:20 PM | Wall joining to roof problem

#10

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes


Thanks man. I'll give it a shot.


This user is offline



Fri, Jan 3, 2014 at 6:44:21 PM | Wall joining to roof problem

#11

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes


WW, what version of Revit are you using? If you're using 2013 or earlier, could you upload that model so I can see how you sketched that roof? Thanks.


This user is offline



Fri, Jan 3, 2014 at 7:20:06 PM | Wall joining to roof problem

#12

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes

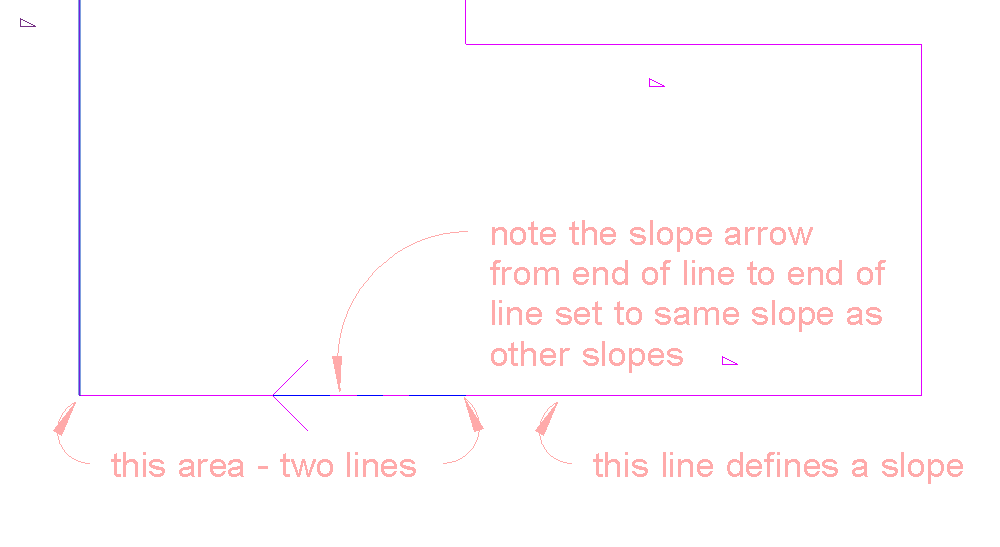

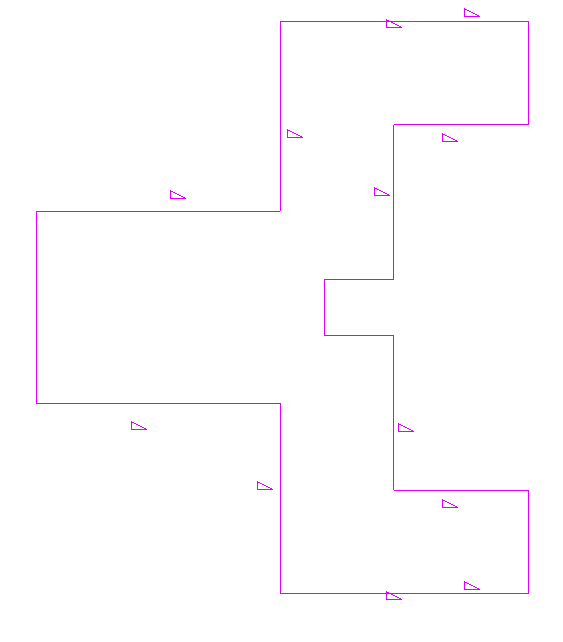

The second image above is my original sketch and it shows where the slopes are.  I have now changed the lower L and the upper L using a slope arrow as I suggested and two lines that meet at the peak.  Look at the image.



Edited on: Fri, Jan 3, 2014 at 1:21:17 PM

Attached Images


This user is offline



Fri, Jan 3, 2014 at 11:56:46 PM | Wall joining to roof problem

#13

camerongood210


active

Joined: Tue, May 12, 2009
10 Posts
5 Stars: 1 Votes

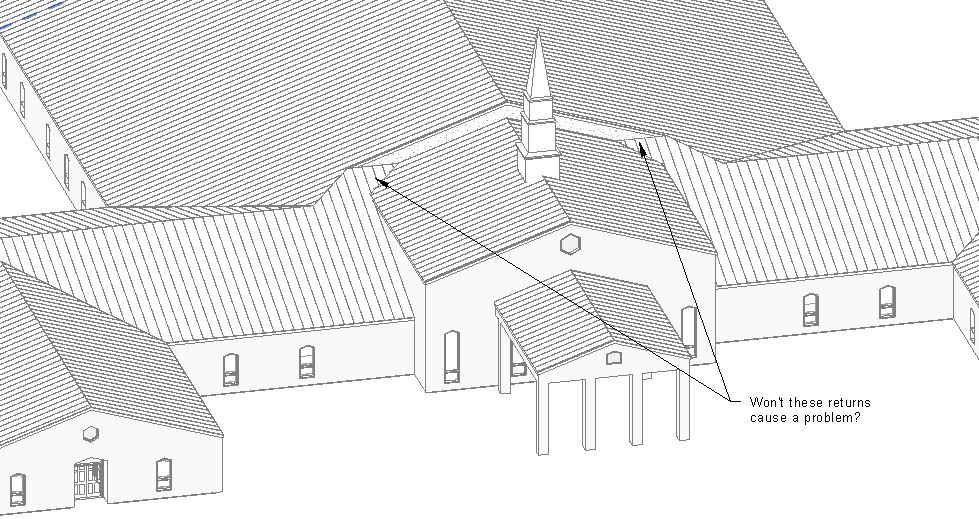

WW, I really appreciate your help so far. I understand the slope arrow thing now. Thanks. Take a look at the attached image. Won't those roof return be a problem?



Attached Images


This user is offline



Mon, Jan 6, 2014 at 1:19:42 PM | Wall joining to roof problem

#14

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


Only if they return under the gable .... and I would think the would for just a little bit.  You could fix these with a little roof edge sweep, an in-place or a little roof.  I might split off just that section of roof all the way done to the eave (so that I could define it easily) and do just that portion seperate....  As usual, you have multiple options.



Whatever you decide, I'm sure this was a good learning exercise.


This user is offline
