Forums >> Revit Building >> Technical Support >> Dual Sloped Floor without Modifying Sub Elements

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Dec 29, 2013 at 10:41:27 AM | Dual Sloped Floor without Modifying Sub Elements

#1

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Revit 2013.

So, I've sloped floors using numerous methods: slope arrow, modifying the sub elements, defining constant height, and of course the defines slope check box.

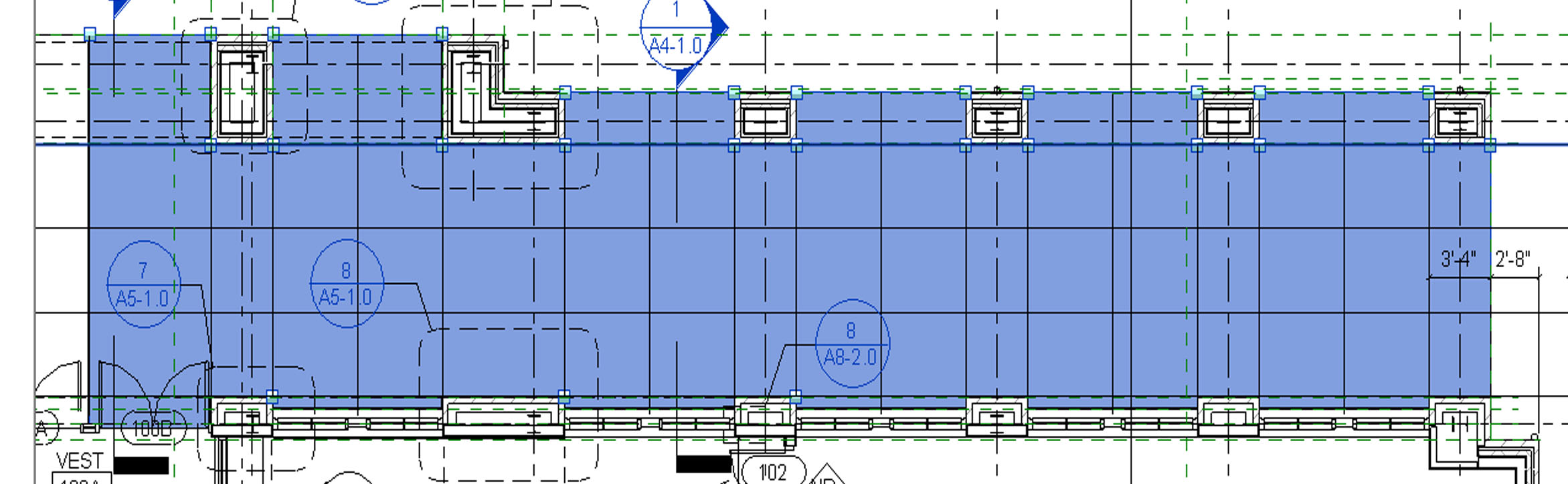

I have a typical exterior slab that is sloping both away from the building and with the grade along the elevation.  The slope in both directions, for the sake of the model, will be constant so I'm trying to avoid calculating EVERY SINGLE POINT when using Modify Sub Elements.  See the image attached for a section of the slab.

Does anyone have a clever way to get around calculating every point?  Perhaps another method (that's not using a roof)?

Thanks.



Attached Images


This user is offline



Mon, Dec 30, 2013 at 8:49:56 AM | Dual Sloped Floor without Modifying Sub Elements

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Use a diagonal slope arrow.


This user is offline



Mon, Dec 30, 2013 at 10:07:33 AM | Dual Sloped Floor without Modifying Sub Elements

#3

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Ah.  I see.  The easy way then.


This user is offline



Wed, May 4, 2016 at 5:53:46 PM | Dual Sloped Floor without Modifying Sub Elements

#4

sllana


active

Joined: Wed, Mar 2, 2011
106 Posts
5 Stars: 2 Votes

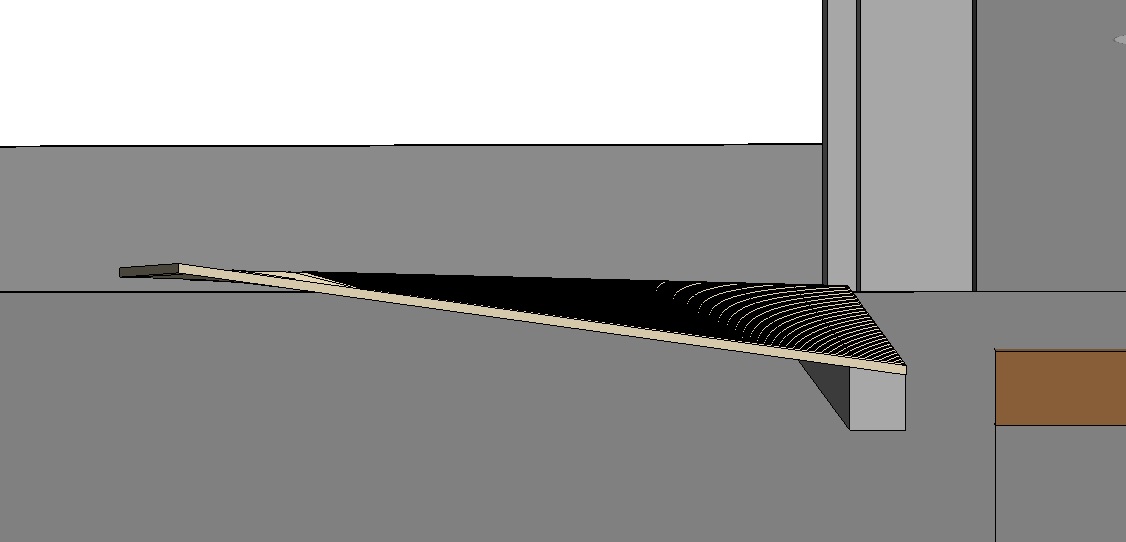

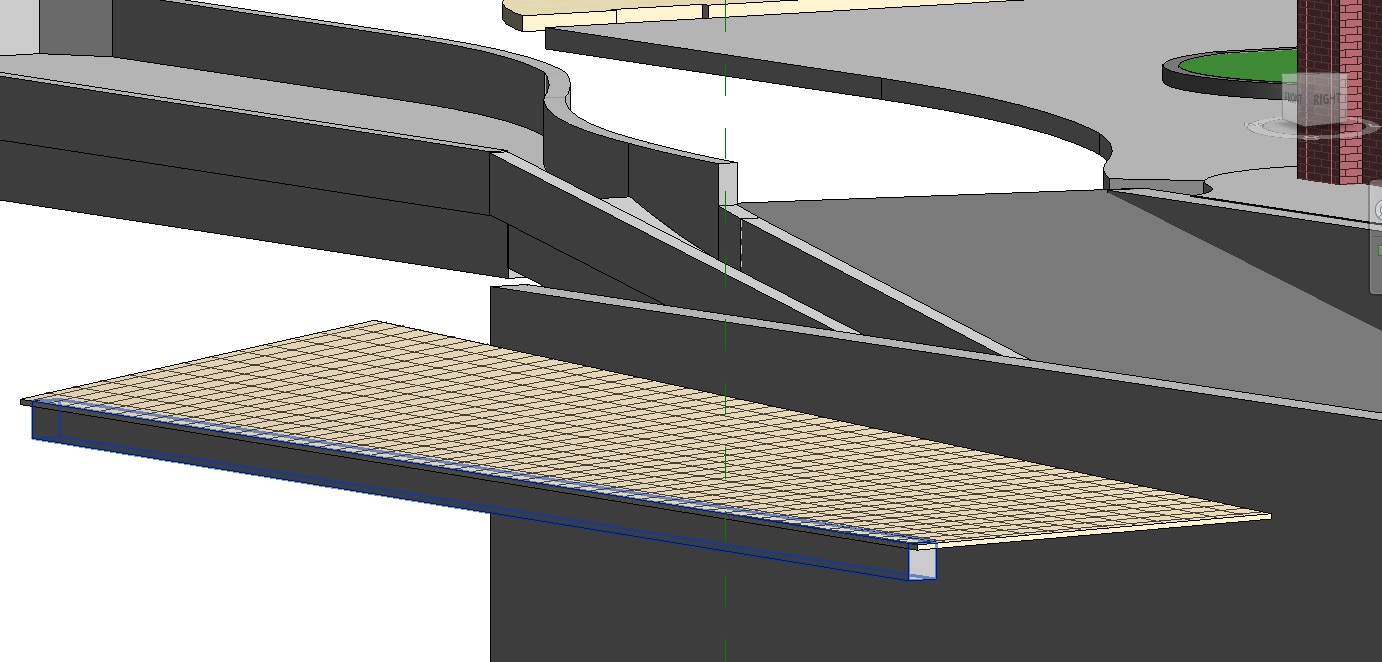

You can also modify sub elements, corner points only. That results in a warp plane.



Attached Images


This user is offline



Thu, May 5, 2016 at 8:08:50 AM | Dual Sloped Floor without Modifying Sub Elements

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Be careful with 'modify sub elements'.  That tool is not intended for structure slope, only finish slope.  It creates slope by changing the thickness of one of the layers of the component you are modifying.  It does not have to be "...corner points only" - you can add additional control points.



You can read more on this in your HELP HERE.


This user is offline
