Forums >> Revit Structure >> Technical Support >> Stair not joining first floor slab properly

azsaqib

active

Joined: Sat, Dec 7, 2013
0 Posts
No Rating

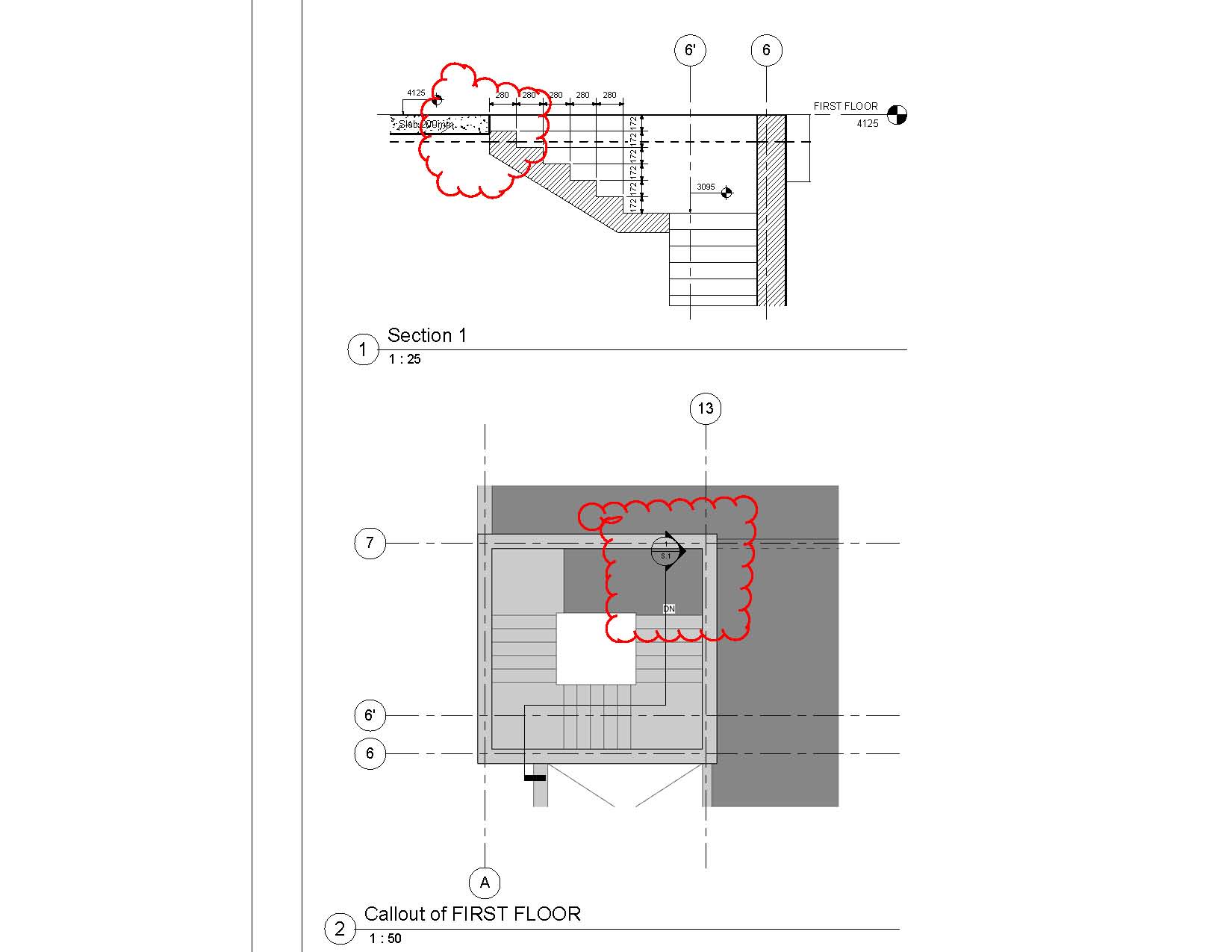

I have a stair with 24 risers from Ground Floor to First Floor. But when it reach to First Floor its waist slab is not joint with bottom of slab properly. Kindly see attached image & suggest the solution.Thanks.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Typically we set a stair up like that to end with a tread.
