This is my first time w/ a comment so please excuse any social blunders. We do a lot of custom log homes (big 12"-14" logs) and I looking for a Revit compatible way to do log walls that work with the program. Anybody have this figured out?
|
This user is offline |
|
 |
|
|
|
admin
Joined: Sun, Jan 19, 2003
568 Posts
 |
I've never done a log building so I don't know the ins and outs of detailing it but I think you should be able to do it like any other wall just apply an image map to the material for rendering...
-----------------------------------
Hiroshi Jacobs
The Catholic University of America |
This user is offline |
View Website
|
|
|
active
Joined: Thu, Jan 22, 2004
4 Posts
No Rating |
I'm more concerned with getting a reasonable log profile when cutting wall sections. I'm not as concerned with the rendering aspect as the working drawings.
|
This user is offline |
|
|
|
active
Joined: Thu, May 13, 2004
184 Posts
|
Hi!
Then I used my
Altar for the electric age
See the Gallery
Honestly I was aiming at making a log wall
If you download this tutorial - 12 Mb
http://revit.autodesk.com/EN/6_0/Documents/TutorialsMetricENU-A4paper_size.pdf
You can find how to make wall sweeps and you have to have a Profile for that
Select M_Wall Sweep-Brick Soldier Course: 2 Bricks for Profile.
You can make your own profile
Take a look at
Altar for the electric age
And you will discover that I have used a profile of a human face.
My intention was to make profiles for logs
I think this can be the method to get really realistic
Have a try
and report back, please!
Log houses are nice. Timber is nice.
|
This user is offline |
|
|
|
admin
Joined: Sun, Jan 19, 2003
568 Posts
|
Also take a look at "detail components"... see the revit help files
http://revit.autodesk.com/Documents.asp?en-us
-----------------------------------
Hiroshi Jacobs
The Catholic University of America |
This user is offline |
View Website
|
|
|
active
Joined: Thu, Jan 22, 2004
4 Posts
No Rating |
I checked out your log walls in the Gallery and they look great. It's nice to know that I can get them. The window looks good. I will have to study a little on exactly how that works when one has a LOT of windows (we do big log homes). It will probably be a couple of days (nights?) before I have a chance to work out your technique. Thanks for the guidance.
|
This user is offline |
|
|
|
active
Joined: Thu, May 13, 2004
184 Posts
|
"I checked out your log walls in the Gallery and they look great. It's nice to know that I can get them. The window looks good. I will have to study a little on exactly how that works when one has a LOT of windows (we do big log homes). It will probably be a couple of days (nights?) before I have a chance to work out your technique. Thanks for the guidance."
Hallo Bill!
Have a look at my tutorial on sculptured walls eg. log walls.
You can do more than one opening. But every opening must have a closed contour and no crossings are allowed.
Have a look at the other method I suggested - doing log walls with sweeps - and report back if you can make it function.
Still I hope there will be a TUTORIAL GALLERY with thumbnails, images and text - also the possibility to upload .pdf-files - on Revitcity so it will be easier and faster to contribute with a little tips and see ones own contribution immediatley -just like uploading an image.
Because there is a lot more in Revit that you need a little help with...
Post edited on 2005-06-13 03:39:29
|
This user is offline |
|
|
|
active
Joined: Sun, Feb 20, 2005
3 Posts
 |
Using the wall sweep method, I created an 8" three sided log profile and stacked them up on a wall type to the height wall I wanted. The profile is offset so the wall is inside the log profile. Assign a wood material. After placing the walls go to an elevation and select the wall sweeps. One can individually extend every other log out beyond the end of the actual wall to get the log corner look. Works good looks great. I uploaded a rendering of a small building in log.
|
This user is offline |
|
|
|
active
Joined: Tue, Nov 7, 2006
456 Posts
 |
I think for most of us, we would like to see a screenshot of what you are talking about or what you have done. Thanks!
-----------------------------------
Motto: "No Post left behind" |
This user is offline |
|
|
|
active
Joined: Sun, Feb 20, 2005
3 Posts
|
go to the gallery was on page two a few minutes ago. I don't have that file with me now.
|
This user is offline |
|
|
|
|
|
active
Joined: Sun, Feb 20, 2005
3 Posts
|

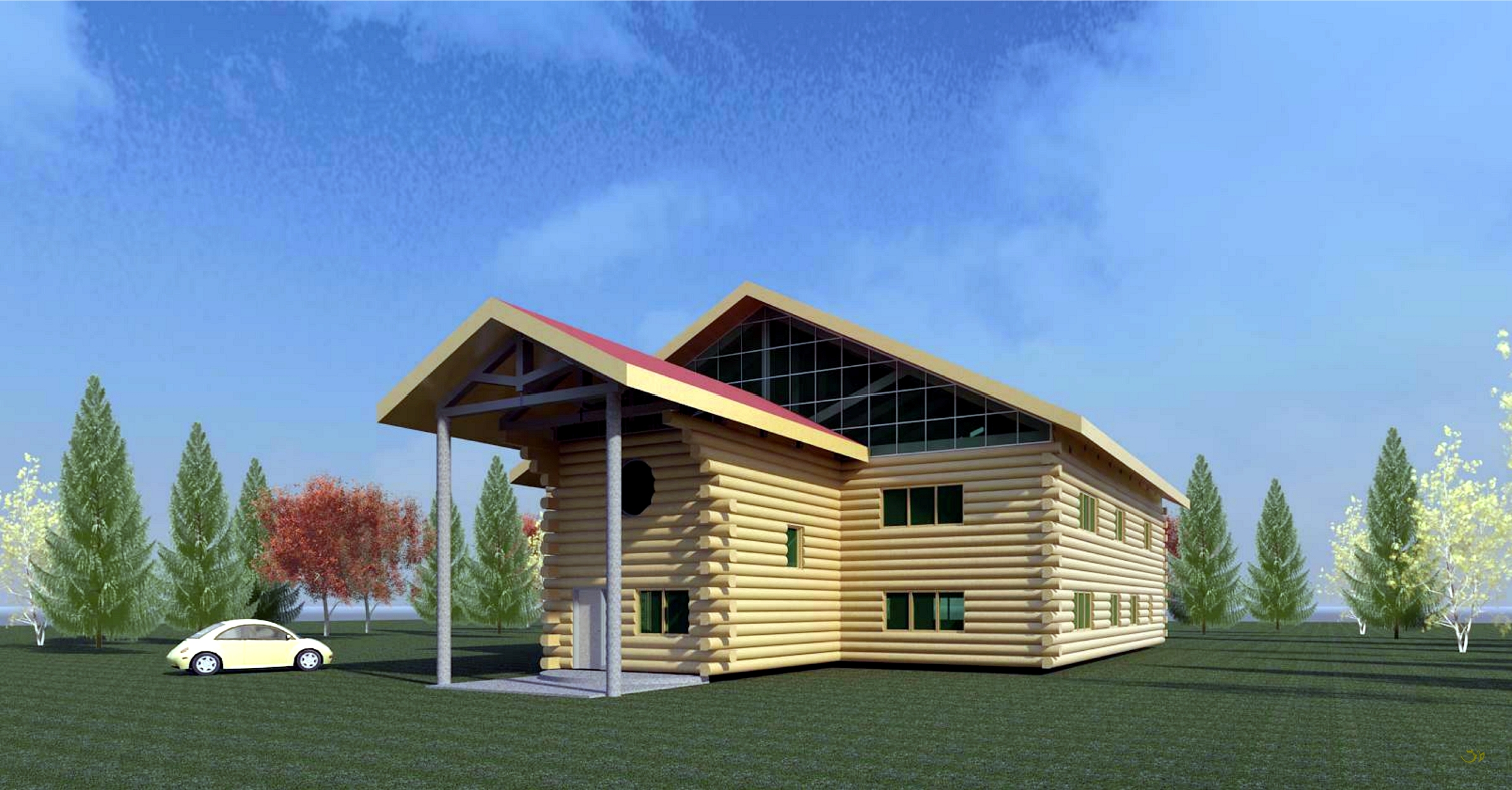

Here is a rendering of the resulting log walls
|
