Forums >> Revit Structure >> Technical Support >> quick question on legend
|
|
|
active
Joined: Wed, Aug 20, 2008
318 Posts
 |
Trying to make a wall legen with a new, existing and demo wall.

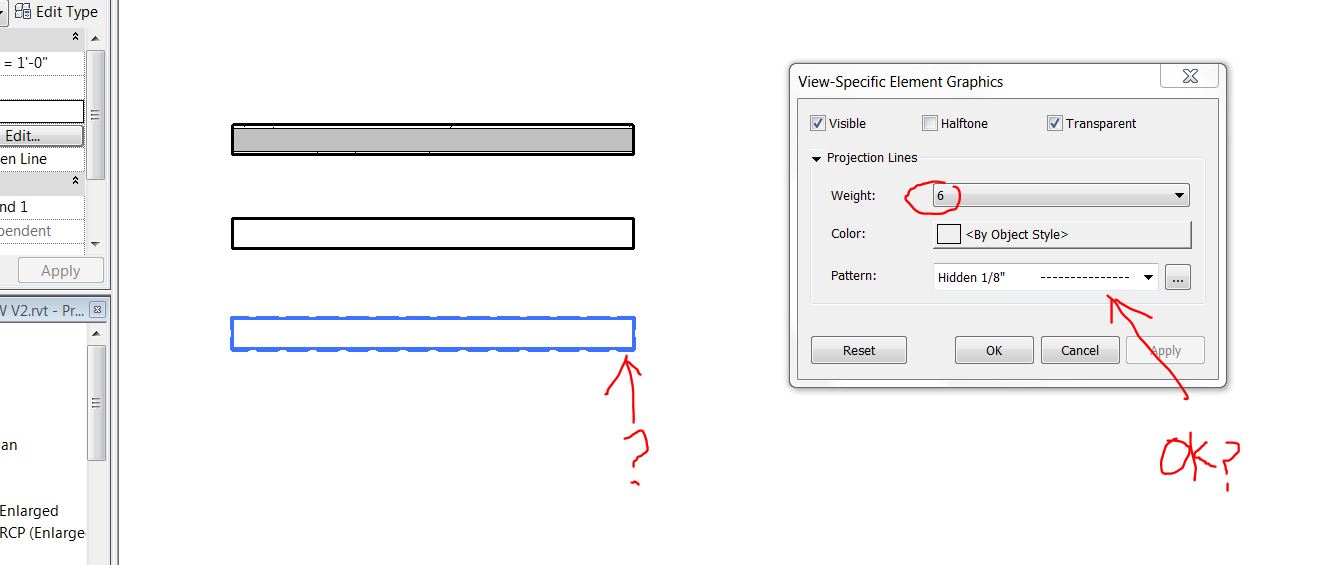

cant make the 3rd wall completely dotted. it still leaves the line so you get this dotted line over a continuous line. and I can only see the dotted when I fatten it up super wide.
can someone tell me how to make my demo wall look dotted?
Edited on: Tue, Dec 10, 2013 at 12:28:05 PM
|
This user is offline |
View Website
|
 | |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
There is no way to do this without a workaround. I would just use 2D linework.
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Finish the process and the blue goes away.
|
This user is offline |
|
|
|
active
Joined: Wed, Aug 20, 2008
318 Posts
|
Yeah, had to use the dotted line annotation.
@Hub: I did finish, just brought that window up again for the screen shot... still cant make a "demo" wall in a legend...
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Sorry - I did not realize it was a legend although I see now you had that in your topic.
Are these really legend components? I can't even get what you show.
If you have a separate legend for just that wall, then you can control it with VG and just place this legen overtop of your other legend.
|
This user is offline |
|
|
|
active
Joined: Wed, Aug 20, 2008
318 Posts
|
I placed 3 legend components (walls) then set one to coarse (and it goes to white, ive set that in the wall type styles, and phases) set one to fine (and it shows my nice detailed poche'd wall with the gray fill.) and the last I selected and right clicked to override graphics in current view, set that one to "hidden lines" but it remains solid with a hidden line sort of overlapping...so to explain: Most architects use solid walls as existing, poche'd walls as new, and dotted walls as demolitioned. but earlier post is right. cant do it, but its just as easy to draw a simple hidden line rectagle to represent the demolished wall.
-Warc.
edit: and Ill try that overlap trick. thanks!
Edited on: Wed, Dec 11, 2013 at 1:24:25 AM
|
This user is offline |
View Website
|
|
|
