Forums >> Revit Building >> Technical Support >> Face Based Family - Reference Plane Extension

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Dec 9, 2013 at 4:38:41 PM | Face Based Family - Reference Plane Extension

#1

adthompson


active

Joined: Mon, Jan 21, 2013
0 Posts
No Rating


Revit 2013

I am working on families in R2013 and have come across an issue new to me.  I have started using face based families in an attempt to simplify production.  The issue I am having is that my reference planes seem to ambigously extend, and I want to know how to control the extents.  When I try to dimension to a family the reference plane will extend beyond the family, which is not something that had happened when I was creating generic non hosted families.



I see that the reference planes have a "scope box" drop down, is that something I can use to trim the planes down?  Basically I only want the reference plane to show where the 3D model is, not beyond.  I hope this doesn't come off to confusing but if this is rediculously unclear I'll add a few screen captures.



Thanks, Andy


This user is offline



Mon, Dec 9, 2013 at 6:51:46 PM | Face Based Family - Reference Plane Extension

#2

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes

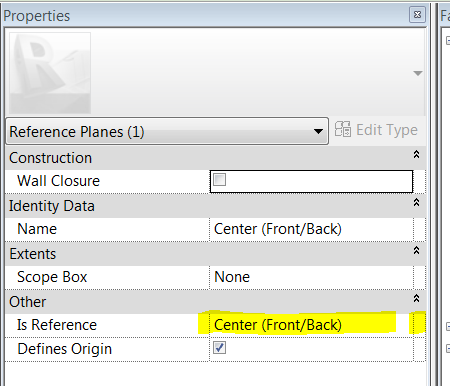

Have you tried playing with the 'Is Reference' properties of the reference plan ?





Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Mon, Dec 9, 2013 at 7:00:57 PM | Face Based Family - Reference Plane Extension

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


You may also want to try using reference 'lines' rather than 'planes'.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Tue, Dec 10, 2013 at 3:13:36 PM | Face Based Family - Reference Plane Extension

#4

adthompson


active

Joined: Mon, Jan 21, 2013
0 Posts
No Rating

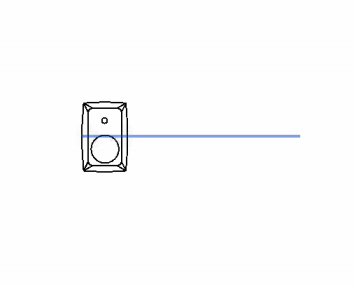

It seems to work to use lines instead, but it's not ideal, I like planes so I can dimension from any view and not have family geometry get in the way.  FYI attached is a screen capture of the issue.

Andy



Attached Images


This user is offline
