Forums >> Community >> Newbies >> Detail view problem

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Dec 5, 2013 at 4:30:51 PM | Detail view problem

#1

jahangard


active
jahangard Avatar

Joined: Sun, Jul 28, 2013
1 Posts
No Rating


hi

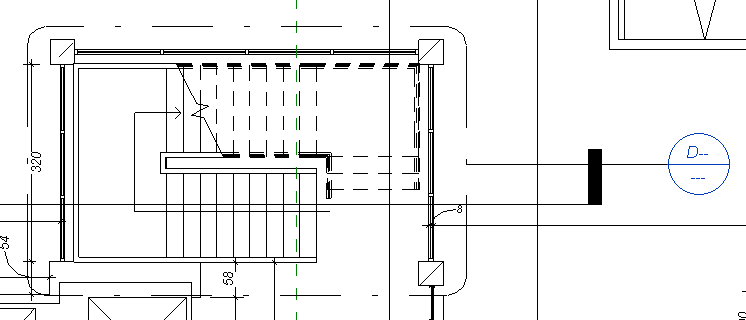

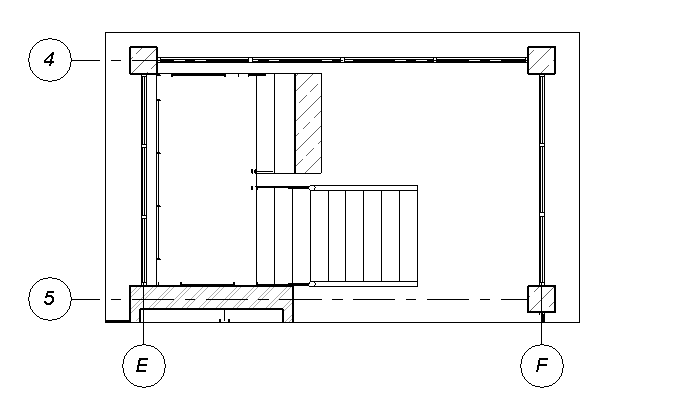

I want to creat a detail plan view in large scale from stairs to magnify details, but as u see in the screenshots when I open detail view the stairs dash line up from the cut plane would be disappeared, and the railing would cut from balusters.

how can I fix this problem? because I need to number all the treads in magnification plan.

TNX

Edited on: Thu, Dec 5, 2013 at 10:32:06 AM

Edited on: Thu, Dec 5, 2013 at 10:33:35 AM



Edited on: Thu, Dec 5, 2013 at 10:34:03 AM

Attached Images


This user is offline



Thu, Dec 5, 2013 at 6:03:58 PM | Detail view problem

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


Change the call-out to a floor plan instead of detail and see what happens.
