Forums >> Revit Systems >> Technical Support >> Void extrusion family visibility

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Nov 28, 2013 at 2:42:04 PM | Void extrusion family visibility

#1

itavarescorreia


active

Joined: Tue, Nov 27, 2012
5 Posts
No Rating


I have a family of windows into which I want to load a family with a void extrusion with a visibility parameter so that I can determine whether it cuts into the host wall or not. The idea is to have a cavity beneath the window for a radiator in some types.

For this purpose, following some suggestions from here, I created a void extrusion family that starts outside of the host and then cuts into it depending on the yes/paramenter - with a formula which controls the depth. However, while this works perfectly inside the family of the void extrusion itself, as soon as I load it into the window family and attempt to turn it off, it says that the instance is not cutting anything and asks to delete it. How can I solve this?



This user is offline



Tue, Dec 3, 2013 at 1:04:26 AM | Void extrusion family visibility

#2

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


just make another small cut which always cuts host.

http://youtu.be/R88BMsX3A5w

hope it helps.


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website

Mon, Apr 18, 2022 at 2:06:02 PM | Void extrusion family visibility

#3

hanbyjm


active

Joined: Wed, Oct 3, 2018
0 Posts
No Rating

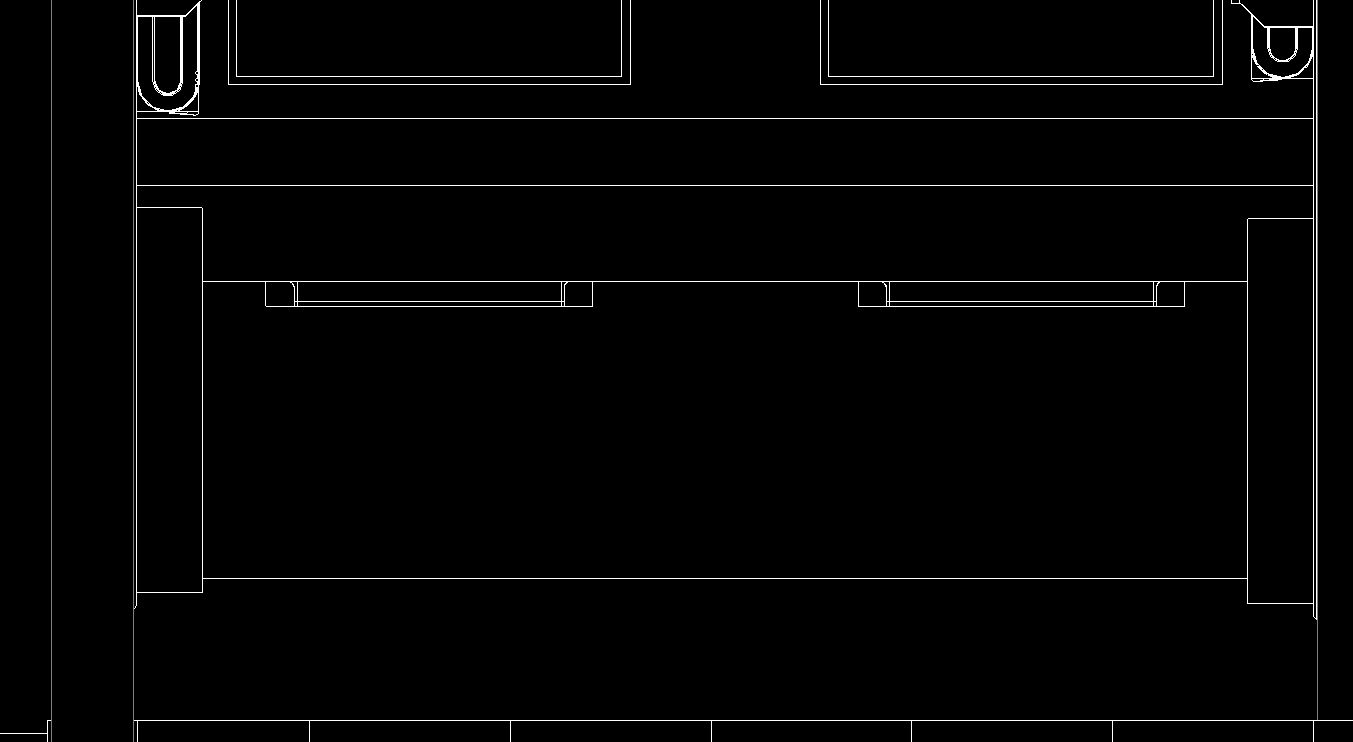

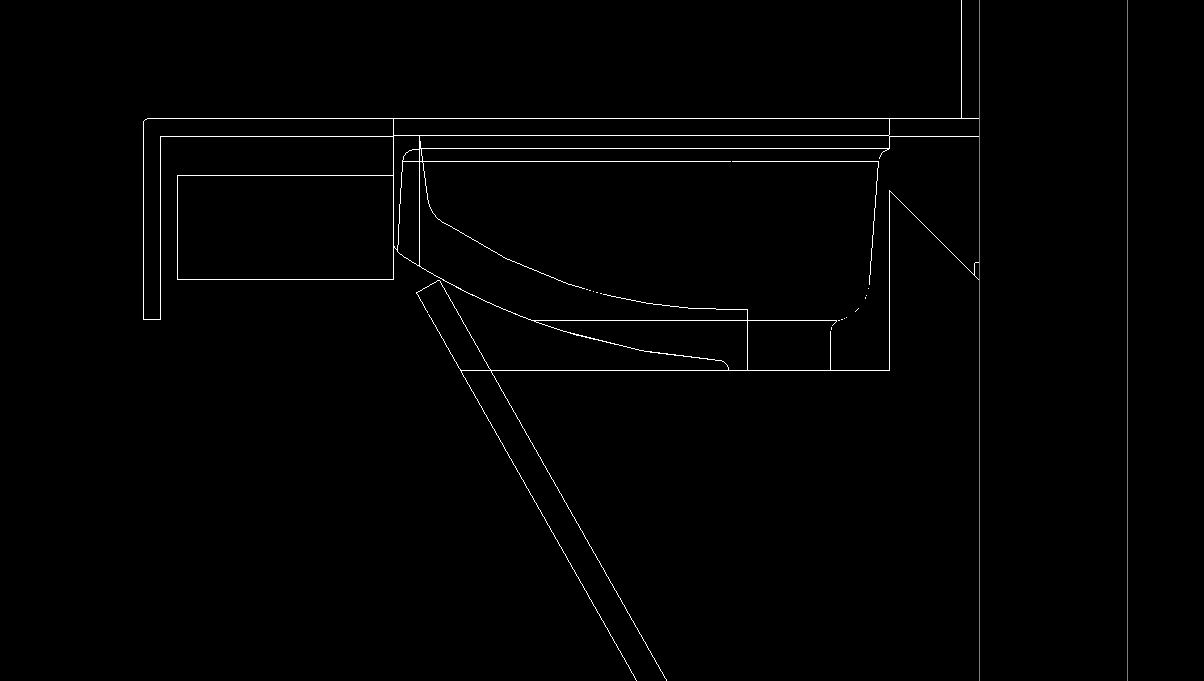

I downloaded this sink from Corian.  The void extrustion is cutting into my vanity front panel and is showing in elevation and the void is showing in section.  How can I make the void not cut the vanity and also not show in section?



This user is offline



Mon, Apr 18, 2022 at 8:30:49 PM | Void extrusion family visibility

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 376 Votes


Does this help? https://atgusa.com/revit-2021-new-feature-void-visibility-control/


This user is offline



Tue, Apr 19, 2022 at 12:15:03 PM | Void extrusion family visibility

#5

hanbyjm


active

Joined: Wed, Oct 3, 2018
0 Posts
No Rating


I read that before I posted and it didn't help.  Thanks anyway.  I ended up using masking and filled regions to fudge the sections and elevations for now until I can fix it properly.


This user is offline



Fri, Apr 22, 2022 at 12:57:52 PM | Void extrusion family visibility

#6

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4.5 Stars: 9 Votes


If it is just a simple rectangular void extrusion there is no need to make it a separate family. If you make it in the window family itself using reference planes to control its lenght and height and then assign a yes/no parameter to the 'cuts geometry' attribute it will work.

Then as long as you have the void always be intersecting the wall/host you will not get the error msg.
