Forums >> Revit Building >> Technical Support >> Sweep of faucet from wall plane

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Nov 12, 2013 at 12:17:55 PM | Sweep of faucet from wall plane

#1

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes

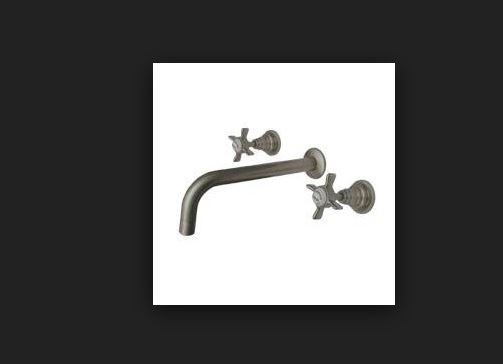

I want to make a faucet that comes out of the wall. so im making a wall based family. but how do I define a sweep line such that it comes out from the wall and turns down to pour into a basin. ie. sweeping a circle to make one trun down. cant seem to get a side view to draw the path line down to face the basin...does this make sense?

like this



Edited on: Tue, Nov 12, 2013 at 12:18:12 PM

Attached Images


This user is offline

View Website

Tue, Nov 12, 2013 at 12:23:26 PM | Sweep of faucet from wall plane

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Go to a left side view and draw your path then go to a front view and draw your circle foe the faucent side.


This user is offline

View Website

Tue, Nov 12, 2013 at 12:45:45 PM | Sweep of faucet from wall plane

#3

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes


Exactly. but I go to the left side and I cant get a drawing plane to draw the line on :-(


This user is offline

View Website

Tue, Nov 12, 2013 at 12:58:13 PM | Sweep of faucet from wall plane

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Set your workplane to be that view.


This user is offline

View Website

Tue, Nov 12, 2013 at 2:28:44 PM | Sweep of faucet from wall plane

#5

CDWdavid


active

Joined: Mon, Aug 4, 2008
153 Posts
5 Stars: 5 Votes


Try to download a wall bracket for railing, they are the same.


This user is offline
