Forums >> Community >> Newbies >> Modeling Exterior Wall Panel

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Nov 11, 2013 at 9:29:52 PM | Modeling Exterior Wall Panel

#1

cortozld


active

Joined: Fri, Sep 4, 2009
1 Posts
No Rating

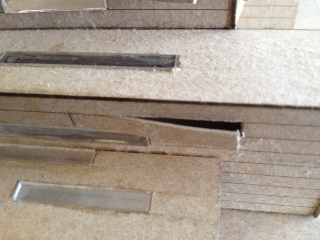

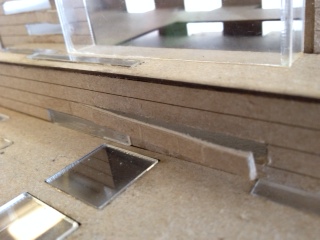

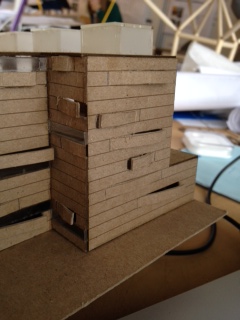

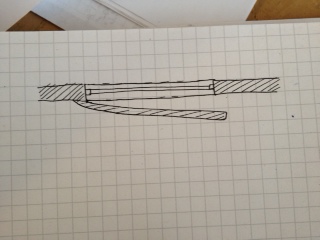

I'm not sure if this is the correct area for this question, but here it goes (please direct me to the right place if I am in the wrong area).  I am an architecture student and am trying to model a panel for the exterior of the building.  The attached images show three model shots of the idea and a plan drawing of what I am trying to do.  The panel ideally is suppose to look like it has been peeled away from the building of the facade.  "Underneath" the panel is a window.

Ideally, the panel would be parametric but I would be okay making 2-3 different versions at different lengths.  I have tried making a custom curtain panel to do this but I failed miserably.  Since I am a student, it doesn't necessarily need to be 100% resolved.  Any advice would be great!



Edited on: Mon, Nov 11, 2013 at 3:31:50 PM

Attached Images


This user is offline



Tue, Nov 12, 2013 at 1:20:00 PM | Modeling Exterior Wall Panel

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Couldn't you just draw a wall at an angle the height and length that you want it at?


This user is offline

View Website
