Forums >> Community >> The Studio >> Oval Dome

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Feb 15, 2006 at 8:26:52 PM | Oval Dome

#1

jamthumps


active

Joined: Fri, Sep 2, 2005
10 Posts
No Rating


Does anyone have an idea on how I can pill this off. I tried some massing excercise, and family exercises and can not pull it off. I tried bringing it in from sketch up and it is facetted and don't want it to look confusing as to what it is in my drawings.I would appreciate any help because my deadline is getting neare and I have not been successful. Here is jpeg of what ilooks like in sketch up.

Attached Images


This user is offline

View Website

Thu, Feb 16, 2006 at 6:54:27 PM | RE: Oval Dome

#2

quiller


active
quiller Avatar

Joined: Fri, Oct 17, 2003
171 Posts
2.5 Stars: 3 Votes


Follow the attached instructions and you should be drawing dome like a pro!

Attached Files

This user is offline



Thu, Feb 16, 2006 at 6:59:06 PM | RE: Oval Dome

#3

jamthumps


active

Joined: Fri, Sep 2, 2005
10 Posts
No Rating


Thanks. I will give it a shot

This user is offline

View Website

Thu, Feb 16, 2006 at 7:01:58 PM | RE: Oval Dome

#4

jamthumps


active

Joined: Fri, Sep 2, 2005
10 Posts
No Rating


Thanks for the tutorial but I could already can do that. I need it to be an oval not a circle. That is where I get stuck. Any ideas.

This user is offline

View Website

Fri, Feb 17, 2006 at 1:52:43 AM | RE: Oval Dome

#5

dvsone78


active

Joined: Thu, Nov 17, 2005
19 Posts
No Rating


Here is a start of one i dont have a bunch of time to make this work compleetly for you but you get the idea from it its a sweep you may have to fill the open part with another object or make it in two halfs.

Attached Files

This user is offline



Fri, Nov 13, 2009 at 7:27:46 PM | Oval Dome

#6

jdivina


active

Joined: Fri, Sep 12, 2008
59 Posts
No Rating


hi im wondering if you guys ended up finding out how to do the oval dome.

i tried myself.

with using your example and it still doesnt seem to work.




-----------------------------------
JD

This user is offline

View Website

Fri, Nov 13, 2009 at 7:35:17 PM | Oval Dome

#7

TKennedy


active

Joined: Wed, Oct 7, 2009
654 Posts
4 Stars: 7 Votes


Try a revolve with the profile sketched in an elevation

This user is offline



Sat, Nov 14, 2009 at 2:27:41 AM | Oval Dome

#8

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

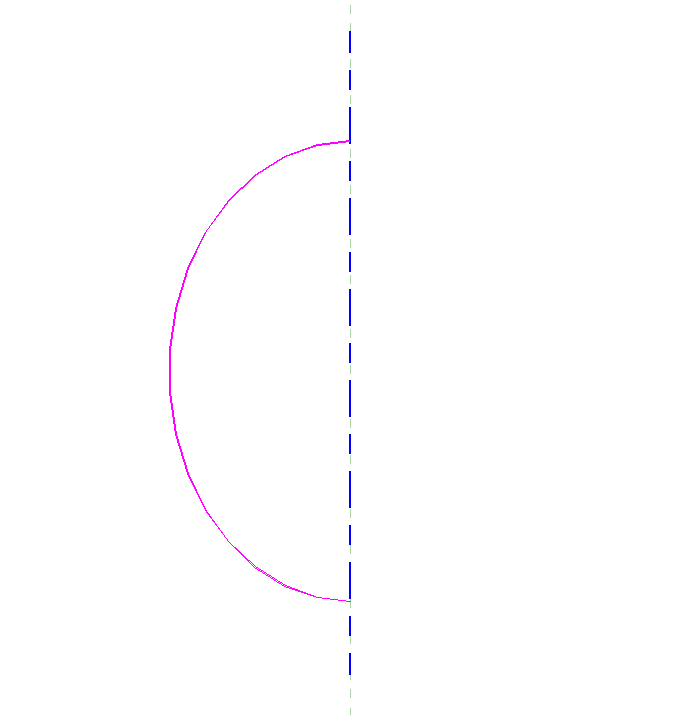

Yes, create a Solid Revolve (of a semi-oval), not in elevation but in a plan view, make sure to change the end angle from 360° to 180°. Then create a solid void to control the height of the oval.....see images....

Attached Images

68834_2009-11-132015.png68834_2009-11-132016.png68834_2009-11-132001.png68834_2009-11-132009.png

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sat, Nov 14, 2009 at 11:22:27 AM | Oval Dome

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


OR you can create that completly parametric...

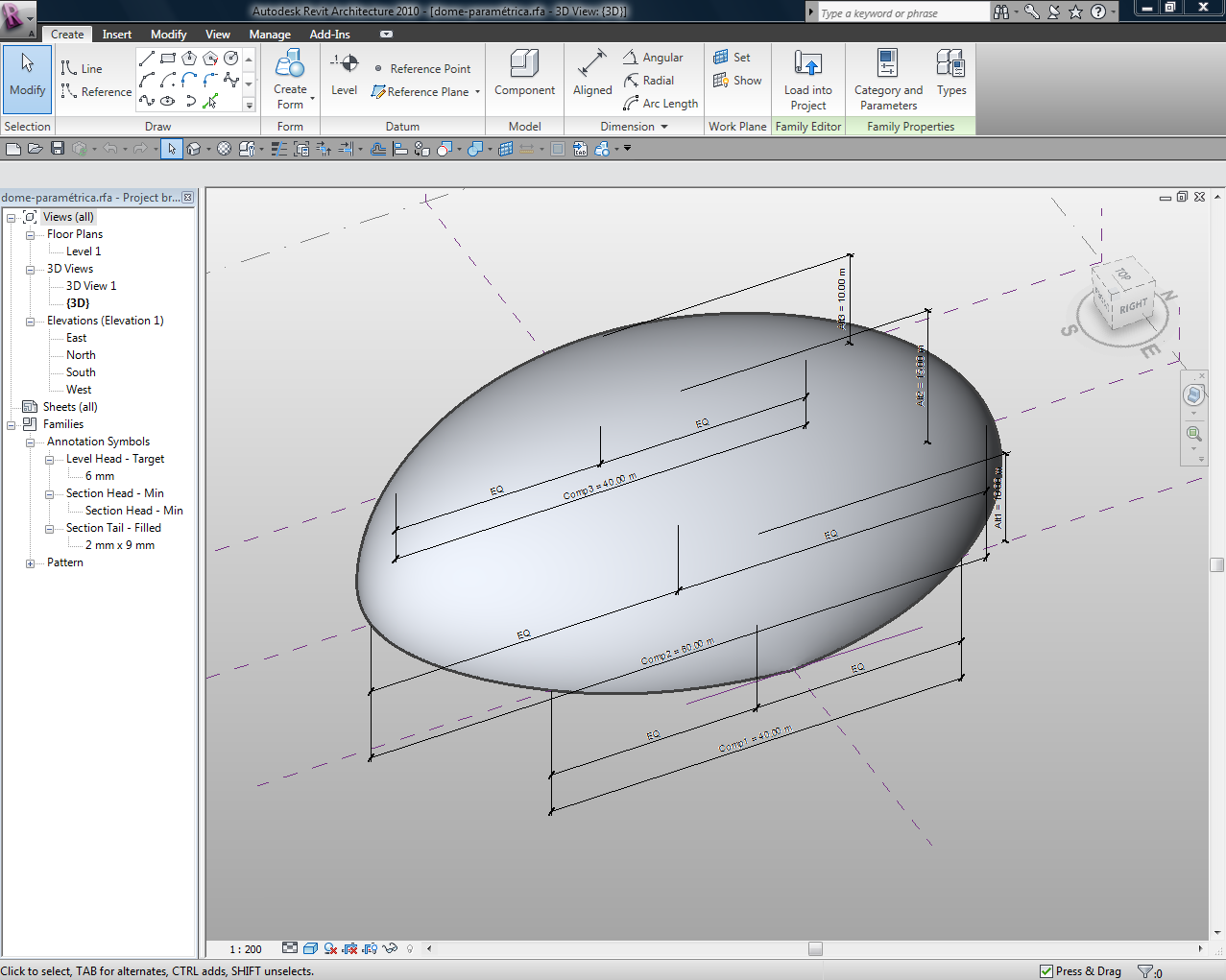

See this video: http://www.youtube.com/watch?v=8N1wI5u7Kes&feature=player_embedded







Edited on: Sat, Nov 14, 2009 at 6:37:21 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Nov 25, 2009 at 3:43:09 PM | Oval Dome

#10

AllenBall


active
AllenBall Avatar

Joined: Mon, Feb 18, 2008
197 Posts
4 Stars: 9 Votes


nice typ!

-----------------------------------

J. Allen Ball

Revit Architecture 2010 Certified Professional

This user is offline



Fri, Nov 27, 2009 at 4:48:44 PM | Oval Dome

#11

jdivina


active

Joined: Fri, Sep 12, 2008
59 Posts
No Rating


Erland....when making the solid void which option do u use when trying to control the height. ive been using just the regular extrusion and it makes it look like a saddle. and ive tried using the revolve. but that just doesn't work right.




-----------------------------------
JD

This user is offline

View Website
