Wed, Oct 9, 2013 at 11:22:36 AM | Residential Roofs

#1

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating


Okay, so I have been trying to figure out how to connect a roof with a top plate of 12'-0" to another roof at 14'-0".  If I make them as two seperate roofs and then join them, I get an error "target will miss".  I just want to create an uniform roof, please help.


This user is offline



Wed, Oct 9, 2013 at 12:06:32 PM | Residential Roofs

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes

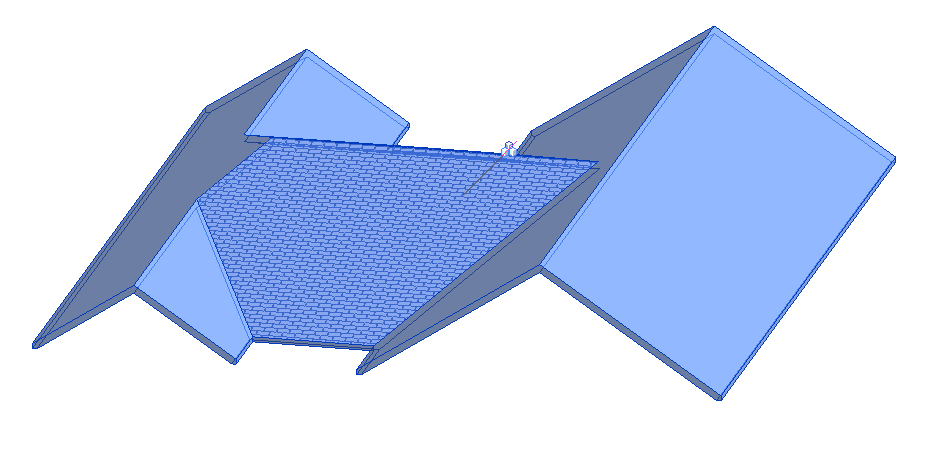

Did you know that in your sketch, you can set the elevation of the lines that define your roof?  In most cases, I like my roof as one element.  The attched is one roof.



Attached Images


This user is offline



Wed, Oct 9, 2013 at 12:06:40 PM | Residential Roofs

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


You need to show an image of what you re trying to accomplish as there are way to may roof options that you could be doing.  If you get an error saying that the roofs will miss its because they don't intersect eachother.


This user is offline

View Website

Wed, Oct 9, 2013 at 1:38:28 PM | Residential Roofs

#4

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating

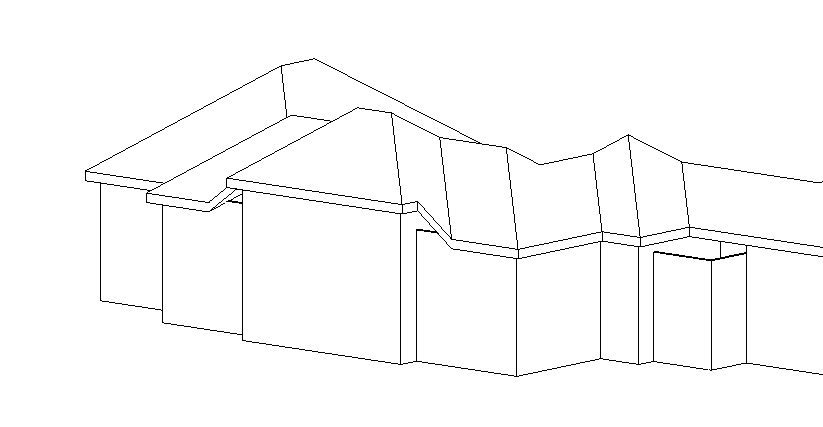

So I changed the elevations on the eaves and it makes this.  I want the lower eave to die into the wall.  How would I do this?



Attached Images


This user is offline



Wed, Oct 9, 2013 at 2:05:38 PM | Residential Roofs

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You can not get one roof area to go under another roof area using one roof.  That raised roof may have to be seperate.  do that then paste a new image.


This user is offline



Wed, Oct 9, 2013 at 2:31:34 PM | Residential Roofs

#6

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating

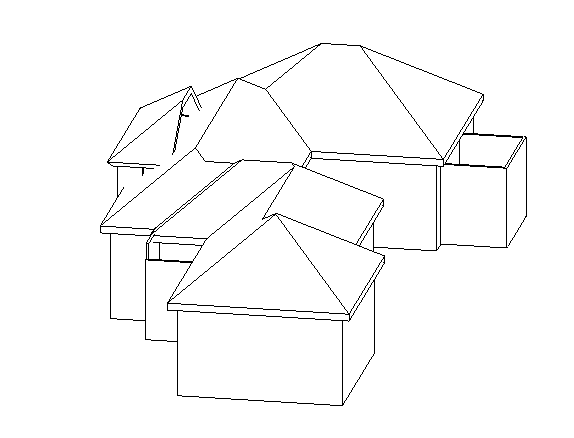

Okay so here is placing the roofs seperately.



Attached Images


This user is offline



Wed, Oct 9, 2013 at 2:35:47 PM | Residential Roofs

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Not the same view - we can't see the roof eave change.



A roof that extends over another roof will not automatically extend which you may have thought it would do under join geometry!  You have to sketch that extension.  I typicall sketch the roof so it is full to begin with running through the other roof.  Then from a roof plan, I add reference planes along where the roofs would join and edit both sqetches back to that point.


This user is offline



Wed, Oct 9, 2013 at 2:37:59 PM | Residential Roofs

#8

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating


A better image...



This user is offline



Thu, Oct 10, 2013 at 7:32:34 AM | Residential Roofs

#9

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Revit will not automatically join those to roofs you will need to do this.  As WWHub said you have to sketch that extension running through the other roof.  Then you can add reference planes and edit both roofs to follow those points.


This user is offline

View Website

Thu, Oct 10, 2013 at 7:49:34 AM | Residential Roofs

#10

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating


I am not sure I am following you guys, could you post an image or step by step?  Thanks


This user is offline



Thu, Oct 10, 2013 at 9:14:51 AM | Residential Roofs

#11

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


See the attached file.  You will draw on roof and then the other. Pull your higher roof through your lower one and join them, you will see the valley lines.  When you see the valey lines you can edit your sketch to follow these lines.



Attached Files

This user is offline

View Website

Thu, Oct 10, 2013 at 11:19:05 AM | Residential Roofs

#12

jcd390


active

Joined: Fri, May 27, 2011
6 Posts
No Rating


Thats it!  Thanks guys I appreciate your help and time.
