Forums >> Revit Building >> Technical Support >> Wall Build-up displaying incorrectly

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Sep 25, 2013 at 12:17:11 PM | Wall Build-up displaying incorrectly

#1

SimonBea


active

Joined: Sat, Oct 24, 2009
11 Posts
No Rating


I have just noticed two instances in our model where wall build-ups have gone a stray.

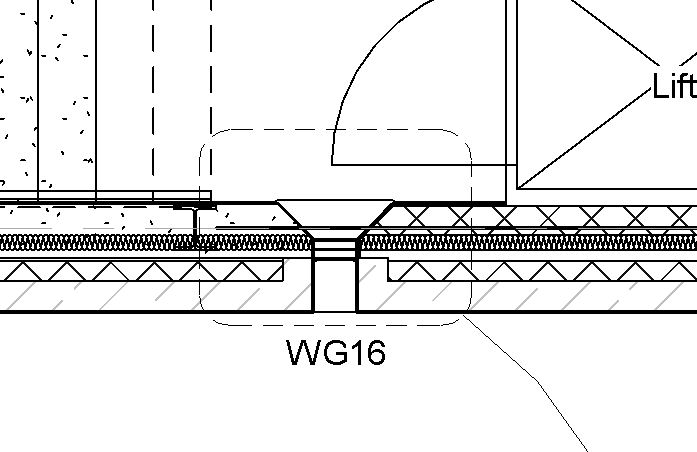

In the attached image WG16 is a window placed in the external wall. This wall is one continuous wall running across the image. The wall build-up to the right of the window is displaying correctly. However to the left you can see that for some reason the inner leaf has changed to display as a concrete type hatch.

Second attachment shows intended wall construction

I really can't work this one out, it is all the same wall so don't see how this can be controlled. If I delete the window the whole wall changes to the incorrect build-up. If I throw a section through the wall it shows correctly.

There is another instance of this similar thing happening in the model but vertically as well.

Any ideas?



Thanks



Edited on: Wed, Sep 25, 2013 at 7:18:30 AM

Attached Images


This user is offline



Wed, Sep 25, 2013 at 1:39:49 PM | Wall Build-up displaying incorrectly

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 356 Votes


Hide the wall on the left and see what's left.  I don't believe this is your wall.
