Forums >> Revit Structure >> Technical Support >> Help with connecting stair to floor

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 23, 2013 at 10:41:30 AM | Help with connecting stair to floor

#1

sblake


active

Joined: Tue, Jan 24, 2012
38 Posts
No Rating


I need to connect this concrete stair to our concrete floor. How can I do this?

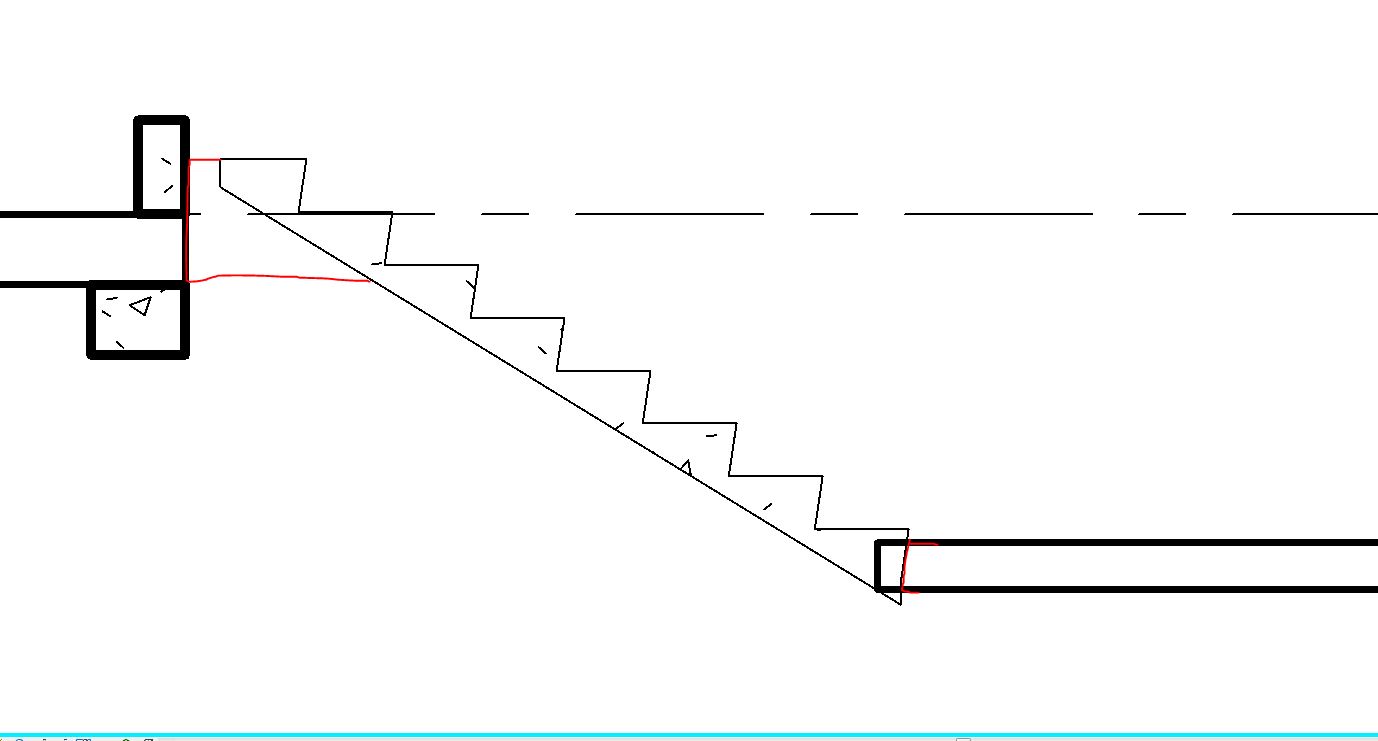

I have attached a screenshot below



Attached Images


This user is offline



Mon, Sep 23, 2013 at 11:33:43 AM | Help with connecting stair to floor

#2

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


Looks like you need to move the stair to the left ?


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Mon, Sep 23, 2013 at 11:42:56 AM | Help with connecting stair to floor

#3

sblake


active

Joined: Tue, Jan 24, 2012
38 Posts
No Rating


We have lined up with the architectural plan, which is where the engineer wants it. We just need to connect it. I just don't know how to do that in Revit? Extrusion, model in place, etc. I need some major help with this kind of thing.


This user is offline



Mon, Sep 23, 2013 at 11:51:48 AM | Help with connecting stair to floor

#4

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


Create an In-Place Extrusion to attach the top and use an In-Place Void Extrusion to take away the bottom portion.



The Start and End of both extrusions is the two sides of the stairs.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Mon, Sep 23, 2013 at 12:02:56 PM | Help with connecting stair to floor

#5

sblake


active

Joined: Tue, Jan 24, 2012
38 Posts
No Rating


Can you point me in a direction with a little more info? I tried an extrusion, but like I said, that is my weakpoint with Revit. I need some guidance with modeling in place. If you know of a good website, tutorial, that would be great!


This user is offline



Mon, Sep 23, 2013 at 12:41:03 PM | Help with connecting stair to floor

#6

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


Searching on this page below for the word 'place' seems to turn up s few tutorials on in-place families.



http://cadclips.com/Search.aspx






-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Mon, Sep 23, 2013 at 2:57:55 PM | Help with connecting stair to floor

#7

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Read the Revit families guide.  It will give you information on how to create families and since a model in place element is essentialy a family it will apply to your in-place extrusions and voids.



http://usa.autodesk.com/adsk/servlet/index?siteID=123112&id=13080413&linkID=9243097


This user is offline

View Website
