Tue, Sep 17, 2013 at 8:05:41 PM | Removing Overlapping Electrical Wire

#1

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


Hi,

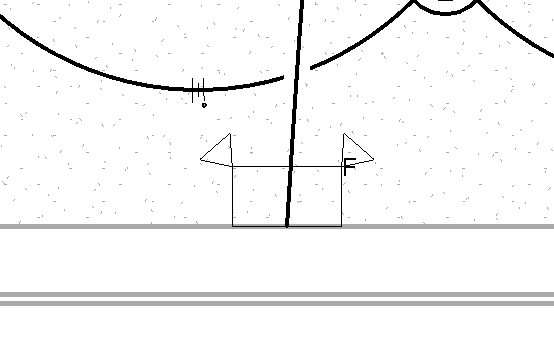

I'm working on the floor plan symbols of some electrical device families.  I want the electrical wire line to stop at the the boundary of the electrical device, not go right through it.  Can anyone show me how to do this?



Thanks!



Attached Images


This user is offline



Wed, Sep 18, 2013 at 12:27:08 PM | Removing Overlapping Electrical Wire

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


Is there a connecter at the back of the device that the line is connecting to? Without seeing the actual family I would say the only way would be to edit the family.  You could also try adding a wipeout to the family since it looks like everything is showing through it, even the floor fill pattern, unless your view is set to wireframe by accident.
