Mon, Sep 16, 2013 at 6:21:53 PM | Curtain wall profile edit

#1

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating


Hi,



I'm tyring to edit the profile of a crutain wall so that it aligns with an adjacent wall.  The only problem, is that the curtainwall keeps embedding itself in the wall instead of aligning with it.



I've attached a screen shot.



Any ideas on what this might be?



Thanks



This user is offline



Mon, Sep 16, 2013 at 6:45:01 PM | Curtain wall profile edit

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


Your images don't tell us much.  You should be working in a plan view and disjoin the wall to move it.



Edited on: Mon, Sep 16, 2013 at 1:49:00 PM

This user is offline



Mon, Sep 16, 2013 at 10:03:08 PM | Curtain wall profile edit

#3

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating


I tried editing the wall in plan view as well but couldn't get it to align properly.



I attached 3D views because I thought they would show the overall context better.

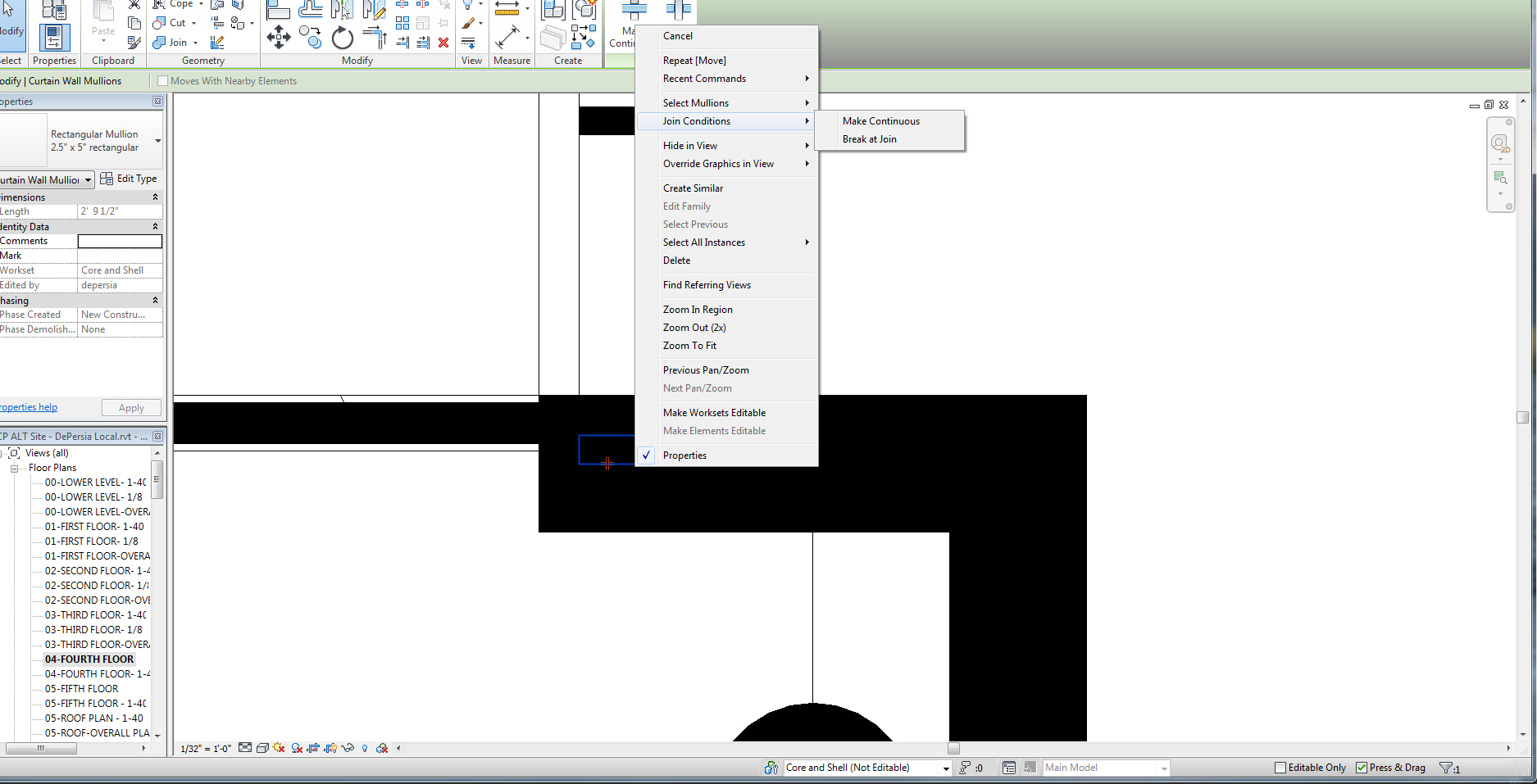

Here is the plan view though.  You can see where the mullion that is embedded in the wall is highlighted blue. I can't seem to disjoin the mullion or move it.



Attached Images


This user is offline



Mon, Sep 16, 2013 at 10:15:36 PM | Curtain wall profile edit

#4

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating

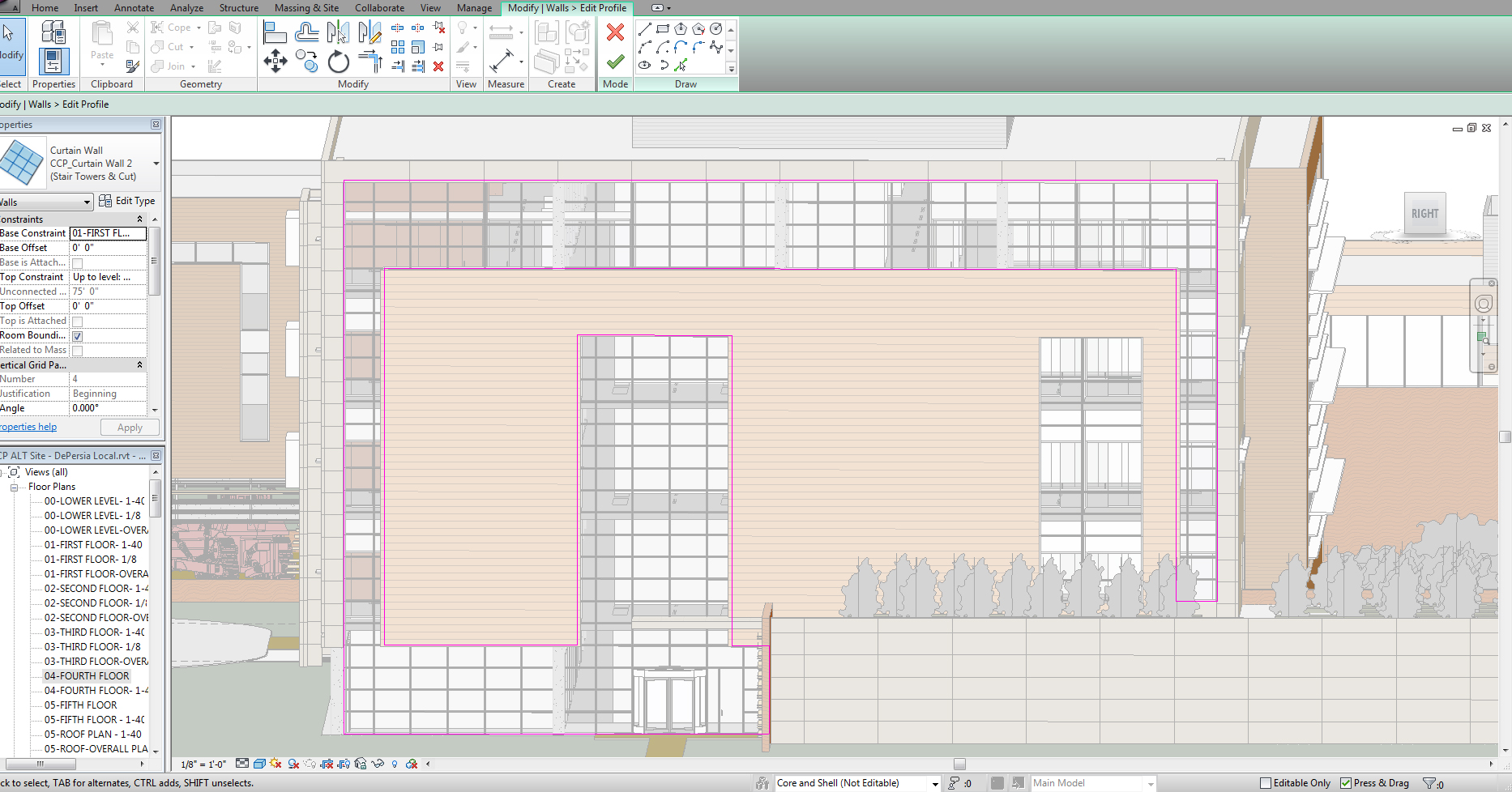

Here is another 3d View, almost an elevation, that shows the overall profile of the curtain wall I'm trying to edit.



I wasn't sure if the abnormal shape of the overall wall might have some impact on this problem.



Attached Images


This user is offline



Tue, Sep 17, 2013 at 1:21:28 PM | Curtain wall profile edit

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


I obviously misread your initial post thinking you were moving the wall.

First - when you edit profile, only work in elevation views.

This is a very complex shape for a CW profile edit.  I probably would have broken this up into multiple sections.

Did you turn off wall joins for this CW?


This user is offline



Tue, Sep 17, 2013 at 8:49:47 PM | Curtain wall profile edit

#6

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating


Yes,  I disallowed wall joining.



I wanted to do it with one curtainwall because of the way the mullion patterns would lay out.  I didn't want to have a condition where to boarder mullions came up against each other.


This user is offline



Tue, Sep 17, 2013 at 8:56:40 PM | Curtain wall profile edit

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


You do not have to place mullions on every border.  So when I have a condition like this, I just drop the mullions on the adjoing CW.


This user is offline



Thu, Sep 19, 2013 at 4:40:01 PM | Curtain wall profile edit

#8

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating


Okay,



Do you think the profile of the wall is simple too complex ?  It would be nice to keep it as one element if possible.





Thanks for your help though. I will try breaking it down into smaller wall sections.


This user is offline
